78230 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) PULLEYS & IDLER ARM ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

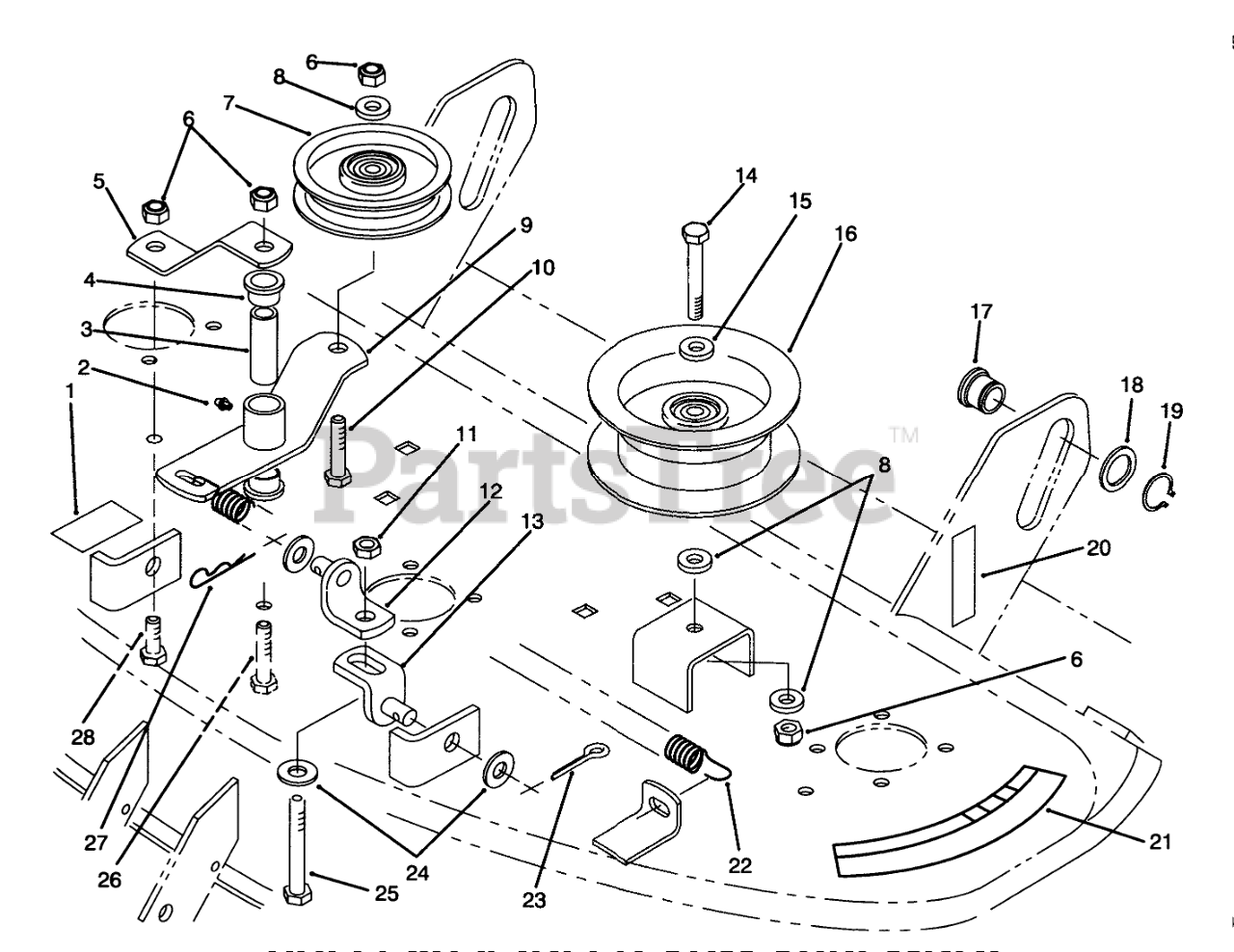

PULLEYS & IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 116286

DECAL-BELT INSTALL

$8.99

$

Usually ships in 3-6 days

0

2

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

3

Toro 79-2760

SPACER

$8.99

$

Usually ships in 3-6 days

0

4

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

5

Toro 78-3140

Strap-Brace
(Superseded to 78-3140-03)

$19.99

$

Usually ships in 3-6 days

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$38.99

$

In Stock, only 1 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 78-3150

Arm-Idler
(Superseded to 98-9006)

$135.99

$

Usually ships in 3-6 days

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

12

Toro 86-9250

BRACKET-LIFT, UPPER

$83.99

$

In Stock, only 1 left!

0

13

Toro 86-9240

BRACKET-LIFT, LOWER

$99.99

$

In Stock, only 4 left!

0

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

16

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$117.99

$

In Stock, only 1 left!

0

17

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

18

Toro 920239

Washer
(Superseded to 9202394)

$2.49

$

Usually ships in 3-6 days

0

19

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

20

Toro 115196

Decal-Attach-A-Matic
(Superseded to 93-0322)

$4.99

$

Usually ships in 3-6 days

0

21

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

22

Toro 116172

SPRING - EXTENSION

$43.99

$

Usually ships in 3-6 days

0

23

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
