78230 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) GAGE WHEEL & ROLLER ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

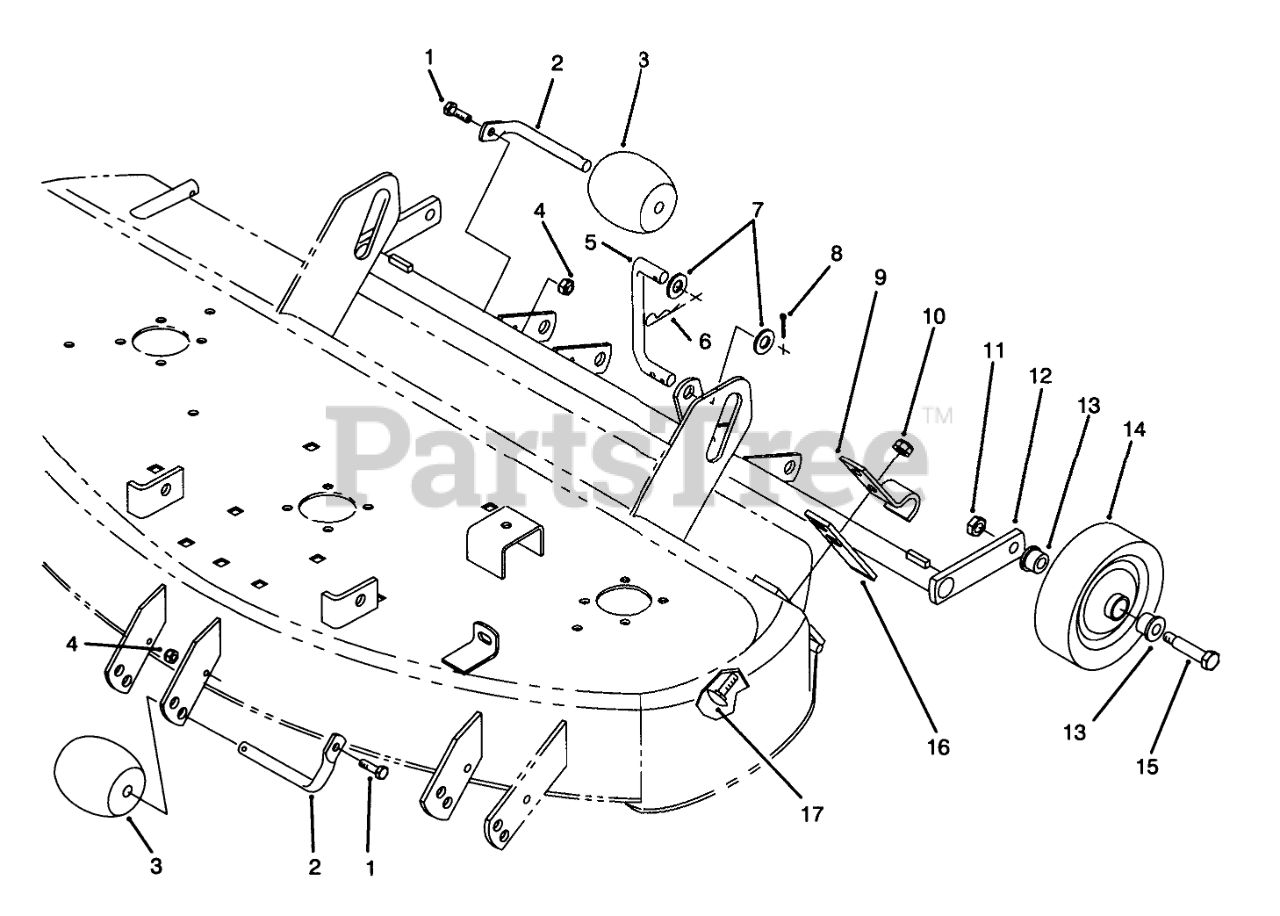

GAGE WHEEL & ROLLER ASSEMBLY Parts Diagram

  • Title

1

Toro 908004

Bolt
(Superseded to 321-5)

$0.99

$

In Stock, Qty 20+

0

2

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

3

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

5

Toro 78-6681

LINK-REAR

$

$

Not available

6

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

9

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

11

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

12

Toro 78-6661

Gage Wheel Support W.A.
(Superseded to 78-6661-01)

$

$

Not available

13

Toro 5306

BEARING

$4.49

$

Usually ships in 3-6 days

0

14

Toro 110506

Assembly-Wheel (Incl. Ref. #13)

$42.99

$

In Stock, only 2 left!

0

15

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

16

Toro 110838

Bar
(Superseded to 110838-03)

$

$

Not available

17

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0
