78230 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

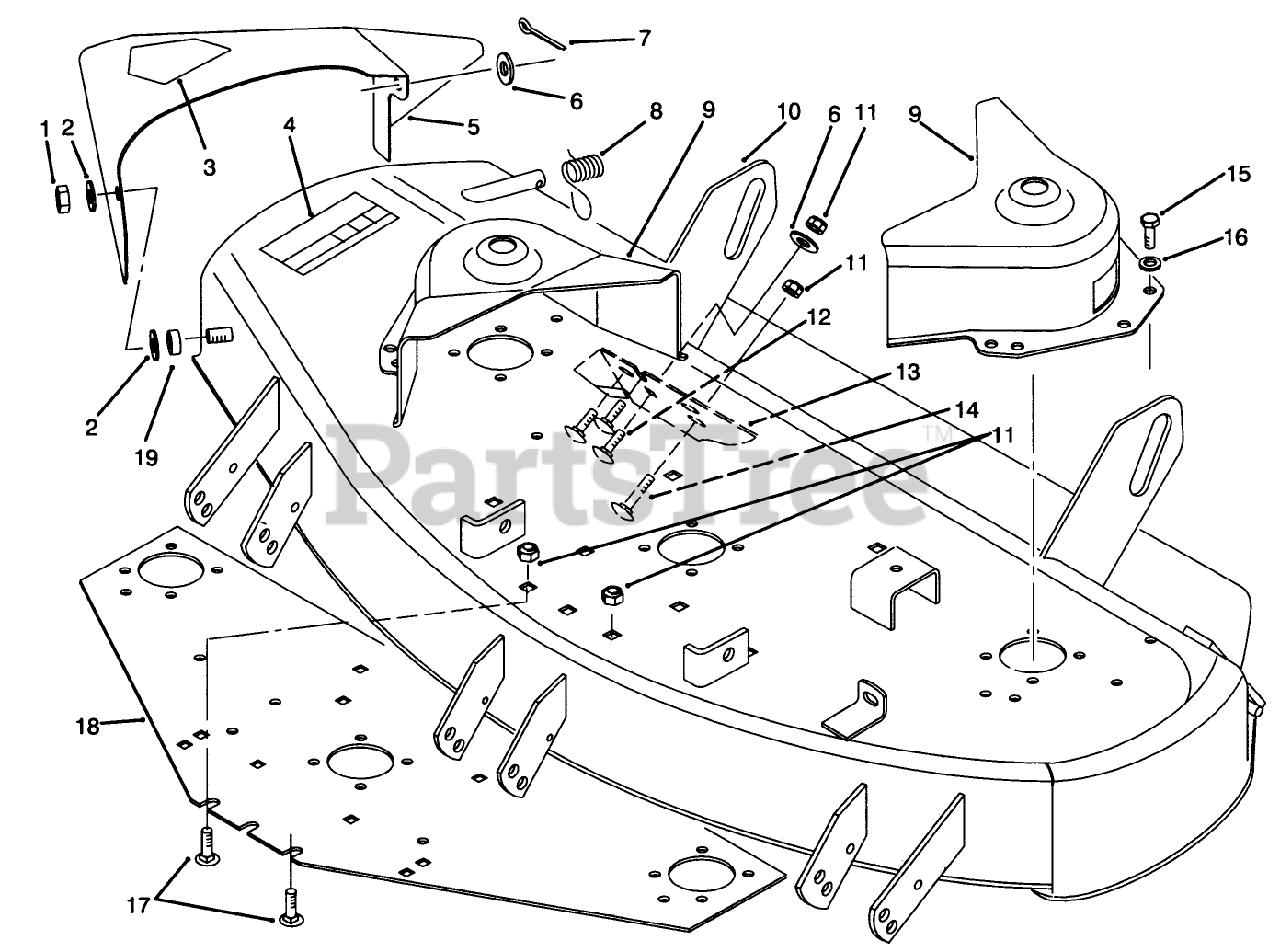

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

2

Toro 116083

Washer
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

3

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

4

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

5

Toro 88-2750

Chute/Decal Assembly
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 116082

Spring
(Superseded to 93-1631)

$30.99

$

Usually ships in 3-6 days

0

9

Toro 78-6891

COVER-BELT

$156.99

$

Usually ships in 3-6 days

0

10

Toro 92-8014

Deck/Safety Decal Assy.
(Superseded to 98-1797)

$

$

Not available

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 79-2831

Plate-Wear
(Superseded to 79-2831-03)

$

$

Not available

14

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

15

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 78-8530

Plate-Deck
(Superseded to 78-8530-03)

$

$

Not available

19

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0
