78225 - Toro 38" Recycler Mower Deck for 260 Series Tractors (SN: 049000001 - 049999999) (1994) COVER ASSEMBLY Parts Diagram

38" Recycler Mower Deck for 260 Series Tractors

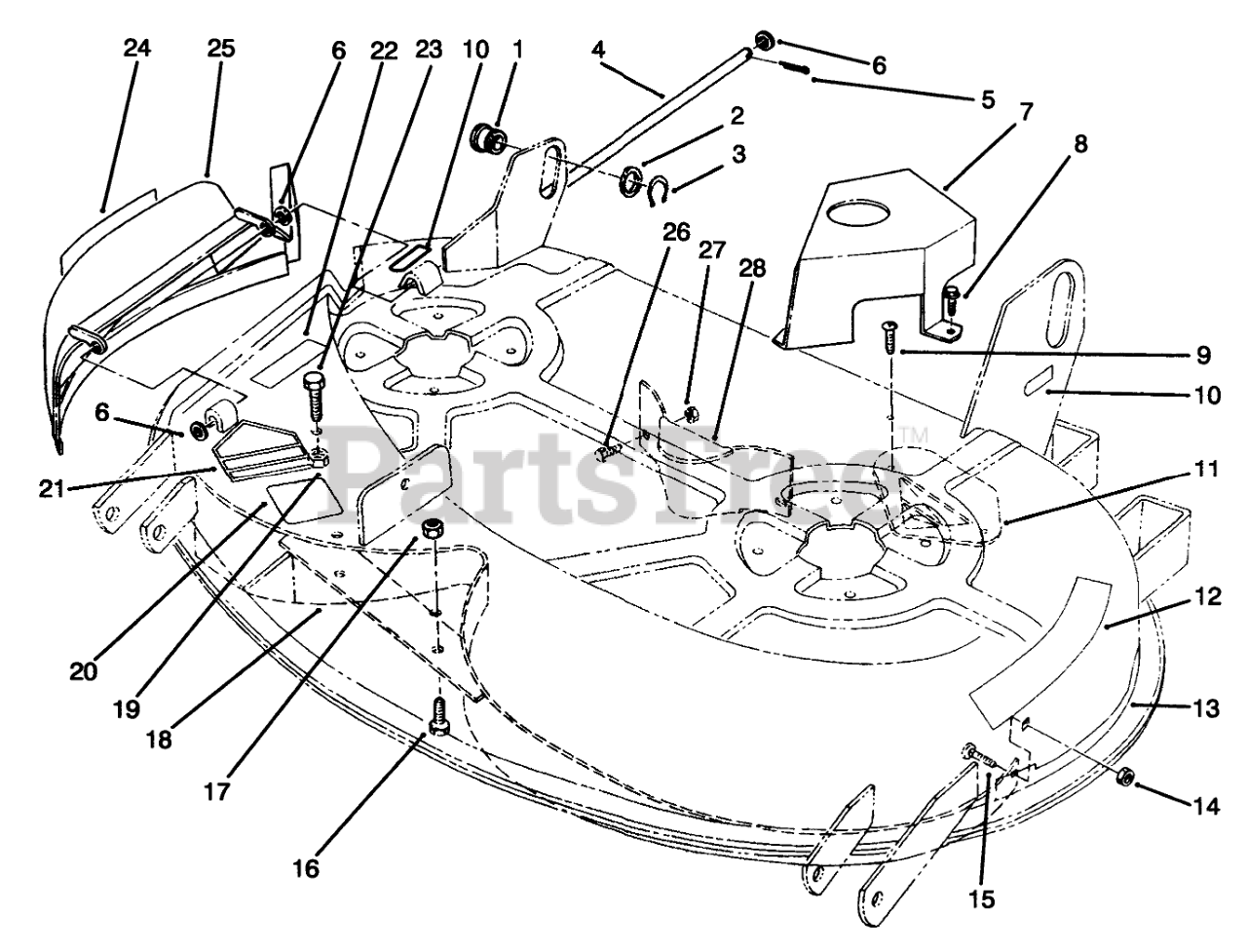

COVER ASSEMBLY Parts Diagram

  • Title
1

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

2

Toro 9202394

WASHER

$2.99

$

Usually ships in 3-6 days

0

3

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

4

$

$

Not available

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 78-6840

Cover-Belt
(Superseded to 78-6840-03)

$66.99

$

In Stock, only 1 left!

0

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 115196

Decal-Attach-A-Matic
(Superseded to 93-0322)

$

$

Not available

11

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

12

Toro 79-3140

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

13

Toro 92-9520

DECAL-RECYCLER DECK 38"

$49.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$109.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

21

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

22

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

23

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

24

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

25

Toro 92-5787

Recycler Chute/Decal Assy. (Incl. Ref. #24)

$

$

Not available

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

28

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$69.99

$

Usually ships in 3-6 days

0
