78225 - Toro 38" Recycler Mower Deck for 260 Series Tractors (SN: 039000001 - 039999999) (1993) CUTTING UNIT ASSEMBLY Parts Diagram

38" Recycler Mower Deck for 260 Series Tractors

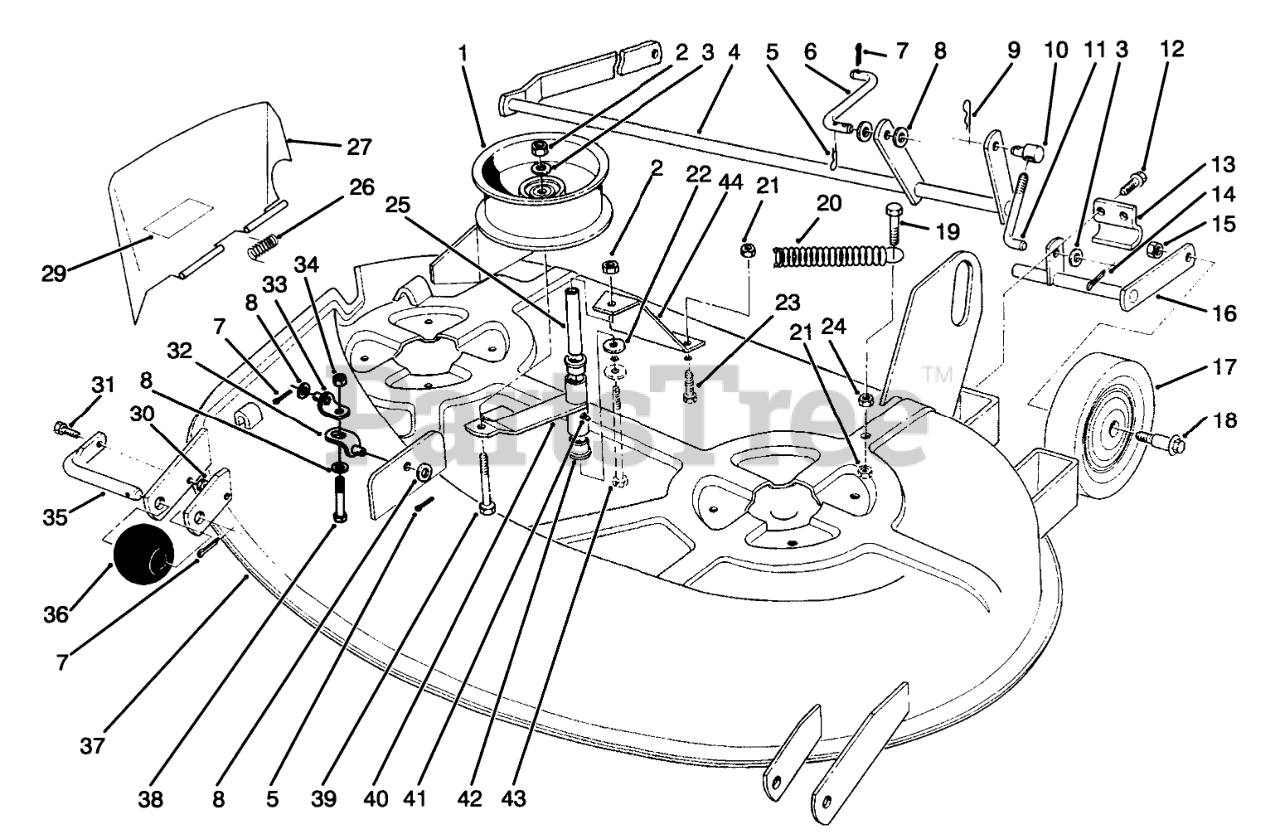

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$133.99

$

In Stock, only 2 left!

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 78-8011

Shaft-R.H.
(Superseded to 78-8011-03)

$143.99

$

Usually ships in 3-6 days

0

5

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

6

Toro 78-8071

LINK-REAR

$58.99

$

Usually ships in 3-6 days

0

7

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

10

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

11

Toro 121010

ROD-LIFT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

13

Toro 78-6400

Camp
(Superseded to 78-6400-03)

$

$

Not available

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 33146-2

Nut-Hex

$

$

Currently unavailable

16

Toro 78-7991

Shaft-L.H.
(Superseded to 78-7991-01)

$

$

Not available

17

Toro 110506

WHEEL

$37.99

$

In Stock, Qty 8

0

18

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 10

0

19

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

26

Toro 119691

SPRING-TORSION

$

$

Not available

27

Toro 92-5788

DISCHARGE CHUTE/DECAL

$

$

Not available

29

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 86-9240

BRACKET-LIFT, LOWER

$107.99

$

In Stock, only 4 left!

0

33

Toro 86-9250

BRACKET-LIFT, UPPER

$96.99

$

In Stock, only 1 left!

0

34

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

35

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

36

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 8

0

37

Toro 92-8015

38 DECK W/DECALS

$

$

Not available

38

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

39

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 78-3370

Arm-Idler
(Superseded to 78-3370-01)

$

$

Not available

41

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

42

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

43

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 15

0

44

Toro 78-8091

Brace
(Superseded to 78-8091-01)

$

$

Not available
