78218 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 099000001 - 099999999) (1999) GAGE WHEEL, DECK & SIDE DISCHARGE DEFLECTOR Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

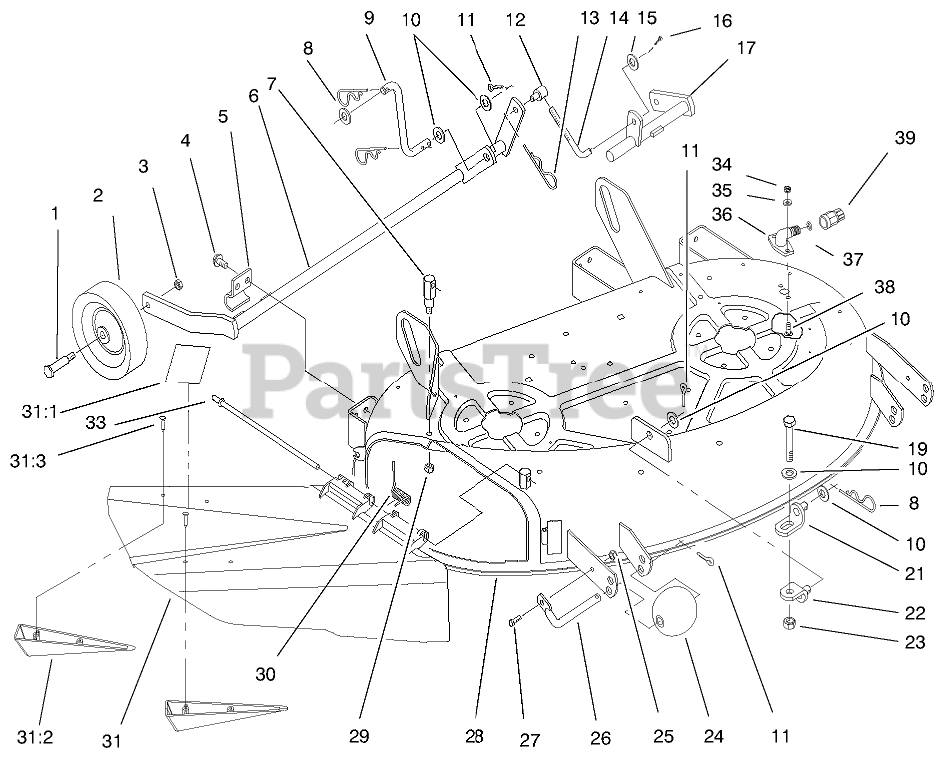

GAGE WHEEL, DECK & SIDE DISCHARGE DEFLECTOR Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 16

0

2

Toro 110506

WHEEL

$37.99

$

In Stock, Qty 12

0

3

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, only 3 left!

0

4

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

5

Toro 78-6400-03

CLAMP

$

$

Not available

6

Toro 78-8011-03

SHAFT-RH

$150.99

$

Usually ships in 3-6 days

0

7

Toro 92-7063

PIVOT POST - REAR

$46.99

$

Usually ships in 3-6 days

0

8

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 10

0

9

Toro 78-8071

LINK-REAR

$61.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

12

Toro 101161

TRUNNION

$

$

Not available

13

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 11

0

14

Toro 121010

ROD-LIFT

$27.99

$

Usually ships in 3-6 days

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-7073-03

SHAFT-LH

$

$

Not available

19

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

21

Toro 86-9240

BRACKET-LIFT, LOWER

$112.99

$

In Stock, only 4 left!

0

22

Toro 86-9250

BRACKET-LIFT, UPPER

$101.99

$

In Stock, only 1 left!

0

23

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 11

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$46.99

$

In Stock, only 3 left!

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 94-1579

DECK ASM

$

$

Not available

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 57-6950

SPRING

$27.99

$

In Stock, only 2 left!

0

31

Toro 93-7695

DEFLECTOR ASM

$100.99

$

In Stock, only 2 left!

0

31:1

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

31:2

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

31:3

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 19

0

33

Toro 57-4380

ROD-HINGE DEFLECTOR

$40.99

$

Usually ships in 3-6 days

0

34

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 5

0

35

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

37

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 9

0

38

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

39

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, Qty 20+

0
