78218 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 069000001 - 069999999) (1996) BLADE, SPINDLE, BELT & IDLER PULLEY Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

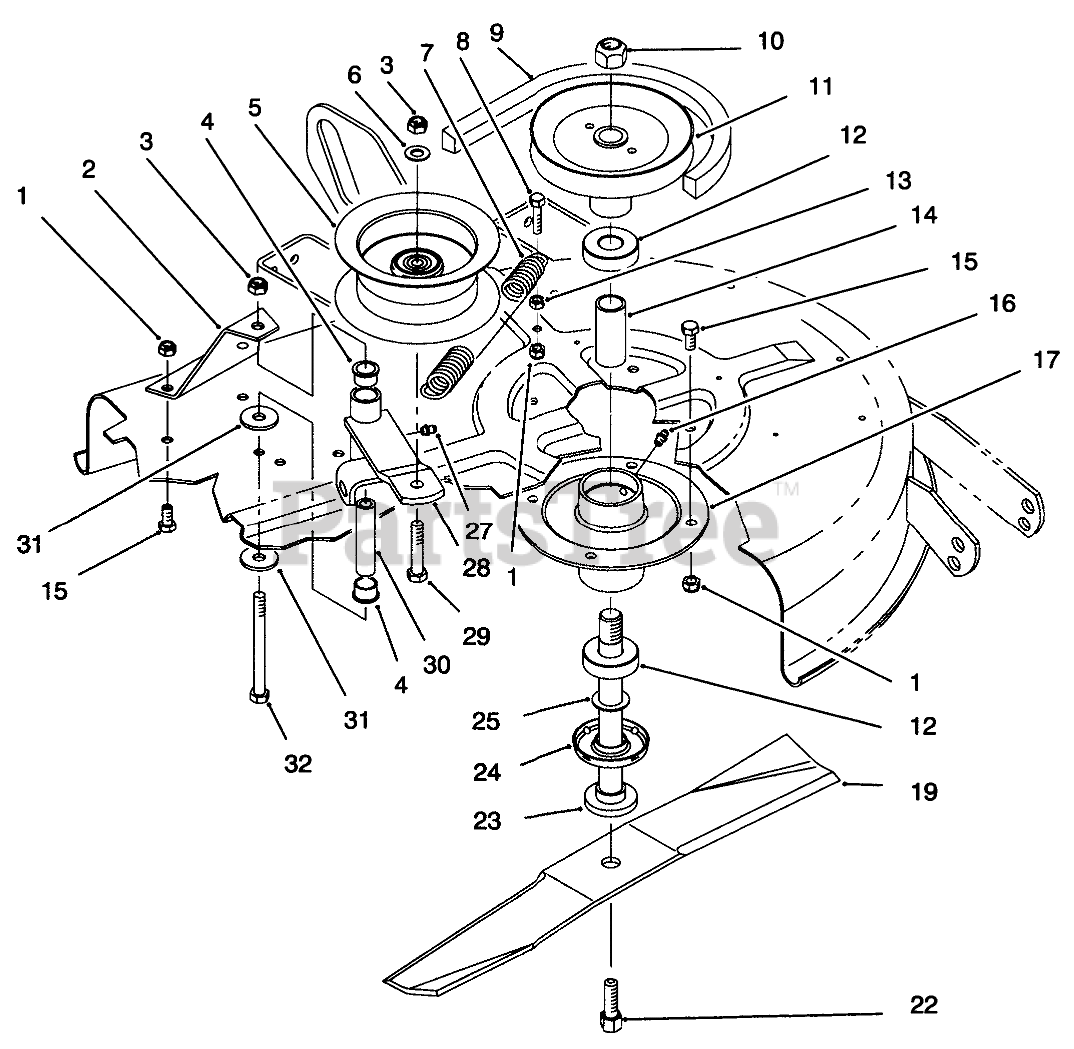

BLADE, SPINDLE, BELT & IDLER PULLEY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 78-8091-03

BRACE

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

5

Toro 92-7082

PULLEY-IDLER

$117.99

$

In Stock, only 1 left!

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

8

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

9

Toro 79-5980

V-BELT

$43.99

$

In Stock, only 1 left!

0

10

Toro 9150074

Nut-Hex
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 10

0

11

Toro 92-7081

PULLEY

$

$

Not available

12

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

In Stock, only 3 left!

0

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

14

Toro 79-2780

SPACER

$19.99

$

In Stock, only 1 left!

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0

17

Toro 79-1050-03

HOUSING-SPINDLE (BLACK)

$230.99

$

Usually ships in 3-6 days

0

19

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$37.99

$

In Stock, only 2 left!

0

21

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

22

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

23

Toro 80-4351

SHAFT-SPINDLE

$153.99

$

In Stock, only 1 left!

0

24

Toro 80-4370

SHIELD-BEARING

$14.99

$

In Stock, only 1 left!

0

25

Toro 80-4390

SPACER-HARDNED

$3.99

$

Usually ships in 3-6 days

0

27

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

28

Toro 78-3370-03

WLDMT-IDLER ARM (BLACK)

$

$

Not available

29

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 109950

SPACER

$19.99

$

Usually ships in 3-6 days

0

31

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

32

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0
