78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 200000001 - 200999999) (2000) BLADE, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

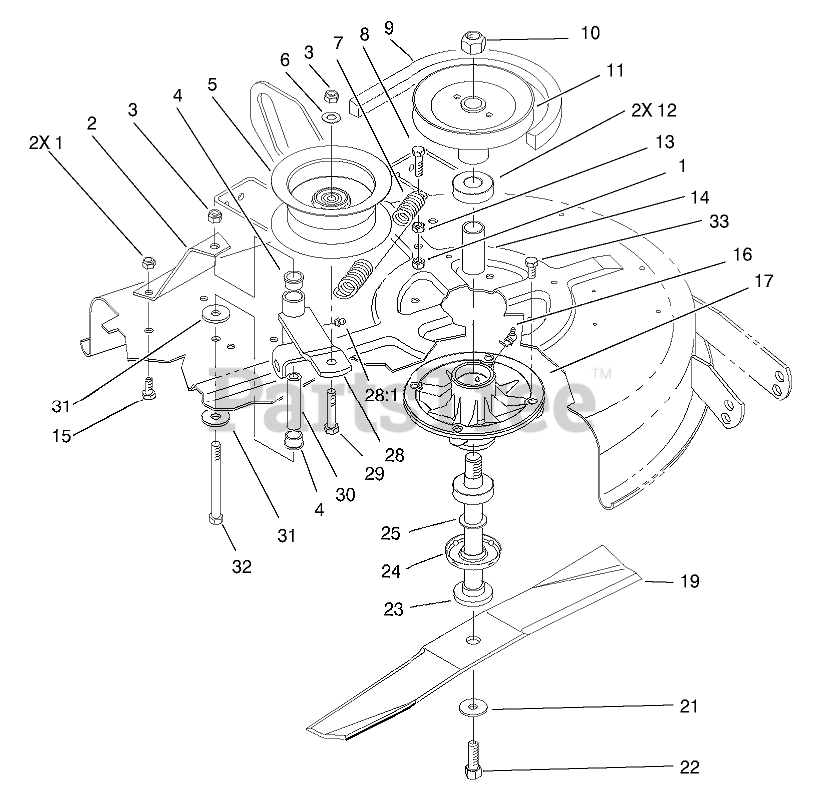

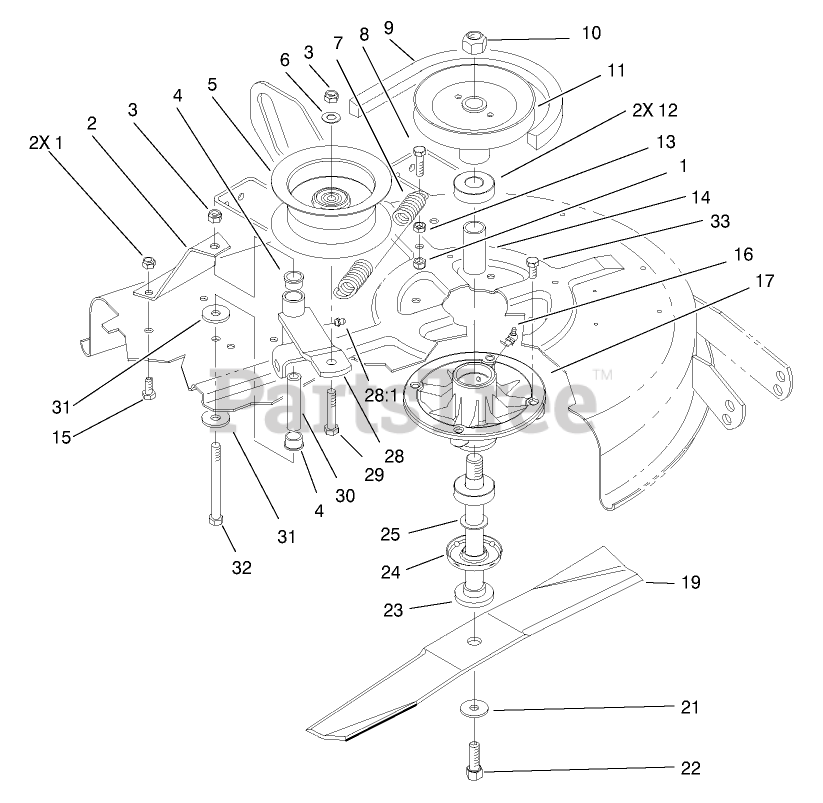

BLADE, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

5

Toro 92-7082

PULLEY-IDLER

$133.99

$

In Stock, only 2 left!

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

8

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

9

Toro 92-7066

V-BELT

$148.99

$

Usually ships in 3-6 days

0

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 100-3546

PULLEY

$125.99

$

In Stock, only 1 left!

0

12

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

14

Toro 62-3661

SPACER

$16.99

$

In Stock, Qty 15

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

17

Toro 100-3547

HOUSING-SPINDLE

$162.99

$

Usually ships in 3-6 days

0

19

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$42.99

$

Usually ships in 3-6 days

0

21

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

22

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

23

Toro 100-3548

SHAFT-SPINDLE

$76.99

$

In Stock, only 1 left!

0

24

Toro 80-4370

SHIELD-BEARING

$18.99

$

In Stock, only 1 left!

0

25

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

28

Toro 94-9795

ARM-IDLER

$

$

Not available

28:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

29

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

31

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

32

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

33

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0
