78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 069000001 - 069999999) (1996) GAGE WHEELS, DECK AND SIDE DISCHARGE DEFLECTOR Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

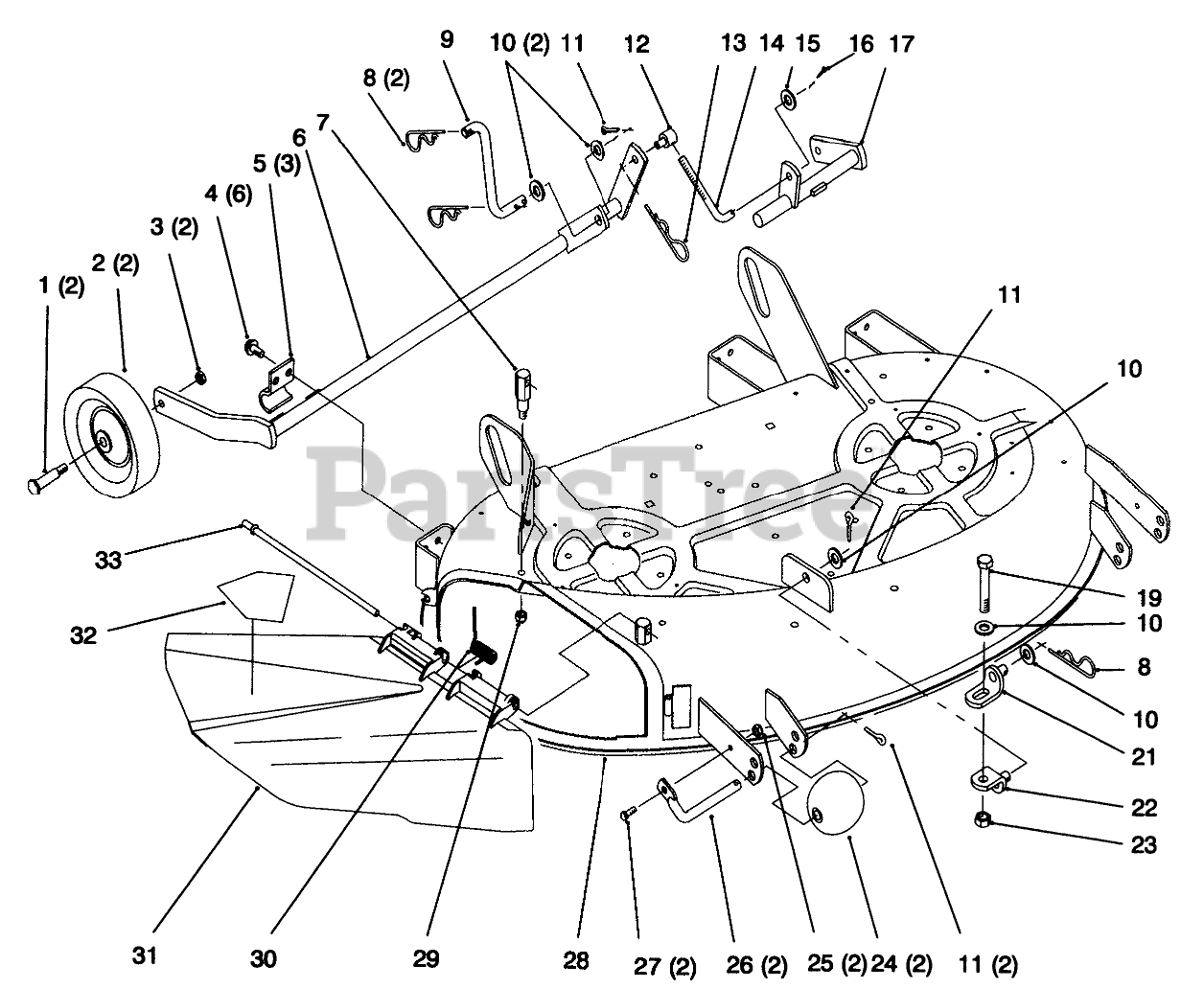

GAGE WHEELS, DECK AND SIDE DISCHARGE DEFLECTOR Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

2

Toro 110506

WHEEL

$37.99

$

Usually ships in 3-6 days

0

3

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

4

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

5

Toro 78-6400-03

CLAMP

$9.49

$

Usually ships in 3-6 days

0

6

Toro 78-8011-03

SHAFT-RH

$125.99

$

Usually ships in 3-6 days

0

7

Toro 92-7063

PIVOT POST - REAR

$38.99

$

Usually ships in 3-6 days

0

8

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

9

Toro 78-8071

LINK-REAR

$49.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

12

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

13

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

14

Toro 121010

ROD-LIFT

$22.99

$

Usually ships in 3-6 days

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-7073-03

SHAFT-LH

$

$

Not available

19

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 86-9240

BRACKET-LIFT, LOWER

$99.99

$

In Stock, only 4 left!

0

22

Toro 86-9250

BRACKET-LIFT, UPPER

$83.99

$

In Stock, only 1 left!

0

23

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 92-6834-01

Asm-Decal
(Superseded to 92-6834)

$

$

Not available

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 57-6950

SPRING

$25.99

$

In Stock, only 1 left!

0

31

Toro 93-0317

DEFLECTOR ASM

$71.99

$

In Stock, only 1 left!

0

32

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 12

0

33

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0
