78216 - Toro 38" Side-Discharge Mower Deck for 260 Series Tractors (SN: 049000001 - 049999999) (1994) BLADE & SPINDLE ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck for 260 Series Tractors

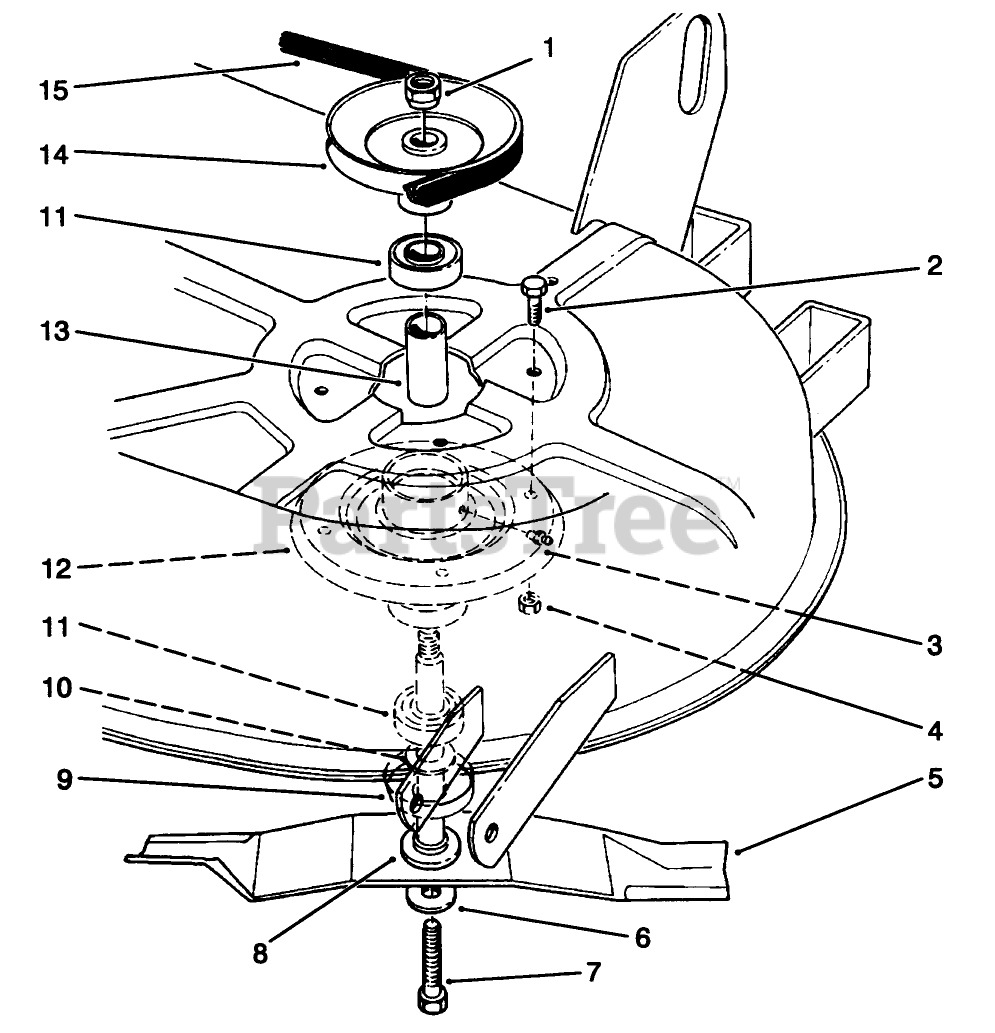

BLADE & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 915007

Nut
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 302-16

ZERK FITTING

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$42.99

$

Usually ships in 3-6 days

0

6

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

7

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

8

Toro 80-4351

SHAFT-SPINDLE

$175.99

$

In Stock, only 1 left!

0

9

Toro 80-4370

SHIELD-BEARING

$18.99

$

In Stock, only 1 left!

0

10

Toro 80-4390

SPACER-HARDNED

$4.49

$

Usually ships in 3-6 days

0

11

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

Usually ships in 3-6 days

0

12

Toro 79-1050-03

HOUSING-SPINDLE (BLACK)

$267.99

$

Usually ships in 3-6 days

0

13

Toro 79-2780

SPACER

$23.99

$

In Stock, only 1 left!

0

14

Toro 92-7081

PULLEY

$

$

Not available

15

Toro 79-5980

V-BELT

$49.99

$

In Stock, only 1 left!

0
