78200 - Toro Quiet Collector for Wheel Horse 260 Series Tractors (SN: 230000001 - 230999999) (2003) SCROLL ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 260 Series Tractors

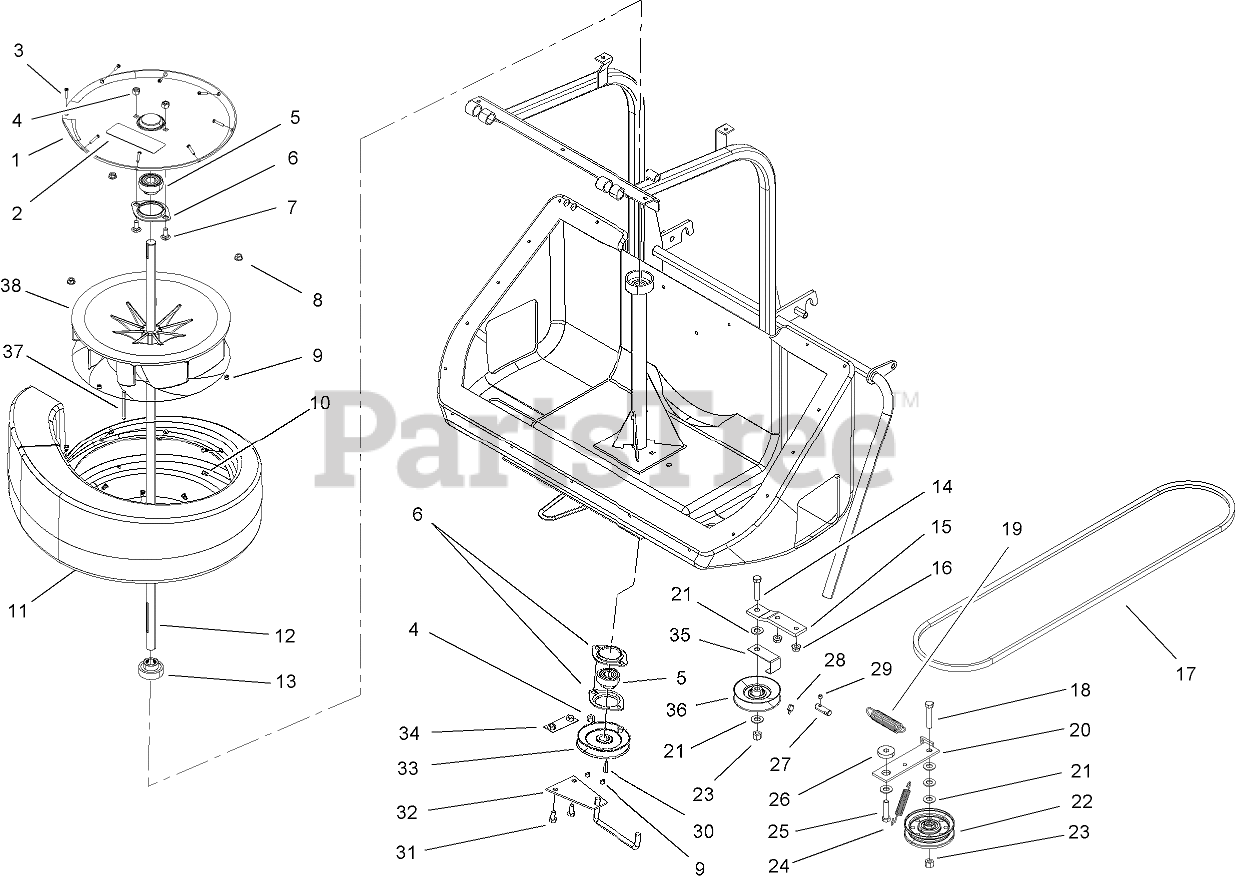

SCROLL ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3604

COVER-SCROLL

$

$

Not available

2

Toro 106-4156

DECAL-HAZARD, ADD WEIGHT

$

$

Not available

3

Toro 3250-17

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 98-3690

BEARING

$101.99

$

Usually ships in 3-6 days

0

6

Toro 98-3691

FLANGE

$

$

Not available

7

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 98-9145

NUT-INSERT

$

$

Not available

11

Toro 98-9146

SCROLL

$

$

Not available

12

Toro 98-9141

SHAFT

$

$

Not available

13

Toro 98-9150

BEARING

$200.99

$

Usually ships in 3-6 days

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 106-3450

Bracket

$

$

Not available

16

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 106-3453

Belt-V

$

$

Not available

18

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-9195

Spring-Extension

$

$

Not available

20

Toro 98-9196

Arm-Idler

$

$

Not available

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 98-9135

IDLER-FLAT

$226.99

$

Usually ships in 3-6 days

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 98-9197

Spring-Extension

$

$

Not available

25

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 98-3632

WASHER-FLANGE

$

$

Not available

27

Toro 98-3681

END-CABLE

$

$

Not available

28

Toro 98-9194

Grommet-Cable

$

$

Not available

29

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

30

$

$

Not available

31

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

32

Toro 106-3452

Guide-Belt

$

$

Not available

33

Toro 98-3623

PULLEY-V

$

$

Not available

34

Toro 106-3451

Plate-Mounting

$

$

Not available

35

Toro 98-9199

Guide-Belt

$

$

Not available

36

Toro 98-9198

Pulley-V

$

$

Not available

37

$4.99

$

Usually ships in 3-6 days

0

38

$

$

Not available
