78200 - Toro Quiet Collector for Wheel Horse 260 Series Tractors (SN: 230000001 - 230999999) (2003) FRONT HOPPER ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 260 Series Tractors

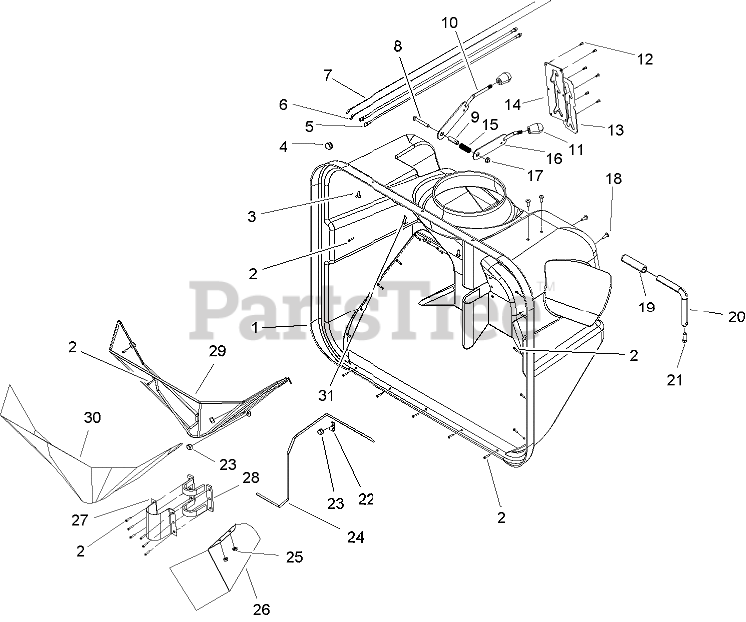

FRONT HOPPER ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3601

HOPPER-FRONT

$1341.99

$

Usually ships in 3-6 days

0

2

Toro 32144-23

SCREW-HWH, THREAD FORMING

$

$

Not available

3

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

4

Toro 98-3650

CAP-RUBBER

$

$

Not available

5

Toro 98-3618

SHIELD-CABLE

$81.99

$

Usually ships in 3-6 days

0

6

Toro 98-3620

CABLE

$

$

Not available

7

Toro 98-9182

Cable-Control

$

$

Not available

8

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

9

Toro 98-3648

SLEEVE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 98-9177

Lever-Clutch

$

$

Not available

11

Toro 98-3672

KNOB-OVAL

$

$

Not available

12

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, only 4 left!

0

13

Toro 106-2654

DECAL-OPERATION

$

$

Not available

14

Toro 106-3460

Plate-Lever

$

$

Not available

15

Toro 98-3647

SPRING

$

$

Not available

16

Toro 98-9176

Lever-Air Control

$

$

Not available

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

19

Toro 98-3662

GRIP-HANDLE

$

$

Not available

20

Toro 98-9185

Arm-Fill Gauge

$

$

Not available

21

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

22

Toro 98-9144

CLIP-CABLE, NYLON

$

$

Not available

23

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

24

Toro 98-9190

Rod-Fill Gauge

$

$

Not available

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

26

Toro 98-9186

Baffle-Grass

$

$

Not available

27

Toro 98-9164

COVER-BEARING

$

$

Not available

28

Toro 98-9151

SEAL-STRIPPING

$

$

Not available

29

Toro 98-9178

Frame-Filter

$383.99

$

Usually ships in 3-6 days

0

30

Toro 98-9181

Filter

$

$

Not available

31

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 6

0
