78200 - Toro Quiet Collector for Wheel Horse 260 Series Tractors (SN: 220000001 - 220999999) (2002) HITCH AND PULLEY ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 260 Series Tractors

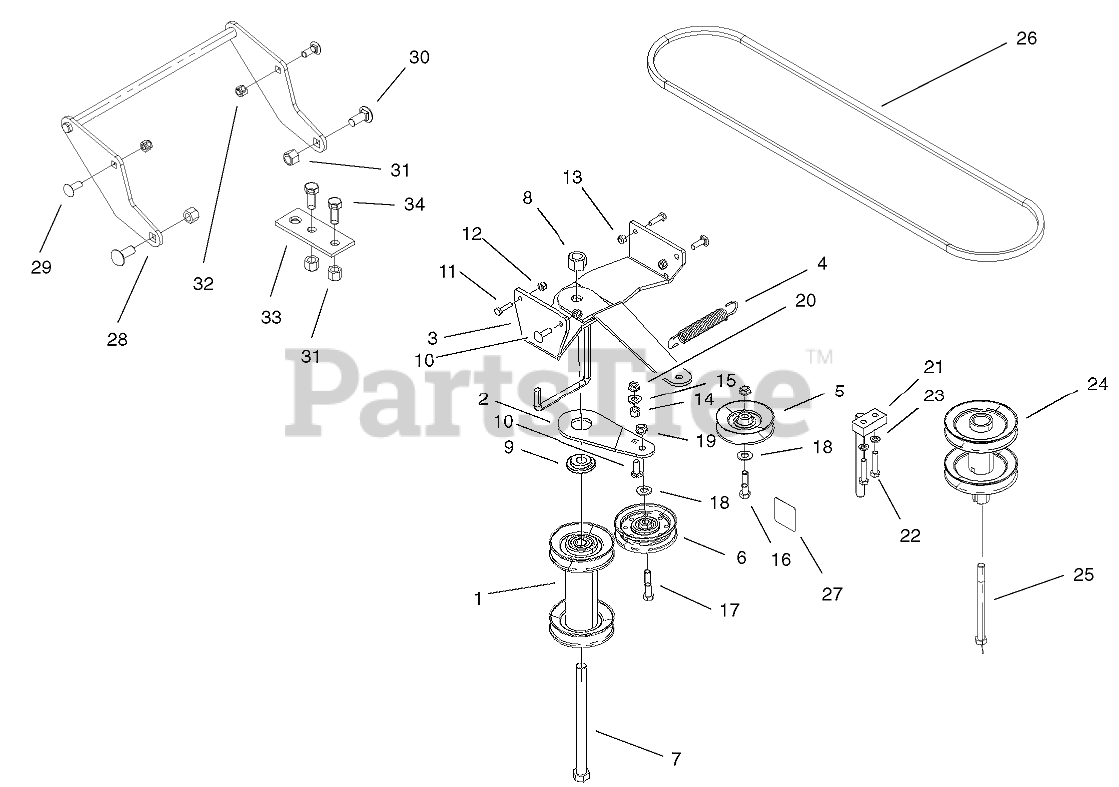

HITCH AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 98-9179

Pulley-Double

$1060.99

$

Usually ships in 3-6 days

0

2

Toro 98-9189

Arm-Idler

$

$

Not available

3

Toro 98-9191

Frame-Drive

$

$

Not available

4

Toro 98-3636

SPRING

$

$

Not available

5

Toro 98-9198

Pulley-V

$

$

Not available

6

Toro 98-9135

IDLER-FLAT

$226.99

$

Usually ships in 3-6 days

0

7

Toro 327-27

Screw-HH

$

$

Not available

8

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 98-9161

Washer-Flange

$

$

Not available

10

Toro 3230-22

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

11

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

14

Toro 98-9162

Sleeve

$

$

Not available

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

16

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

$

$

Not available

22

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-9183

Pulley-Engine

$888.99

$

Usually ships in 3-6 days

0

25

Toro 3212-26

SCREW-HH

$22.99

$

Usually ships in 3-6 days

0

26

Toro 98-9193

Belt-V

$

$

Not available

27

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

28

Toro 98-9188

Hitch-Quick, Tractor

$

$

Not available

29

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 9

0

30

Toro 3233-1

SCREW-CARR

$8.49

$

Usually ships in 3-6 days

0

31

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

33

Toro 98-9187

Plate-Hitch

$

$

Not available

34

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0
