78200 - Toro Quiet Collector for Wheel Horse 260 Series Tractors (SN: 220000001 - 220999999) (2002) BAFFLE AND TUBE ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 260 Series Tractors

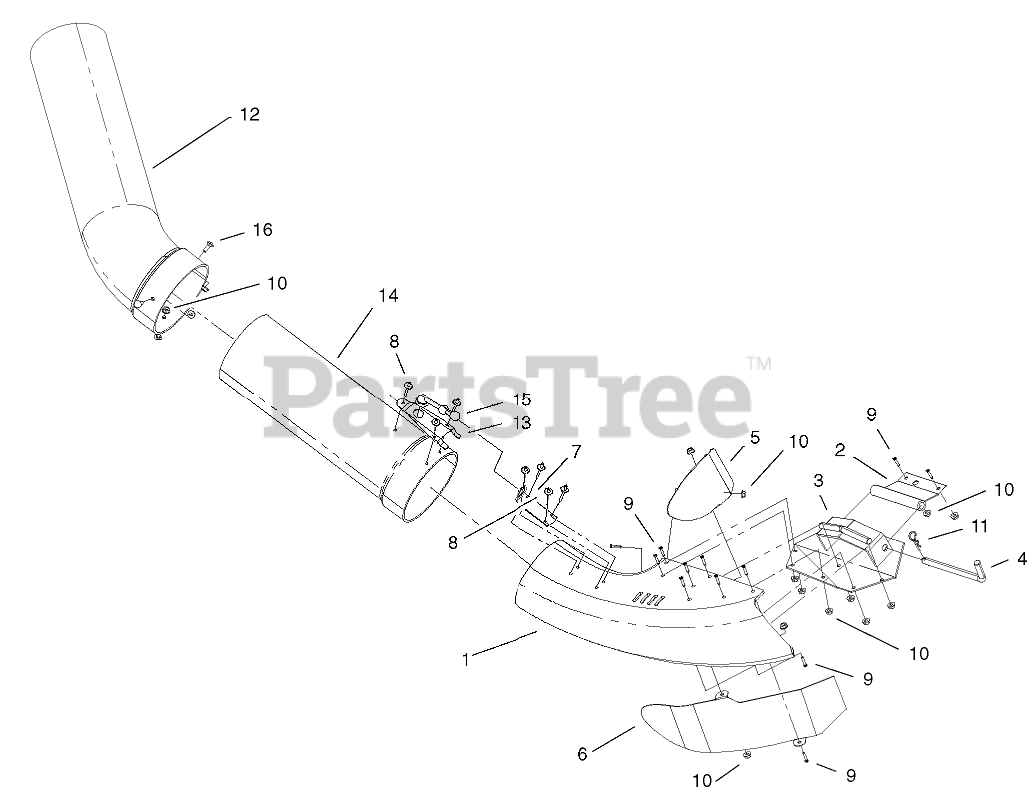

BAFFLE AND TUBE ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 98-9163

Bracket-Deck

$

$

Not available

3

Toro 98-9138

BRACKET-BOOT

$

$

Not available

4

Toro 98-9126

PIN-BOOT

$

$

Not available

5

Toro 98-9127

BAFFLE

$

$

Not available

6

Toro 98-9132

BAFFLE

$156.99

$

Usually ships in 3-6 days

0

7

Toro 98-3676

BRACKET-LATCH

$

$

Not available

8

Toro 3269-21

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

9

$2.99

$

Usually ships in 3-6 days

0

10

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

11

Toro 98-3696

HAIRPIN

$2.99

$

Usually ships in 3-6 days

0

12

Toro 106-3456

Tube-Elbow

$788.99

$

Usually ships in 3-6 days

0

13

Toro 98-3675

BRACKET

$

$

Not available

14

Toro 106-3457

Tube-Straight

$

$

Not available

15

Toro 98-3693

LATCH-RUBBER

$

$

Not available

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0
