7800953-01 - Simplicity Cavalier 33" Rear-Engine Riding Mower, 15.5hp Seat Group (7503083) Parts Diagram

Cavalier 33" Rear-Engine Riding Mower, 15.5hp

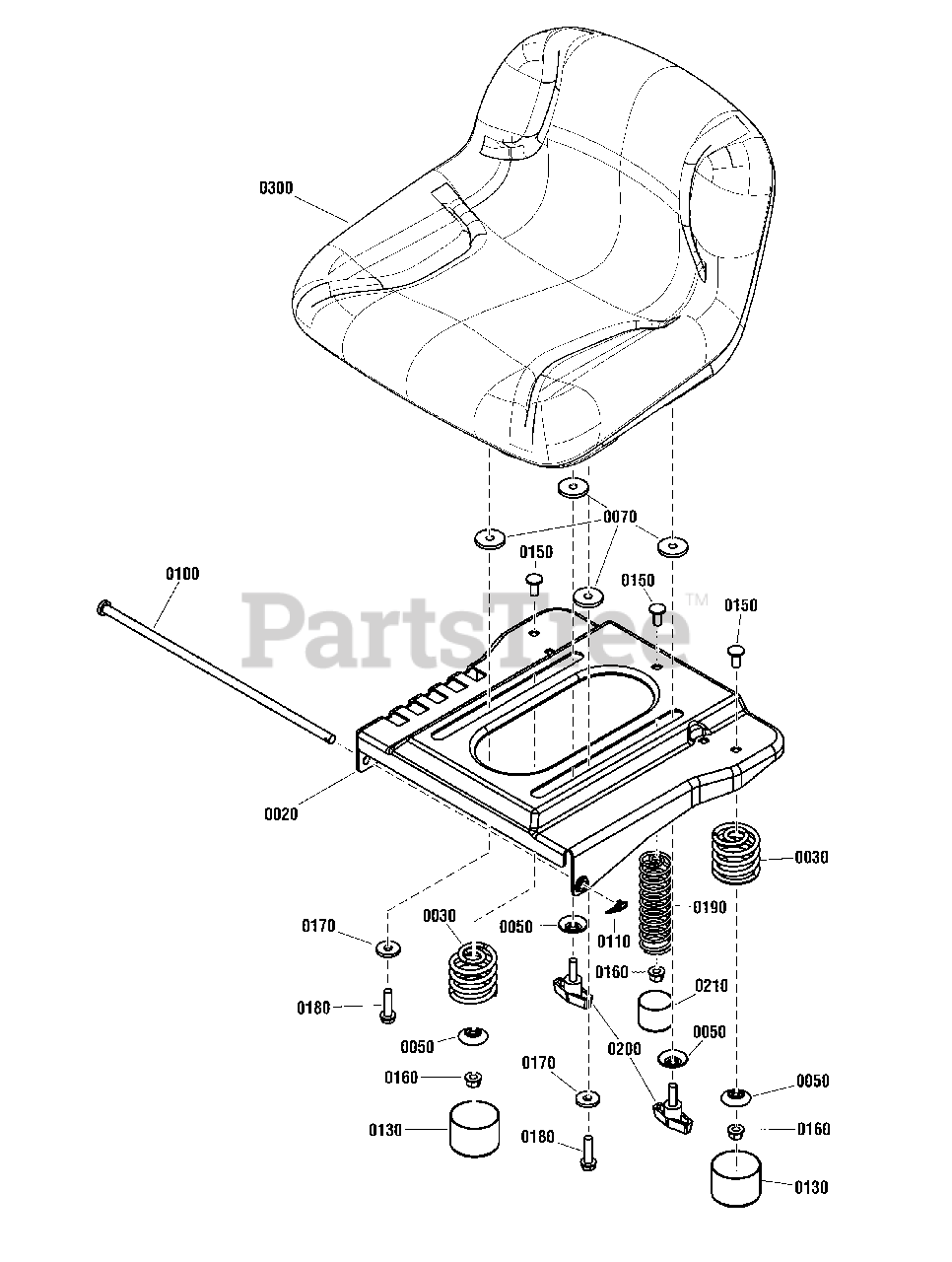

Seat Group (7503083) Parts Diagram

  • Title

0020

Simplicity 7301219BMYP

SUPPORT, Seat

$92.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1704728SM

SPRING, Compression, 19/32 x 2

$9.99

$

In Stock, only 2 left!

0

0050

Simplicity 1709256SM

WASHER, Spring, 5/16 ID x 1-1/4 OD

$5.99

$

In Stock, only 1 left!

0

0070

Simplicity 1731300SM

SPACER, 0.32 ID x 1-1/2 OD x 3/10 THK Powdered Metal Yellow

$5.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1751493YP

ROD, Seat Pivot, .375 X 13.44 to .109 Hole

$10.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 14

0

0130

Simplicity 1704724SM

COVER, Spring 2" Id X 1-1/2", Black Vinyl

$7.99

$

In Stock, only 2 left!

0

0150

Simplicity 703185

BOLT, 5/16-18 x 3/4, Carriage, Short Neck, G5, Zinc/Clear

$3.49

$

In Stock, Qty 16

0

0160

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 703298

WASHER, 5/16 (.34 ID X 1" OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0180

Simplicity 1930595SM

SCREW, Hex Cap Flange Whiz Lock, 5/16-18 x 1-1/4, G5

$3.99

$

In Stock, Qty 5

0

0190

Simplicity 7106013YP

SPRING, Compression, 4.57" Free Length

$5.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1752056YP

KNOB, 5/16-18 x 3/4 Two Prong

$6.49

$

Usually ships in 2-12 days

0

0210

Simplicity 5023274SM

CAP, Vinyl, 1.375 X 1

$5.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1754214YP

SEAT, 11" High, 18.8" Wide

Note: (Black)

$311.99

$

Usually ships in 2-12 days

0
