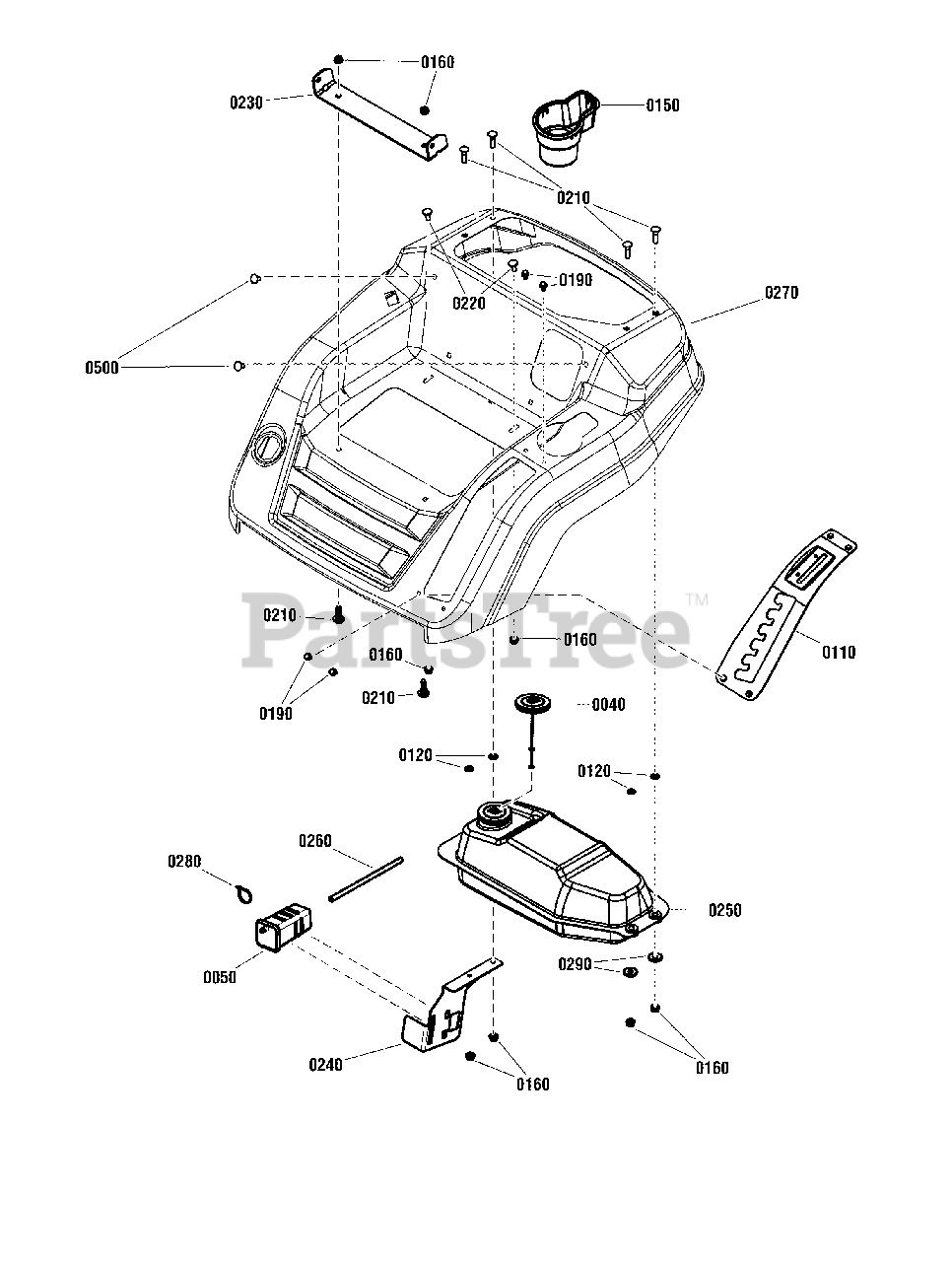

7800953-01 - Simplicity Cavalier 33" Rear-Engine Riding Mower, 15.5hp Console & Fuel Tank Group (7503233) Parts Diagram

Cavalier 33" Rear-Engine Riding Mower, 15.5hp

Console & Fuel Tank Group (7503233) Parts Diagram

  • Title

0040

Simplicity 7105682YP

ASSEMBLY, Fuel Cap, Non-Vented

$

$

Not available

0050

Simplicity 7104634YP

CANISTER, Carbon 140CC - RER
(Superseded to 1687882)

$86.99

$

Usually ships in 2-12 days

0

0110

Simplicity 7301262BMYP

PLATE, HOC Detent

$27.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0150

Simplicity 7105766YP

CUP HOLDER

$15.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0190

Simplicity 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Z

$4.49

$

In Stock, only 2 left!

0

0210

Simplicity 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0220

Simplicity 703185

BOLT, 5/16-18 x 3/4, Carriage, Short Neck, G5, Zin

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 706334

BRACKET, Seat Pivot, 12.41" W, 9.5" W .344" Sq Holes

$21.99

$

Usually ships in 2-12 days

0

0240

Simplicity 7301425BMYP

BRACKET, Canister Mounting, RER
(Superseded to 1687882)

$86.99

$

Usually ships in 2-12 days

0

0250

Simplicity 7106241YP

ASSEMBLY, Fuel Tank W/Cap, 1.96 Gal/7.4 L, RER

$216.99

$

Usually ships in 2-12 days

0

0260

Simplicity 7106249YP

HOSE, Vapor, 5 MM ID X 9 MM OD X 7.75"
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

0270

Simplicity 7301427CYP

CONSOLE, Seat/Hydro Control, Orange

$296.99

$

Usually ships in 2-12 days

0

0280

Simplicity 7024649YP

WIRE TIE, 11", Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0290

Simplicity 703298

WASHER, 5/16, .34 ID X 1 OD X .13 THK, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0500

Simplicity 1705115SM

PLUG, Hole

Note: (for .344 Square Hole)

$4.49

$

In Stock, only 1 left!

0
