7800953-00 - Simplicity Cavalier 33" Rear-Engine Riding Mower, 15.5hp Electrical Group (7503195) Parts Diagram

Cavalier 33" Rear-Engine Riding Mower, 15.5hp

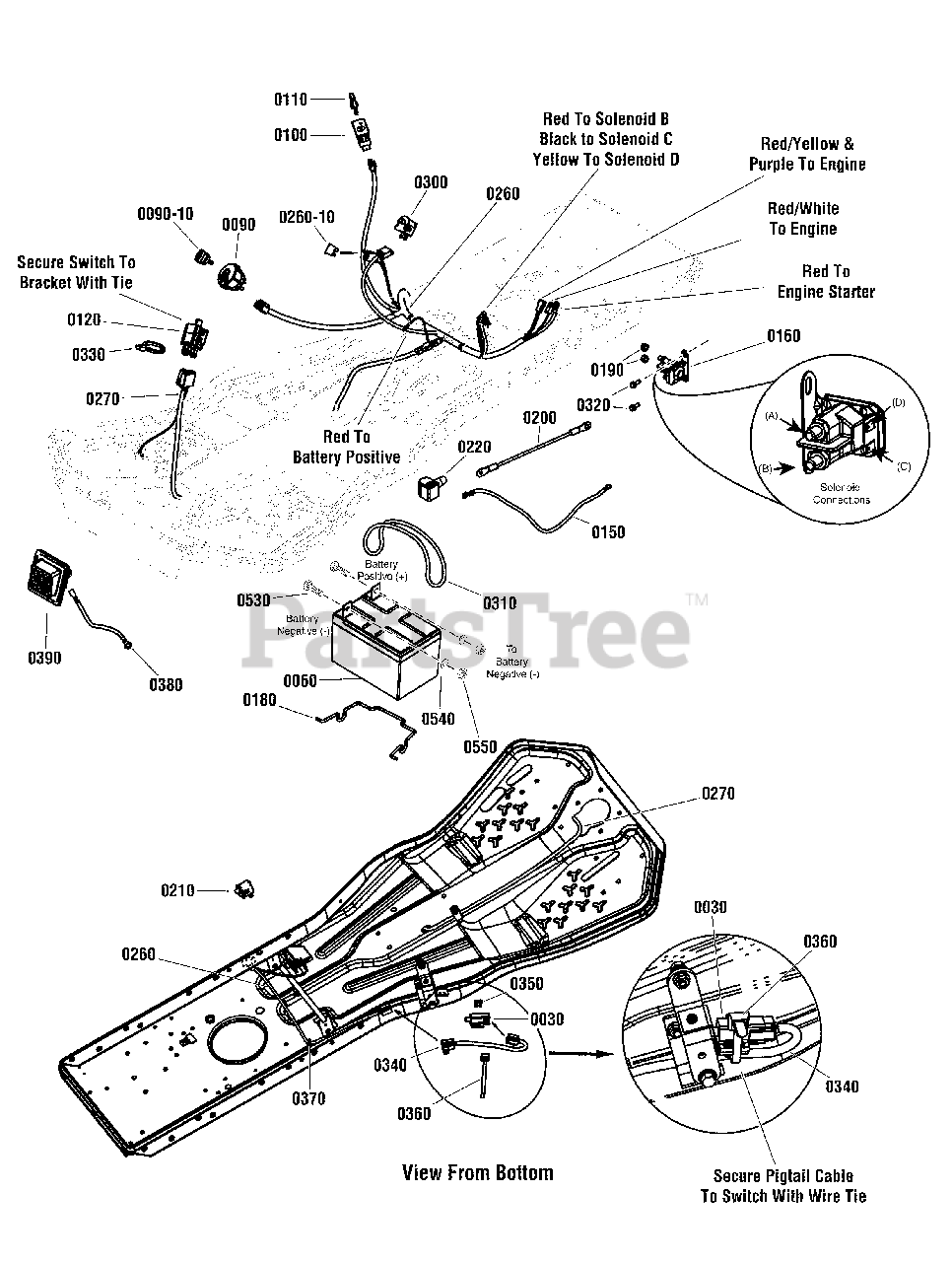

Electrical Group (7503195) Parts Diagram

  • Title

0030

Simplicity 7023355YP

SWITCH, DPDT NO/NC
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

0060

Simplicity 7600188YP

BATTERY, 12V 20HR: 190CCA, Sealed (3.9" W, 5.9" L, 4 to 4.7" H)(Includes Cable Attachment Hdwe.)

$125.99

$

In Stock, only 4 left!

0

0060-10

Simplicity 7900056YP

BOLT, #10-24 X 3/4, Carriage, GR2, YZ (Not Shown)

$4.49

$

Usually ships in 2-12 days

0

0060-20

Simplicity 703917

NUT, #10-24, Hex Flanged Whiz Lock, ZC (Not Shown)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 7106169YP

SWITCH, Ignition, 3 Position (Delta)(Without Key)

$17.99

$

In Stock, Qty 20+

0

0090-10

Simplicity 7106172YP

KEY, Ignition Switch - Delta, Blister Pack of 2, CE/CAN

$28.99

$

In Stock, only 3 left!

0

0100

Simplicity 1726556SM

SWITCH, Reverse Mow Option Module (Without Key)
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1726557SM

KEY, RMO Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0120

Simplicity 1751449YP

SWITCH, Plunger, Snap In (NO/NC/NC)

$24.99

$

In Stock, only 1 left!

0

0150

Simplicity 7100636SM

CABLE, Battery, 8 Gauge, Black, 20, 1/4 & 5/16 Terminals

$8.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

In Stock, Qty 20+

0

0180

Simplicity 7105788YP

BRACE, Battery

$11.99

$

In Stock, only 2 left!

0

0190

Simplicity 2860750SM

NUT, 5/16-24 Hex Lock, Keps, YZ

$2.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1716549SM

CABLE, Battery Positive, Red (#6 x 10" Long, 1/4" & 5/16" Ring Terminals)
(Superseded to 1752685YP)

$11.99

$

In Stock, only 1 left!

0

0210

Simplicity 1732004SM

SWITCH, Push Button, (NO, Black)

$8.99

$

In Stock, Qty 20+

0

0220

Simplicity 7105082YP

BOOT, Insulator

$4.99

$

Usually ships in 2-12 days

0

0260

Simplicity 706331

WIRE HARNESS, Main, 14, 15.5HP/17.5HP

$109.99

$

Usually ships in 2-12 days

0

0260-10

Simplicity 7023653YP

FUSE, 20 Amp

$3.49

$

Usually ships in 2-12 days

0

0270

Simplicity 7105697YP

HARNESS, Blade Engage, 41"

$41.99

$

Usually ships in 2-12 days

0

0300

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC - Gray)

$12.99

$

In Stock, Qty 20+

0

0310

Simplicity 1665872SM

STRAP, Rubber Battery, .19 SQ, 7.88 OD, Black

$11.99

$

In Stock, Qty 7

0

0320

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0330

Simplicity 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0340

Simplicity 706332

WIRE HARNESS, Clutch Switch Pig Tail

$14.99

$

Usually ships in 2-12 days

0

0350

Simplicity 704060

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 11

0

0360

Simplicity 7024641YP

WIRE TIE, 5.5" L

$5.99

$

In Stock, only 1 left!

0

0370

Simplicity 1730268SM

CLIP, Hose, .50" Dia. Push In, Black Plastic

$3.99

$

Usually ships in 2-12 days

0

0380

Simplicity 7106051YP

WIRE, RER Head Light Ground

$5.99

$

Usually ships in 2-12 days

0

0390

Simplicity 7105923YP

ASSEMBLY, Head Light (includes Lamp, 12V, 25-30 Lumen LED)

$69.99

$

Usually ships in 2-12 days

0

0390-10

* LAMP, 12VAC 25-30 Lumen LED (1156 Socket, Type T25-BA15S)(Not Shown)

$

$

Not available

0530

Simplicity 703338

SCREW, Hex Head Cap, 1/4-20 X 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0540

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0550

Simplicity 703954

NUT, Center Lock, 1/4-20, GR5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0
