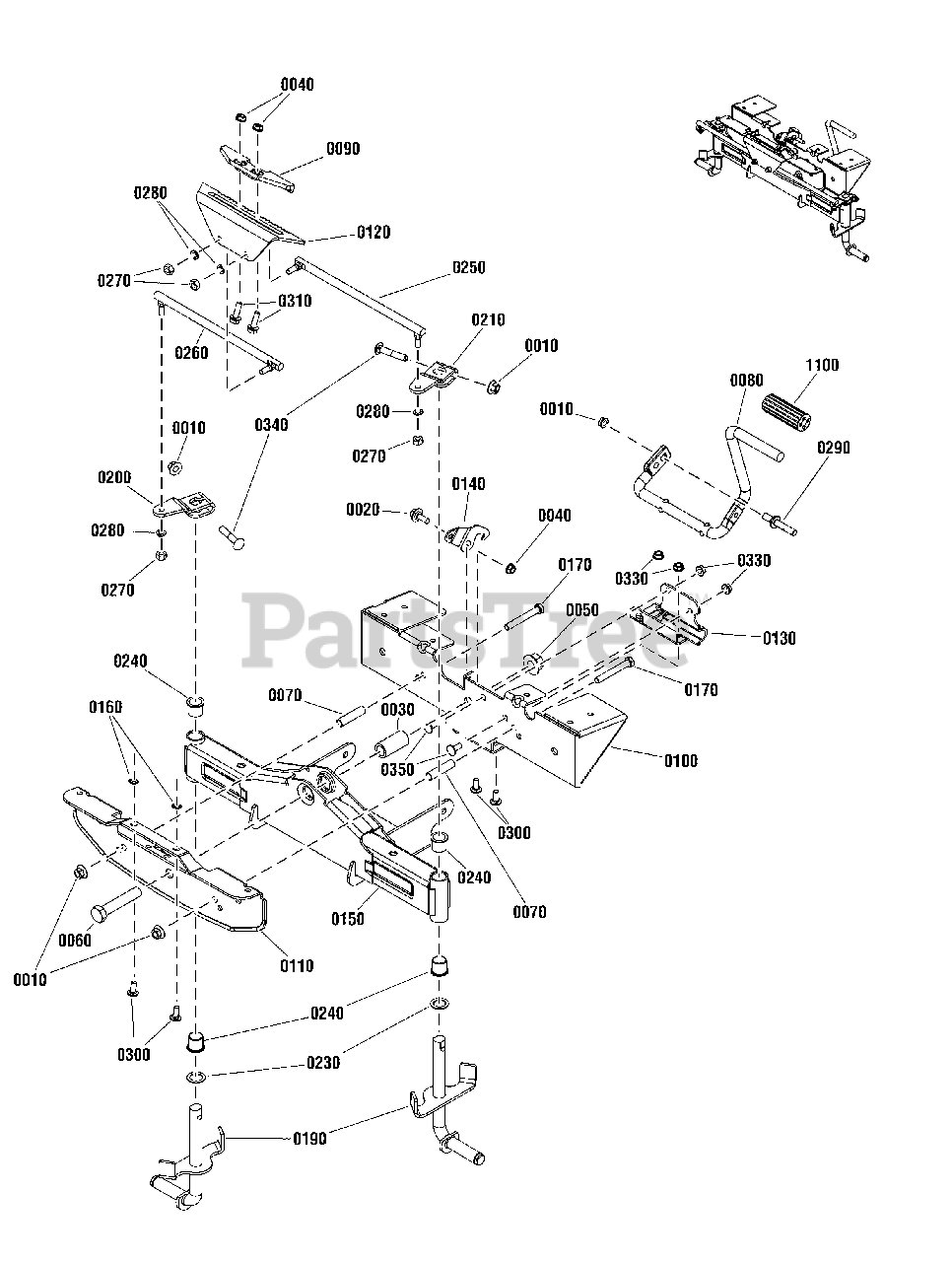

7800936-00 - Simplicity Cavalier 33" Rear-Engine Riding Mower, 17.5hp Front Axle Group (7503117) Parts Diagram

Cavalier 33" Rear-Engine Riding Mower, 17.5hp

Front Axle Group (7503117) Parts Diagram

  • Title

0010

Simplicity 703893

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated

$6.99

$

In Stock, Qty 20+

0

0020

Simplicity 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 1 left!

0

0030

Simplicity 1738193YP

SPACER, .641 ID X.980 0D X 2.0 Long

$6.49

$

In Stock, only 1 left!

0

0040

Simplicity 1935048SM

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0050

Simplicity 2860646SM

NUT, 5/8-11, Hex Flange Two Way Lock, Yellow

$10.99

$

In Stock, Qty 6

0

0060

Simplicity 2860744SM

SCREW, 5/8-11 x 3-1/4 Hex Head Cap, GR5, Yellow

$8.49

$

Usually ships in 2-12 days

0

0070

Simplicity 7026595YP

SPACER, .495 OD X .390 ID X 2.038 Long

$10.99

$

Usually ships in 2-12 days

0

0080

Simplicity 7105142YP

PEDAL, Brake

$19.99

$

Usually ships in 2-12 days

0

0090

Simplicity 7105857YP

PLATE, Rack Guide

$

$

Not available

0100

Simplicity 7301259YP

BRACKET, Rear Axle

$62.99

$

Usually ships in 2-12 days

0

0110

Simplicity 7301282YP

BRACKET, Front Axle
(Superseded to 7301432YP)

$102.99

$

In Stock, only 2 left!

0

0120

Simplicity 7301283YP

RACK, Steering

$42.99

$

In Stock, only 1 left!

0

0130

Simplicity 7301317YP

BRACKET, Brake Pedal

$13.99

$

Usually ships in 2-12 days

0

0140

Simplicity 7301351YP

PLATE, Park Brake

$5.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7400323YP

WELDMENT, Axle
(Superseded to 1759979BZYP)

$307.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0170

Simplicity 703133

SCREW, 3/8-16 X 2.750, Hex Head Cap, GR5, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

0190

Simplicity 7400335BMYP

WELDMENT, RER Hydro Spindle
(Superseded to 1760142BMYP)

$109.99

$

In Stock, only 2 left!

0

0200

Simplicity 7301337BMYP

ARM, RH Steering

$

$

Not available

0210

Simplicity 7301338BMYP

ARM, LH Steering
(Superseded to 7301338BMYP)

$

$

Not available

0230

Simplicity 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 2176440SM

BUSHING, .765 ID, .885 OD, .877 LG, Flanged Nylon

$4.99

$

In Stock, Qty 20+

0

0250

Simplicity 7105916YP

LINK, Drag 10 Lg, 90° X 5/16-24 Ball Joints, LH

$26.99

$

In Stock, only 1 left!

0

0260

Simplicity 7105148YP

LINK, Shift, 10 Lg, 90° X 5/16-24 Ball Joints, RH

$26.99

$

In Stock, only 1 left!

0

0270

Simplicity 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0290

Simplicity 703956

STUD, 3/8-16 X 2.625, Special Shoulder, GR5

$5.49

$

Usually ships in 2-12 days

0

0300

Simplicity 703185

BOLT, 5/16-18 x 3/4, Carriage, Short Neck, G5, Zinc/Clear

$3.49

$

In Stock, Qty 16

0

0310

Simplicity 703410

BOLT, 5/16-18 X 1.0 Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0330

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0340

Simplicity 703879

BOLT, Carriage 3/8-16X1-3/4 GR5 YZ

$3.99

$

In Stock, Qty 5

0

0350

Simplicity 704287

CAPSCREW, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 9

0

1100

Simplicity 1727261SM

PEDAL, Brake Rubber

$9.99

$

In Stock, Qty 5

0
