7800936-00 - Simplicity Cavalier 33" Rear-Engine Riding Mower, 17.5hp 33" Deck Group (7503214) Parts Diagram

Cavalier 33" Rear-Engine Riding Mower, 17.5hp

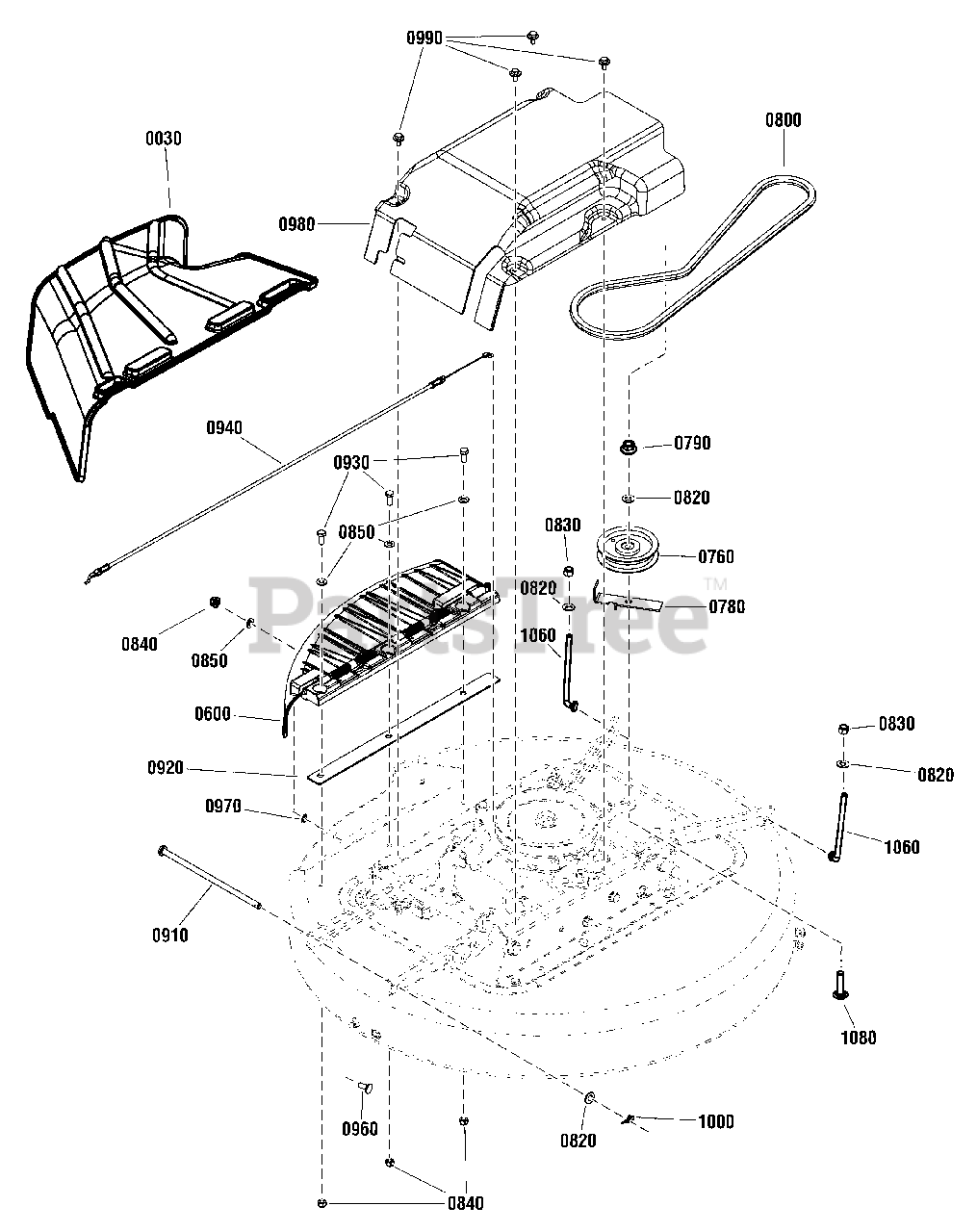

33" Deck Group (7503214) Parts Diagram

  • Title

0030

Simplicity 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 1 left!

0

0600

Simplicity 7105871YP

ASSEMBLY, Mulching Cover, RER, 33"

$91.99

$

Usually ships in 2-12 days

0

0600-10

Simplicity 704005

NUT, 1/4", Push, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0600-20

Simplicity 7103309YP

SPRING, Torsion, Rear Door (Not Shown)

$5.49

$

In Stock, only 1 left!

0

0600-30

Simplicity 7105346YP

HINGE, Chute, RER, 28/33 (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

0600-40

Simplicity 7105689YP

ROD, Chute .25 OD, 17.62 Long (Not Shown)

$7.49

$

Usually ships in 2-12 days

0

0600-50

Simplicity 7105870YP

COVER, Mulching, RER, 33"

$56.99

$

Usually ships in 2-12 days

0

0760

Simplicity 7018574SM

IDLER, Flat, BB, .375 ID, 4.12 OD

$38.99

$

In Stock, Qty 20+

0

0780

Simplicity 7032111YP

RESTRICTOR, Belt, 2.18" w/Lock Tab

$6.99

$

In Stock, Qty 11

0

0790

Simplicity 703893

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated

$6.99

$

In Stock, Qty 20+

0

0800

Simplicity 7106209YP

V-BELT, 33" Deck, Hydro Drive (HA 52.18" EL)

$47.99

$

In Stock, only 1 left!

0

0820

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

$3.99

$

In Stock, Qty 19

0

0830

Simplicity 71046MA

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0840

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0850

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0910

Simplicity 7105733YP

ROD, Front Deck Hangar, .38 Dia. X 9.16 Long

$10.99

$

Usually ships in 2-12 days

0

0920

Simplicity 7301363BMYP

PLATE, 33" Deck Hinge Support

$18.99

$

Usually ships in 2-12 days

0

0930

Simplicity 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

0940

Simplicity 7105982YP

CABLE, Brake, 37.4 OPC

$23.99

$

Usually ships in 2-12 days

0

0960

Simplicity 703185

BOLT, 5/16-18 x 3/4, Carriage, Short Neck, G5, Zinc/Clear

$3.49

$

In Stock, Qty 12

0

0970

Simplicity 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0980

Simplicity 7106072YP

COVER, Deck Spindle, 28"/33", RER

$

$

Not available

0990

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

1000

Simplicity 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 14

0

1060

Simplicity 7106057YP

ROD, Rear Deck Lift, 5.5 Long, 3/8-16 Threads
(Superseded to 706133)

$7.99

$

In Stock, only 1 left!

0

1080

Simplicity 7091945YP

BOLT, Carriage 3/8-16X1-1/2 GR5 YZ

$4.49

$

In Stock, only 2 left!

0
