7800908 (CESPV 22675 FC) - Canadiana Elite 22" Walk-Behind Mower, Canada (2012) Handles & Controls Group, VS, FWD Parts Diagram

Elite 22" Walk-Behind Mower, Canada

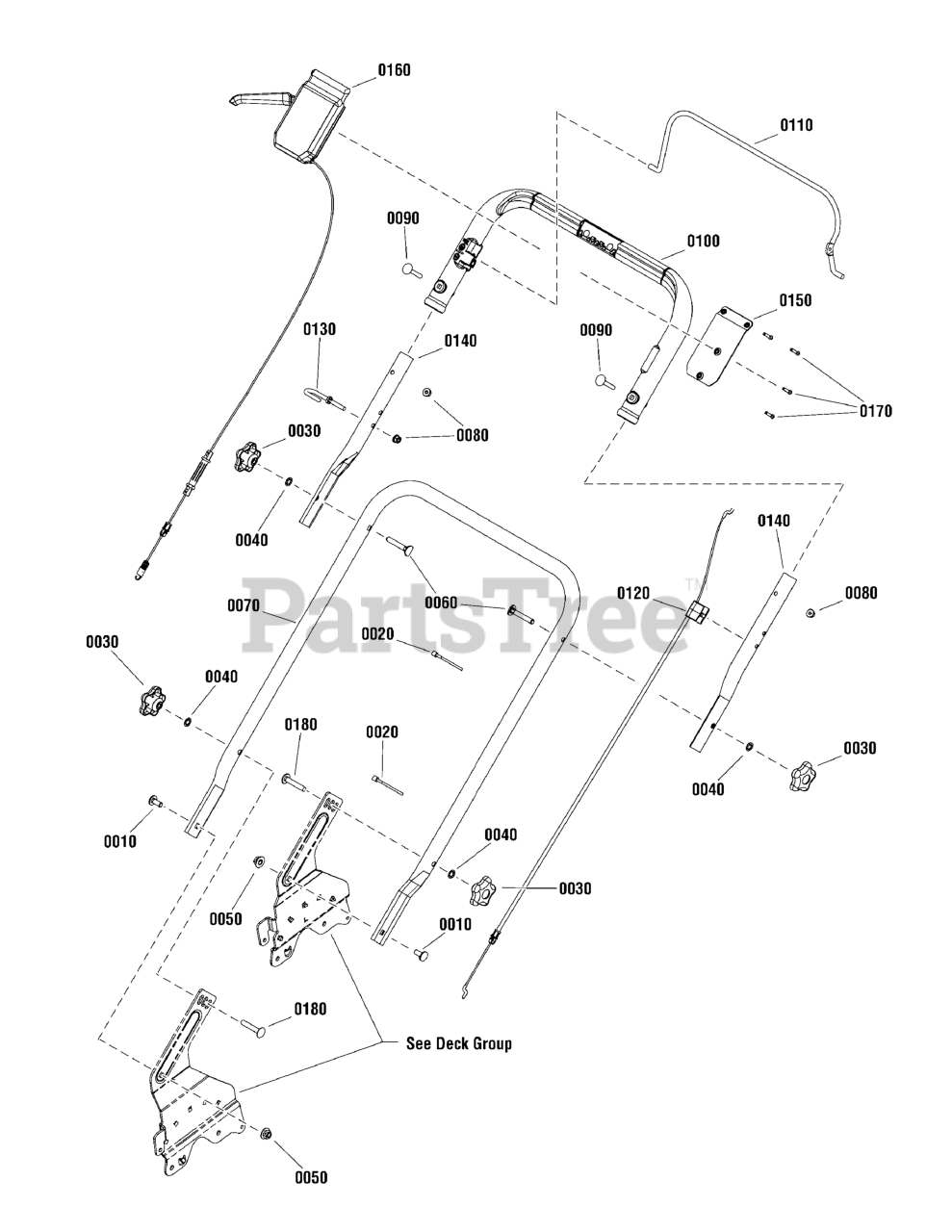

Handles & Controls Group, VS, FWD Parts Diagram

  • Title
0010

Murray 1931333SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0020

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0030

Murray 7105085YP

KNOB, Handle, 5-Prong (5/16-18 thread)

$3.99

$

In Stock, Qty 20+

0

0040

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

0060

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0070

Murray 7301189AYP

HANDLE, Lower 1" WBM - Black

$110.99

$

Usually ships in 2-12 days

0

0080

Murray 2860694SM

NUT, 1/4-20 Hex Flange Lock (Esna)
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7090015YP

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck Carriage, GR 2 YZ

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 7101312YP

HANDLE, Plastic, Upper, Walk-Behind Mower

$128.99

$

In Stock, only 1 left!

0

0110

Murray 7101321AYP

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

0120

Murray 7101395YP

CABLE, Bail, 22" WBM

$16.99

$

In Stock, only 1 left!

0

0130

Murray 7104952YP

GUIDE, Rope

$6.99

$

Usually ships in 2-12 days

0

0140

Murray 7300649BHYP

HANDLE, Connecting

$26.99

$

Usually ships in 2-12 days

0

0150

Murray 7300670AYP

PLATE, Control Panel, Plastic Handle

$

$

Not available

0160

Murray 7502147YP

ASSEMBLY, Control Head, 22" WBM Variable Speed, Front Wheel Drive
(Superseded to 7103677YP)

$69.99

$

In Stock, only 2 left!

0

0170

Murray 691138

SCREW, Pan HD Cross Recess, Tapping

$3.99

$

In Stock, Qty 18

0

0180

Murray 1931338SM

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, Gr 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0
