7800907 (CE 22675 HW FC) - Canadiana 22" Walk-Behind Mower, Canada (2012) Handles & Controls Group, Push Parts Diagram

22" Walk-Behind Mower, Canada

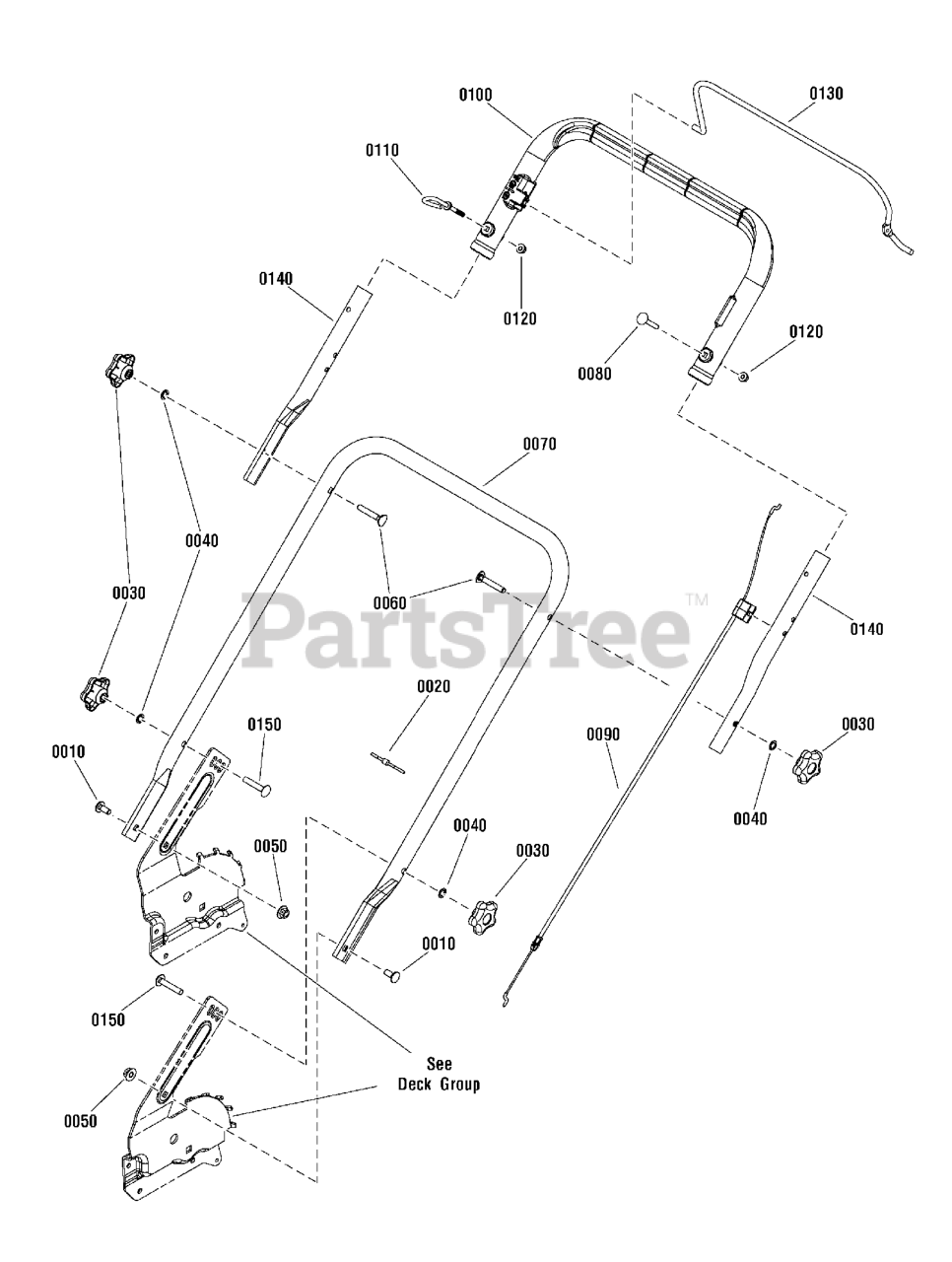

Handles & Controls Group, Push Parts Diagram

  • Title

0010

Murray 1931333SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0020

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0030

Murray 7105085YP

KNOB, Handle

$3.99

$

In Stock, Qty 20+

0

0040

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

0060

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

0070

Murray 7301189AYP

HANDLE, Lower 1" WBM

$110.99

$

Usually ships in 2-12 days

0

0080

Murray 7090015YP

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck Carriage, GR 2 YZ

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 7101395YP

CABLE, Bail, 22" WBM

$16.99

$

In Stock, only 1 left!

0

0100

Murray 7101405YP

HANDLE, Upper, Plastic

$43.99

$

Usually ships in 2-12 days

0

0110

Murray 7101410YP

ROPE GUIDE, 1/4-20 thread

$6.49

$

In Stock, only 1 left!

0

0120

Murray 2860694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0130

Murray 7101321AYP

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

0140

Murray 7300649BHYP

HANDLE, Connecting

$26.99

$

Usually ships in 2-12 days

0

0150

Murray 1931338SM

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, Gr 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0
