7800906 (CSP 22625 FC) - Canadiana 22" Walk-Behind Mower, 625 Series Briggs, Canada (2012) Wheels & 4-Point Height-Of-Cut Group (7502975) Parts Diagram

22" Walk-Behind Mower, 625 Series Briggs, Canada

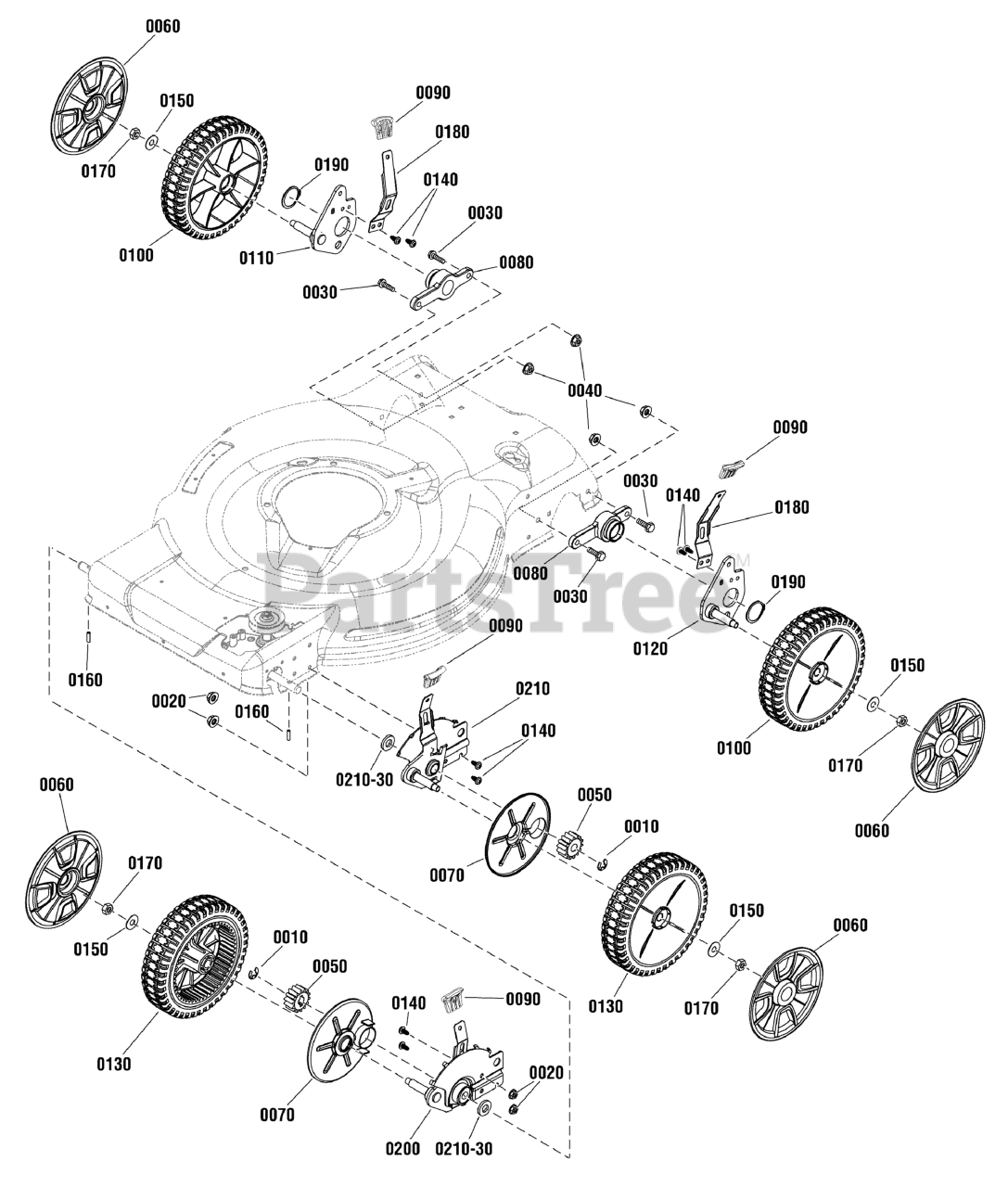

Wheels & 4-Point Height-Of-Cut Group (7502975) Parts Diagram

  • Title

0010

Murray 7014341YP

RETAINING RING, 1/4"
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

0020

Murray 7091584SM

NUT, Hex Flange Lock, 1/4-20, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0030

Murray 7091591SM

BOLT, Hex Flange Lock, 5/16-18 x 1, GR 5
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

0040

Murray 7091601SM

NUT, Hex Flange Lock, 5/16-18, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 7101207YP

GEAR, Pinion

$8.49

$

In Stock, only 2 left!

0

0060

Murray 7102507YP

HUBCAP

$3.99

$

In Stock, Qty 15

0

0070

Murray 7101402YP

SHIELD, Dust

$7.49

$

In Stock, only 2 left!

0

0080

Murray 7103290YP

HOLDER, Bearing

$13.99

$

Usually ships in 2-12 days

0

0090

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0100

Murray 7103541YP

WHEEL, Idle, 8 x 2

$40.99

$

Usually ships in 2-12 days

0

0110

Murray 7501516YP

AXLE ASSEMBLY, RR, 8"

$12.99

$

Usually ships in 2-12 days

0

0120

Murray 7501518YP

AXLE ASSEMBLY, LR, 8"

$13.99

$

Usually ships in 2-12 days

0

0130

Murray 7103500YP

WHEEL, Drive, 8 x 2

$36.99

$

In Stock, Qty 8

0

0140

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0150

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0160

Murray 7101270YP

DRIVE PIN, .187 Dia. X 3/4"

$5.49

$

In Stock, only 2 left!

0

0170

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0180

Murray 7103550YP

LEVER, 4-point HOC

$8.49

$

Usually ships in 2-12 days

0

0190

Murray 7900010YP

RETAINING RING, 3/4"

$4.49

$

Usually ships in 2-12 days

0

0200

Murray 7600104YP

HOC ASSEMBLY, RF, Propelled

Note: (Incl. Ref. 0210-30)

$

$

Not available

0210

Murray 7600105YP

HOC ASSEMBLY, LF

Note: (Incl. Ref. 0210-30)

$82.99

$

In Stock, only 1 left!

0

0210-30

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 18

0
