7800903 (CD 22550 FC) - Canadiana 22" Walk-Behind Mower, Canada (2012) Deck Group (7502902) Parts Diagram

22" Walk-Behind Mower, Canada

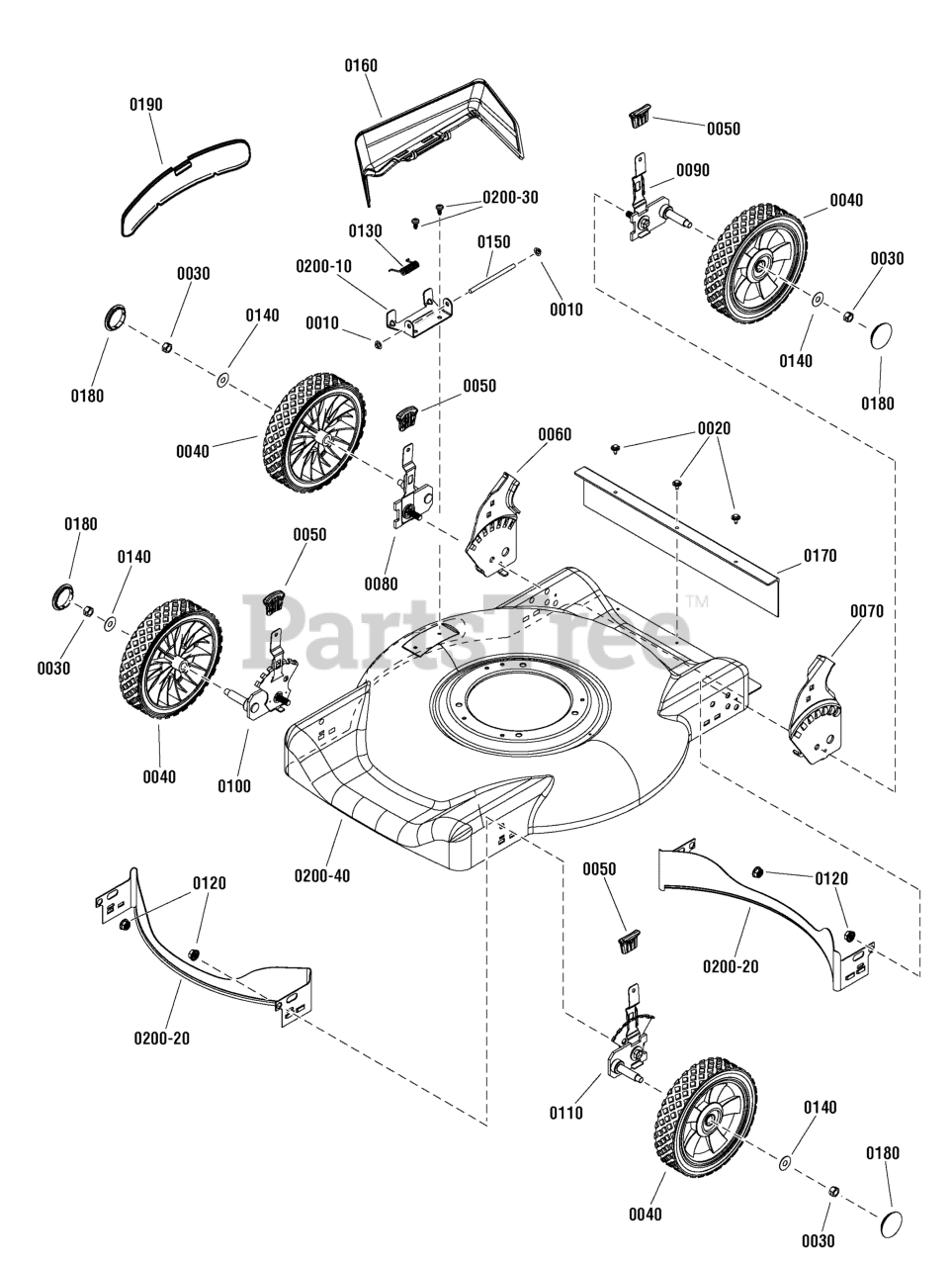

Deck Group (7502902) Parts Diagram

  • Title

0010

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0020

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

0030

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0040

Murray 7502378YP

WHEEL, 8 x 2 Diamond-Pewter

$37.99

$

Usually ships in 2-12 days

0

0050

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0060

Murray 7300850AYP

BRACKET, Handle, RH

$15.99

$

Usually ships in 2-12 days

0

0070

Murray 7300851AYP

BRACKET, Handle, LH

$15.99

$

Usually ships in 2-12 days

0

0080

Murray 7600118YP

ASSEMBLY, Height-Of-Cut 22", Right Rear
(Superseded to 7600114YP)

$48.99

$

Usually ships in 2-12 days

0

0090

Murray 7600119YP

ASSEMBLY, Height-Of-Cut 22", Left Rear
(Superseded to 7600113YP)

$31.99

$

Usually ships in 2-12 days

0

0100

Murray 7600120YP

ASSEMBLY, Height-Of-Cut 22", Right Front

$51.99

$

Usually ships in 2-12 days

0

0110

Murray 7600121YP

ASSEMBLY, Height-Of-Cut 22", Left Front

$51.99

$

Usually ships in 2-12 days

0

0120

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 0166X5MA

SPRING, Torsion, Chute

$3.99

$

Usually ships in 2-12 days

0

0140

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0150

Murray 215X11ZMA

ROD, Pivot, Mulch Cover

$4.49

$

Usually ships in 2-12 days

0

0160

Murray 672421MA

CHUTE, Plastic Side Discharge

$38.99

$

Usually ships in 2-12 days

0

0170

Murray 672738MA

GUARD, Rear

$32.99

$

Usually ships in 2-12 days

0

0180

Murray 1751539YP

HUBCAP, P290-Black

$4.99

$

Usually ships in 2-12 days

0

0190

Murray 672422ZMA

PLATE, Mulch

$41.99

$

Usually ships in 2-12 days

0

0200

DECK, 22" Walk Mower

$

$

Not available

0200-10

Murray 7300852BNYP

BRACKET, Chute

$6.99

$

Usually ships in 2-12 days

0

0200-20

Murray 7300853BNYP

BAFFLE, 22" Side Discharge

$12.99

$

Usually ships in 2-12 days

0

0200-30

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0200-40

Murray 7300691BNYP

DECK, 22" WBM, Side Discharge

$199.99

$

Usually ships in 2-12 days

0
