7800738 (96042010400) - Yard King 48" Lawn Tractor, 23hp (2011) Electrical Group (7800738elec) Parts Diagram

48" Lawn Tractor, 23hp

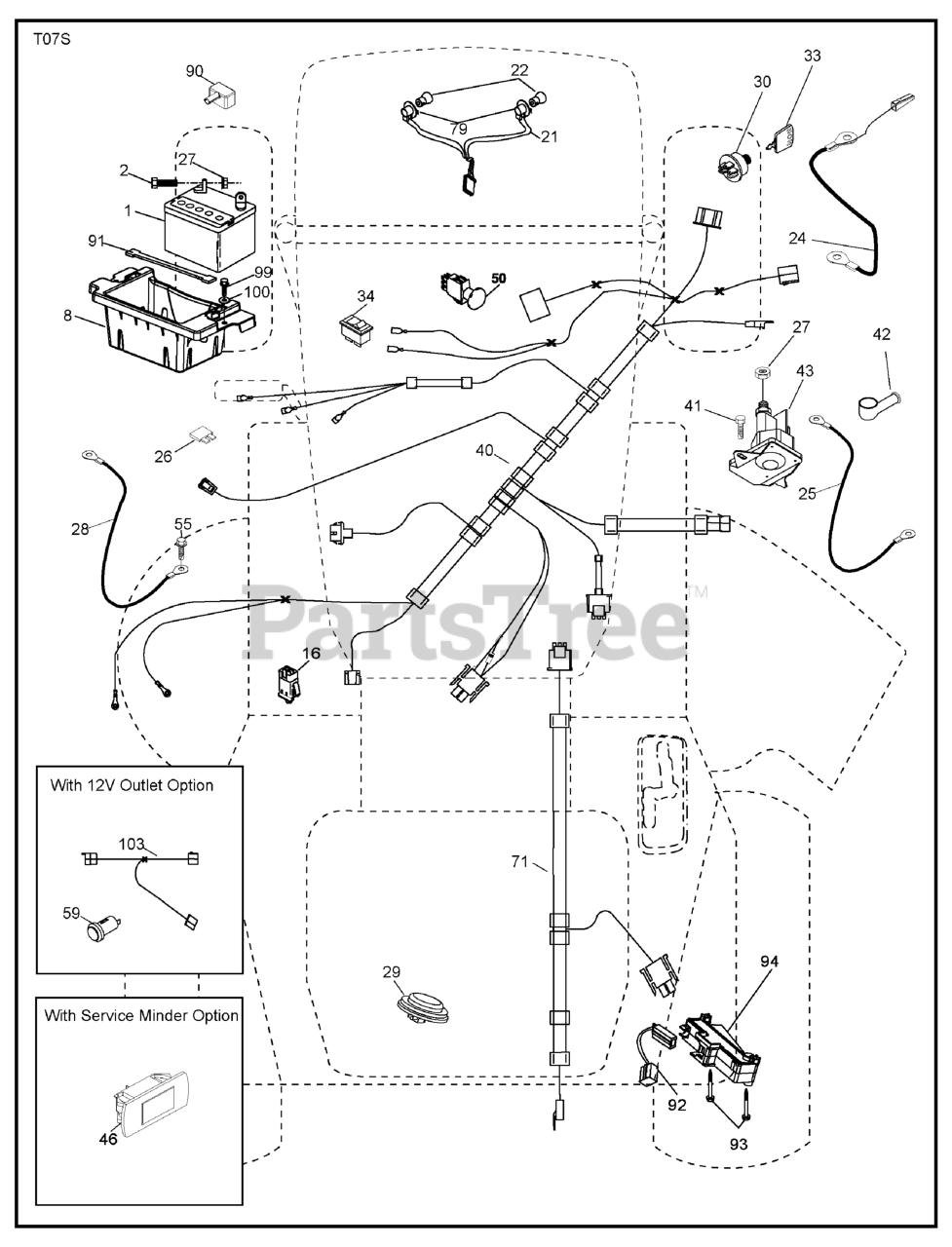

Electrical Group (7800738elec) Parts Diagram

  • Title

1

Murray 709116

Battery

$204.99

$

In Stock, only 2 left!

0

2

Murray 709438

Bolt Hex Head 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

8

Murray 705046

Box Battery

$29.99

$

Usually ships in 2-12 days

0

16

Murray 705042

Switch Interlock Push-In

$20.99

$

In Stock, only 2 left!

0

21

Murray 770329

Harness Socket Light w/4152J

$38.99

$

Usually ships in 2-12 days

0

22

Murray 709329

Bulb Light
(Superseded to 704984)

$6.99

$

Usually ships in 2-12 days

0

24

Murray 705135

Battery Cable

$15.99

$

Usually ships in 2-12 days

0

25

Murray 708403

Cable Starter

$24.99

$

Usually ships in 2-12 days

0

26

Murray 705040

Fuse

$7.49

$

Usually ships in 2-12 days

0

27

Murray 709428

Nut Keps Hex 1/4-20 unc

$4.49

$

In Stock, only 2 left!

0

28

Murray 708043

Cable, Ground

$12.99

$

Usually ships in 2-12 days

0

29

Murray 770337

Switch, Seat

$52.99

$

Usually ships in 2-12 days

0

30

Murray 705064

Switch, Ign

$95.99

$

Usually ships in 2-12 days

0

33

Murray 704428

Key/Chain

$21.99

$

In Stock, only 1 left!

0

34

Murray 709017

Switch Light/Reset

$6.49

$

In Stock, only 1 left!

0

40

Murray 708358

Harness Ign. Dash

$136.99

$

Usually ships in 2-12 days

0

41

Murray 709192

Screw Thd Cut 1/4-20 x 1/2

$5.49

$

Usually ships in 2-12 days

0

42

Murray 709053

Cover, Terminal

$8.99

$

Usually ships in 2-12 days

0

43

Murray 705055

Solenoid

$43.99

$

Usually ships in 2-12 days

0

46

Murray 705146

Gauge Hourmeter

$31.99

$

Usually ships in 2-12 days

0

50

Murray 174651

** Switch, PTO

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

55

Murray 709152

Screw Thdrol 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

71

Murray 705067

Harness Chassis

$58.99

$

Usually ships in 2-12 days

0

79

Murray 709171

Bulbholder Asm. Incandescent

$12.99

$

Usually ships in 2-12 days

0

90

Murray 709377

Cover Terminal Battery

$4.49

$

Usually ships in 2-12 days

0

91

Murray 705053

Strap Battery Mount Front

$10.99

$

Usually ships in 2-12 days

0

92

Murray 709283

Harness Pigtail Console

$11.99

$

Usually ships in 2-12 days

0

93

Murray 709245

Screw Plastite 10-14 x 2.0

$52.99

$

Usually ships in 2-12 days

0

94

Murray 709238

Module Reverse

$32.99

$

Usually ships in 2-12 days

0

99

Murray 709189

Screw Hexwsh Thdrol 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

100

Murray 709223

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0
