7800736 (96042010200) - Yard King 46" Lawn Tractor, 21hp (2011) Steering Group (7800736steer) Parts Diagram

46" Lawn Tractor, 21hp

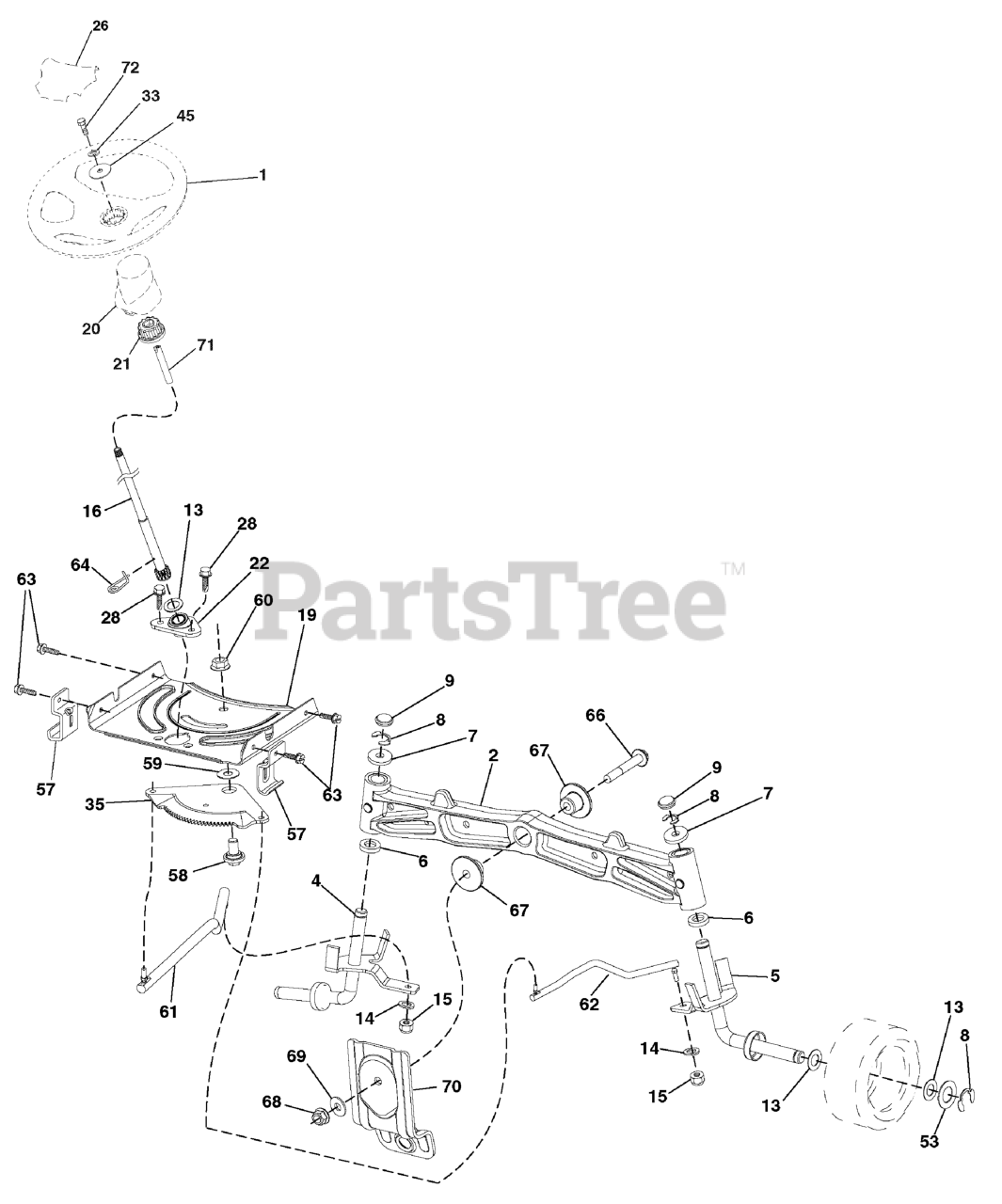

Steering Group (7800736steer) Parts Diagram

  • Title

1

Murray 770342

Wheel, Steering

$91.99

$

Usually ships in 2-12 days

0

2

Murray 705095

Axle Asm., Front
(Superseded to 709727)

$261.99

$

Usually ships in 2-12 days

0

4

Murray 705151

Spindle Asm., LH

$101.99

$

In Stock, only 1 left!

0

5

Murray 705152

Spindle Asm., RH

$69.99

$

In Stock, only 2 left!

0

6

Murray 705006

Washer, Thrust .75 x 1.230
(Superseded to 770061)

$18.99

$

In Stock, only 1 left!

0

7

Murray 709030

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 704995)

$7.99

$

In Stock, Qty 6

0

8

Murray 709023

Ring, Clip #T5304-75
(Superseded to 705319)

$6.49

$

In Stock, Qty 10

0

9

Murray 709026

Cap, Spindle

$6.99

$

Usually ships in 2-12 days

0

13

Murray 709031

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 704996)

$7.99

$

In Stock, Qty 20+

0

14

Murray 709003

Washer Lock 3/8

$4.49

$

Usually ships in 2-12 days

0

15

Murray 709429

Nut, Crown Lock 3/8-24 unf

$2.99

$

Usually ships in 2-12 days

0

16

Murray 708439

Shaft Steering

$84.99

$

Usually ships in 2-12 days

0

19

Murray 705081

Plate Steering

$36.99

$

In Stock, only 1 left!

0

20

Murray 770334

Boot, Steering

$14.99

$

Usually ships in 2-12 days

0

21

Murray 709208

Adapter, Wheel Steering
(Superseded to 709772)

$56.99

$

Usually ships in 2-12 days

0

22

Murray 705235

Steering Support Lower
(Superseded to 709805)

$35.99

$

Usually ships in 2-12 days

0

26

Murray 705242

Insert, Wheel Steering

$10.99

$

Usually ships in 2-12 days

0

28

Murray 709148

Screw 3/8-16 x 3/4

$7.49

$

In Stock, only 1 left!

0

33

Murray 709002

Washer Lock 5/16

$7.49

$

Usually ships in 2-12 days

0

35

Murray 770316

Gear, Sector Plate

$67.99

$

Usually ships in 2-12 days

0

45

Murray 709225

Washer 11/32 x 2-3/8 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

53

Murray 709218

Washer Hardened .793 x 1.637 x .060

$4.49

$

Usually ships in 2-12 days

0

57

Murray 705176

Bracket Upstop

$6.49

$

Usually ships in 2-12 days

0

58

Murray 770319

Bolt Shoulder Sector Pivot CFM

$11.99

$

Usually ships in 2-12 days

0

59

Murray 705087

Washer Thrust Sector Steering

$9.99

$

In Stock, only 1 left!

0

60

Murray 708497

Nut Flange Lock 5/8-11

$7.49

$

Usually ships in 2-12 days

0

61

Murray 770317

Draglink, LH

$116.99

$

Usually ships in 2-12 days

0

62

Murray 770318

Draglink, RH

$111.99

$

In Stock, only 1 left!

0

63

Murray 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

64

Murray 705132

Retainer Clip Spring Steering

$8.99

$

Usually ships in 2-12 days

0

66

Murray 708481

Bolt Hex Fghd 7/16-14 x 3 Serr

$9.49

$

Usually ships in 2-12 days

0

67

Murray 705083

Bushing PM Front Axle

$12.99

$

Usually ships in 2-12 days

0

68

Murray 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

69

Murray 705125

Washer 1.5 x .505 x .118

$5.49

$

Usually ships in 2-12 days

0

70

Murray 705097

Bracket Deck Susp. Front

$18.99

$

Usually ships in 2-12 days

0

71

Murray 709220

Shaft Extension Steering

$28.99

$

Usually ships in 2-12 days

0

72

Murray 709362

Bolt 5/16-18 x 4 W/Patch

$6.49

$

Usually ships in 2-12 days

0
