7800736 (96042010200) - Yard King 46" Lawn Tractor, 21hp (2011) Engine Group (7800736engine) Parts Diagram

46" Lawn Tractor, 21hp

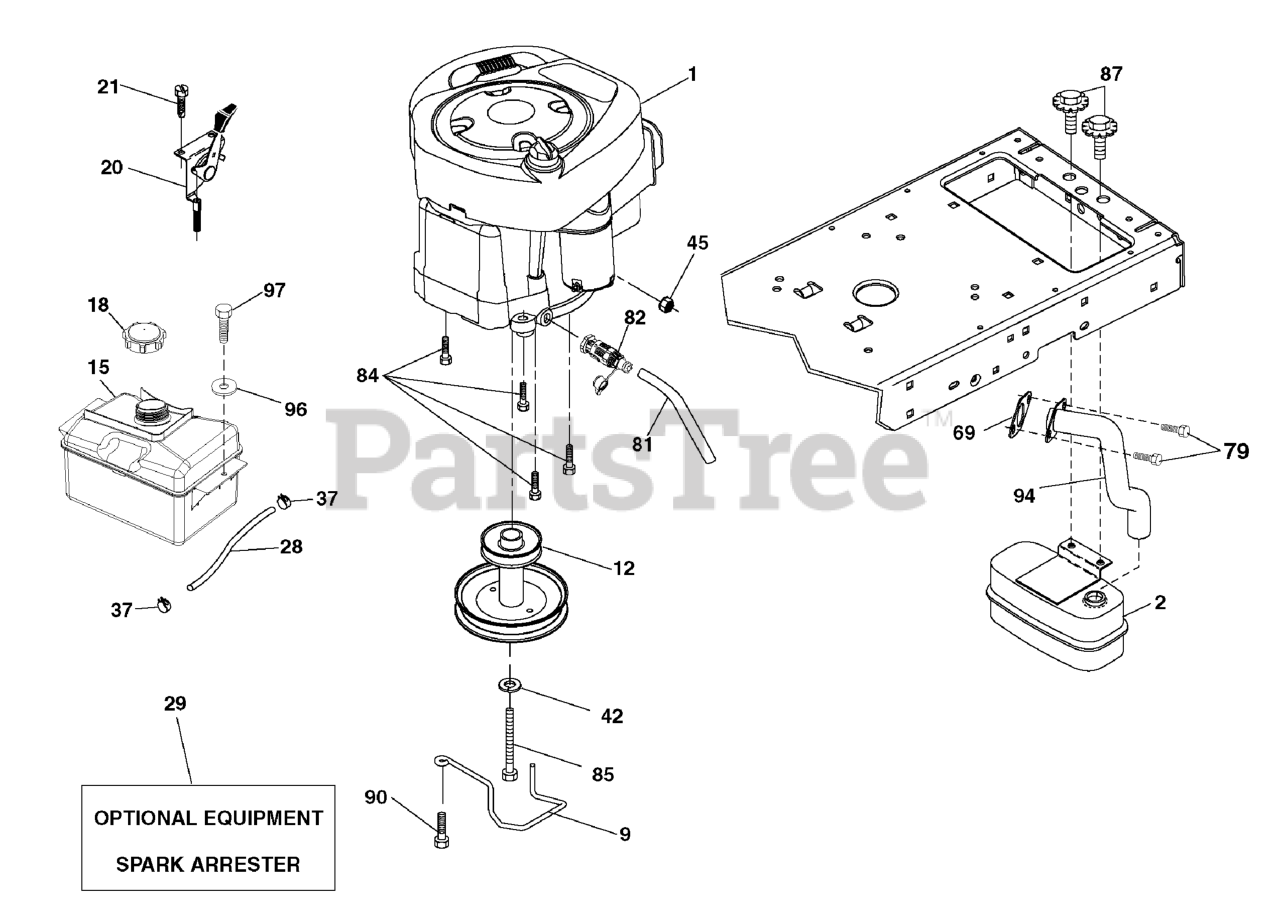

Engine Group (7800736engine) Parts Diagram

  • Title

1

Murray 331877-1497-B1

* Engine, Briggs & Stratton

Note: ( Engine Model: 331877-1497-B1 )

$

$

Currently unavailable

2

Murray 188655

Muffler

$45.99

$

In Stock, only 2 left!

0

9

Murray 708241

Keeper Belt Engine

$11.99

$

Usually ships in 2-12 days

0

11

Murray 708346

Clutch Electric
(Superseded to 708003)

$507.99

$

Usually ships in 2-12 days

0

12

Murray 705170

Pulley Engine

$80.99

$

In Stock, only 1 left!

0

15

Murray 708386

Tank Fuel
(Superseded to 708513)

$131.99

$

Usually ships in 2-12 days

0

18

Murray 709369

Cap Asm

$39.99

$

Usually ships in 2-12 days

0

20

Murray 708011

Control Throttle

$62.99

$

Usually ships in 2-12 days

0

21

Murray 709330

Screw #10 x 0.750

$3.99

$

Usually ships in 2-12 days

0

28

Murray 705141

Fuel Line

$41.99

$

Usually ships in 2-12 days

0

29

Murray 709065

Spark Arrester Kit

$103.99

$

Usually ships in 2-12 days

0

37

Murray 709034

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

42

Murray 709004

Washer Lock 7/16

$5.49

$

In Stock, only 1 left!

0

45

Murray 709428

Nut Keps Hex 1/4-20 unc

$4.49

$

In Stock, only 2 left!

0

69

Murray 709117

Gasket

$23.99

$

In Stock, only 1 left!

0

79

Murray 709243

Screw 5/16-18 x .75

$3.99

$

Usually ships in 2-12 days

0

81

Murray 770311

Tube Drain Oil Easy

$8.49

$

Usually ships in 2-12 days

0

82

Murray 709359

Valve Drain Oil

$18.99

$

Usually ships in 2-12 days

0

84

Murray 709153

Screw 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

85

Murray 709157

Bolt Hex 7/16-20 x 4 5 Ga. 1.5

$5.99

$

Usually ships in 2-12 days

0

87

Murray 705031

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

Usually ships in 2-12 days

0

90

Murray 709149

Screw 3/8-16 x 1

$9.99

$

Usually ships in 2-12 days

0

94

Murray 405450

Exhaust Tube

$

$

Not available

96

Murray 709223

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0

97

Murray 709189

Screw 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0
