7800735 (96042010000) - Yard King 42" Lawn Tractor, 17.5hp (2011) Seat Group (7800735seat) Parts Diagram

42" Lawn Tractor, 17.5hp

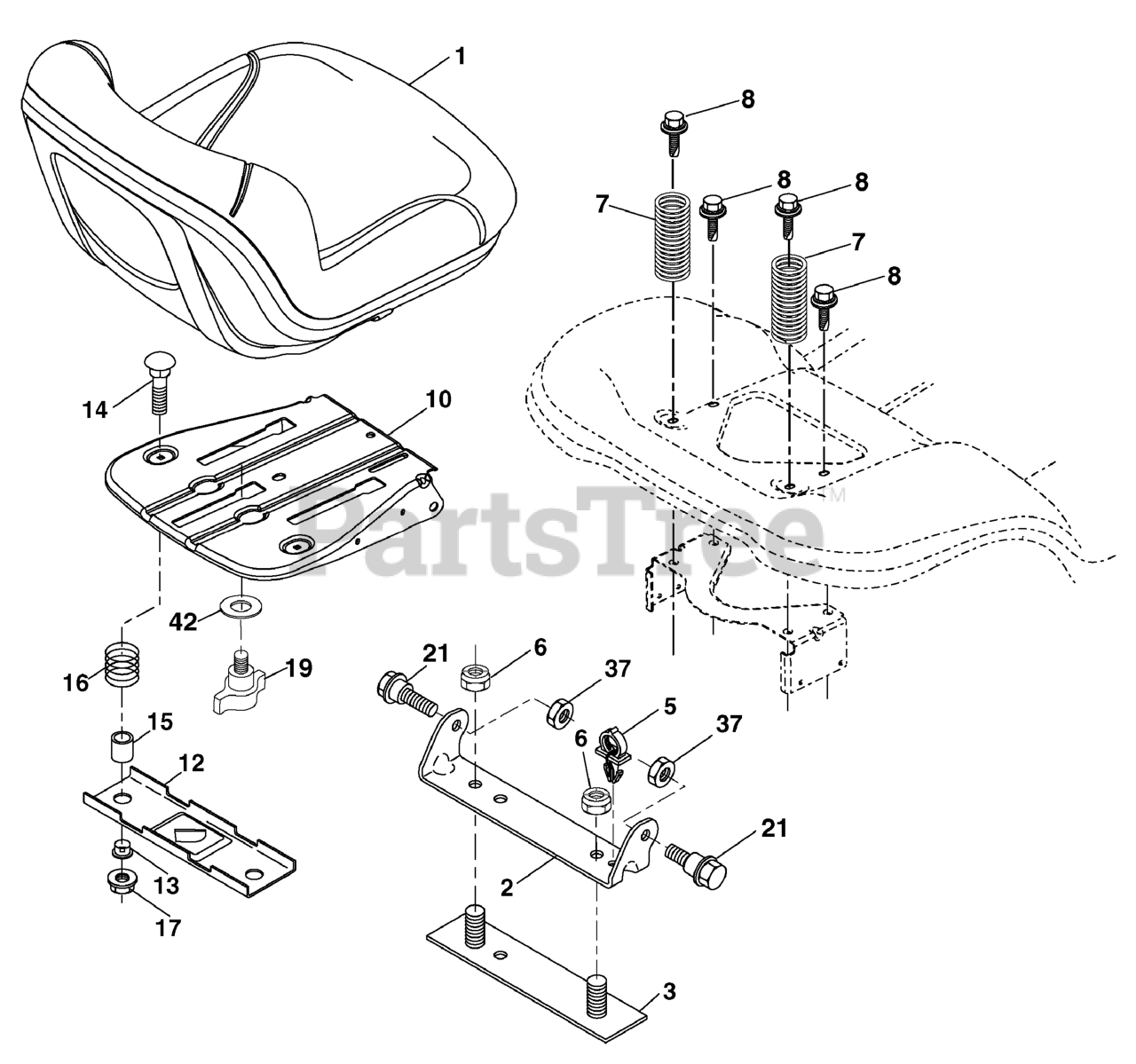

Seat Group (7800735seat) Parts Diagram

  • Title

1

Murray 770339

Seat

$273.99

$

Usually ships in 2-12 days

0

2

Murray 705043

Bracket Pivot Fender

$11.99

$

Usually ships in 2-12 days

0

3

Murray 708024

Strap, Asm Fender

$9.49

$

Usually ships in 2-12 days

0

5

Murray 709085

Clip Push-In

$4.49

$

Usually ships in 2-12 days

0

6

Murray 709433

Nut, Lock w/Ins. 3/8-16 unc

$4.49

$

Usually ships in 2-12 days

0

7

Murray 709040

Spring, Seat Cprsn

$7.99

$

Usually ships in 2-12 days

0

8

Murray 705031

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

Usually ships in 2-12 days

0

10

Murray 770322

Pan, Seat

$70.99

$

Usually ships in 2-12 days

0

12

Murray 770323

Bracket Mounting Seat

$11.99

$

Usually ships in 2-12 days

0

13

Murray 709027

Bushing Snap

$6.49

$

Usually ships in 2-12 days

0

14

Murray 709415

Bolt 1/4-20 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

15

Murray 709060

Spacer Split

$7.49

$

Usually ships in 2-12 days

0

16

Murray 770309

Spring

$7.49

$

Usually ships in 2-12 days

0

17

Murray 709038

Nut Lock 1/4

$3.99

$

Usually ships in 2-12 days

0

19

Murray 770325

Knob Seat

$6.49

$

Usually ships in 2-12 days

0

21

Murray 709154

Bolt, Shoulder 5/16-18

$6.99

$

Usually ships in 2-12 days

0

37

Murray 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

42

Murray 770324

Washer Cup Seat

$6.49

$

Usually ships in 2-12 days

0
