7800735 (96042010000) - Yard King 42" Lawn Tractor, 17.5hp (2011) Mower Deck (7800735deck) Parts Diagram

42" Lawn Tractor, 17.5hp

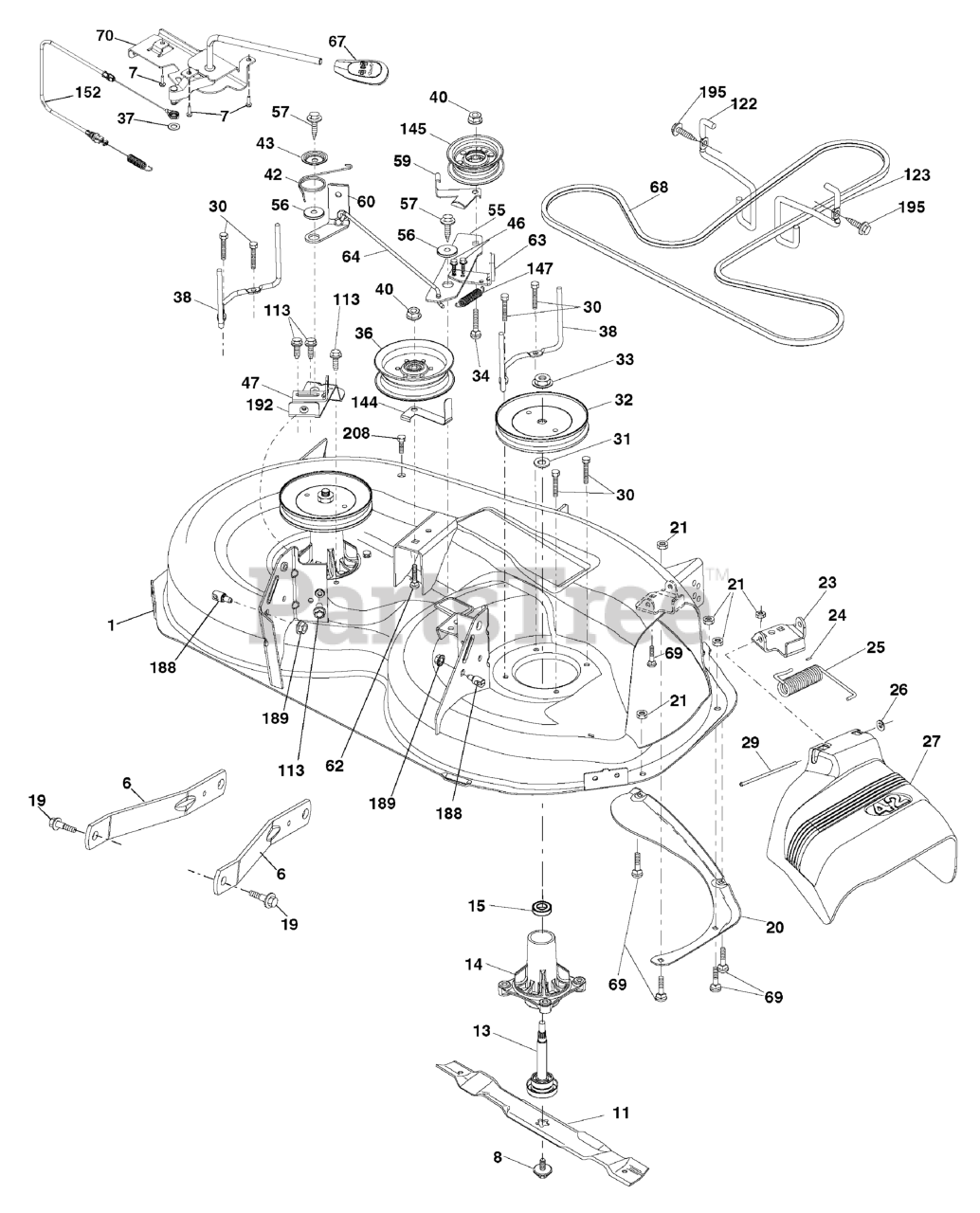

Mower Deck (7800735deck) Parts Diagram

  • Title
1

Murray 770327

Mower Housing

$866.99

$

Usually ships in 2-12 days

0

6

Murray 705090

Arm Suspension

$26.99

$

Usually ships in 2-12 days

0

7

Murray 709330

Screw #10 x 0.750

$3.99

$

Usually ships in 2-12 days

0

8

Murray 709258

Bolt/Washer asm 7/16-20 unf
(Superseded to 705059)

$19.99

$

In Stock, only 2 left!

0

11

Murray 704429

Blade, 42" Hi-Lift

$36.99

$

In Stock, only 2 left!

0

13

Murray 705058

Shaft Assembly, Mandrel
(Superseded to 705057)

$106.99

$

In Stock, Qty 20+

0

14

Murray 705048

Housing, Mandrel
(Superseded to 705057)

$106.99

$

In Stock, Qty 20+

0

15

Murray 704992

Bearing, Ball, Mandrel

$23.99

$

Usually ships in 2-12 days

0

19

Murray 705100

Bolt, Shoulder

$15.99

$

Usually ships in 2-12 days

0

20

Murray 709112

Baffle, Vortex
(Superseded to 705026)

$54.99

$

In Stock, only 2 left!

0

21

Murray 709430

Nut, Crownlock 5/16-18 unc
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

23

Murray 709247

Bracket, Deflector

$5.99

$

Usually ships in 2-12 days

0

24

Murray 709007

Cap, Sleeve

$3.99

$

Usually ships in 2-12 days

0

25

Murray 709286

Spring, Torsion, Deflector
(Superseded to 705103)

$18.99

$

In Stock, only 1 left!

0

26

Murray 709016

Nut, Push
(Superseded to 704991)

$7.99

$

In Stock, Qty 6

0

27

Murray 708604

Shield, Deflector
(Superseded to 705149)

$120.99

$

Usually ships in 2-12 days

0

29

Murray 709051

Rod, Hinge
(Superseded to 705009)

$7.99

$

In Stock, Qty 5

0

30

Murray 709158

Screw Thdrol Rolling Wsh Hd
(Superseded to 709771)

$7.49

$

In Stock, only 4 left!

0

31

Murray 709215

Washer, Spacer
(Superseded to 705050)

$7.99

$

In Stock, only 2 left!

0

32

Murray 705115

Pulley, Mandrel
(Superseded to 709731)

$34.99

$

In Stock, Qty 13

0

33

Murray 709296

Nut, Toplock, Flanged
(Superseded to 705134)

$11.99

$

In Stock, only 1 left!

0

34

Murray 709417

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$4.99

$

Usually ships in 2-12 days

0

36

Murray 705114

Pulley, Idler, Flat
(Superseded to 709729)

$70.99

$

In Stock, only 1 left!

0

37

Murray 709228

Washer 13/32 x 13/16 x 16 Ga.

$4.49

$

Usually ships in 2-12 days

0

38

Murray 705248

Keeper Belt Mandrel

$

$

Not available

40

Murray 709088

Nut, Lock Flg. 3/8-16 unc

$8.99

$

In Stock, only 3 left!

0

42

Murray 705123

Spring Torsion Brake

$9.99

$

Usually ships in 2-12 days

0

43

Murray 705108

Spring Torsion Retainer

$8.49

$

Usually ships in 2-12 days

0

46

Murray 709067

Screw Thd Roll 1/4-20 x 5/8
(Superseded to 705013)

$8.99

$

In Stock, only 1 left!

0

47

Murray 705105

Bracket Clutch Cable

$8.99

$

Usually ships in 2-12 days

0

55

Murray 705254

Arm, Idler

$

$

Not available

56

Murray 705124

Spacer, Retainer

$12.99

$

In Stock, only 4 left!

0

57

Murray 709149

Screw Hexwsh Thd 3/8-16 x 1

$9.99

$

Usually ships in 2-12 days

0

59

Murray 709079

Guard, Tuv Idler (94)
(Superseded to 705018)

$9.99

$

In Stock, only 1 left!

0

60

Murray 705112

Arm Brake Mower

$37.99

$

Usually ships in 2-12 days

0

62

Murray 705342

Bolt Rdhd Sqnk 3/8-16 unc x 2

$6.99

$

Usually ships in 2-12 days

0

63

Murray 705128

Arm Brake Mower

$41.99

$

In Stock, only 1 left!

0

64

Murray 708340

Linkage Brake

$33.99

$

Usually ships in 2-12 days

0

67

Murray 770320

Handle, Clutch Cable

$14.99

$

Usually ships in 2-12 days

0

68

Murray 704430

V-Belt

$131.99

$

Usually ships in 2-12 days

0

69

Murray 709422

Bolt Rdhd Sqnk 5/16-18 x 5/8
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

70

Murray 770336

Clutch Asm. Manual

$109.99

$

Usually ships in 2-12 days

0

113

Murray 709147

Screw 5/16-18
(Superseded to 705320)

$10.99

$

In Stock, only 1 left!

0

122

Murray 705109

Keeper Belt Eng. LH

$

$

Not available

123

Murray 705110

Keeper Belt Eng. RH

$32.99

$

In Stock, only 1 left!

0

144

Murray 705126

Keeper Belt

$13.99

$

Usually ships in 2-12 days

0

145

Murray 705061

Pulley Idler
(Superseded to 708000)

$60.99

$

Usually ships in 2-12 days

0

147

Murray 705148

Spring Return

$12.99

$

In Stock, only 1 left!

0

152

Murray 708452

Cable Clutch Manual w/Spr.

$50.99

$

Usually ships in 2-12 days

0

188

Murray 705088

Stud Fastener

$12.99

$

In Stock, only 2 left!

0

189

Murray 708491

Nut Lock Hex Flange

$7.99

$

Usually ships in 2-12 days

0

192

Murray 705111

Bracket Brake Stand LH

$29.99

$

Usually ships in 2-12 days

0

195

Murray 709148

Screw Hexwsh Thdr 3/8-16 x 3/4

$7.49

$

In Stock, only 1 left!

0

208

Murray 709191

Screw Thdrol 3/8-16 x 1/2

$4.49

$

Usually ships in 2-12 days

0

--

Murray 705057

MANDREL ASSEMBLY

Note: (Includes Housing, Shaft assembly, and bearings)

$106.99

$

In Stock, Qty 20+

0

--

Murray 708413

REPLACEMENT MOWER, Complete

$1160.99

$

Usually ships in 2-12 days

0
