7800735 (96042010000) - Yard King 42" Lawn Tractor, 17.5hp (2011) Drive Group (7800735drive) Parts Diagram

42" Lawn Tractor, 17.5hp

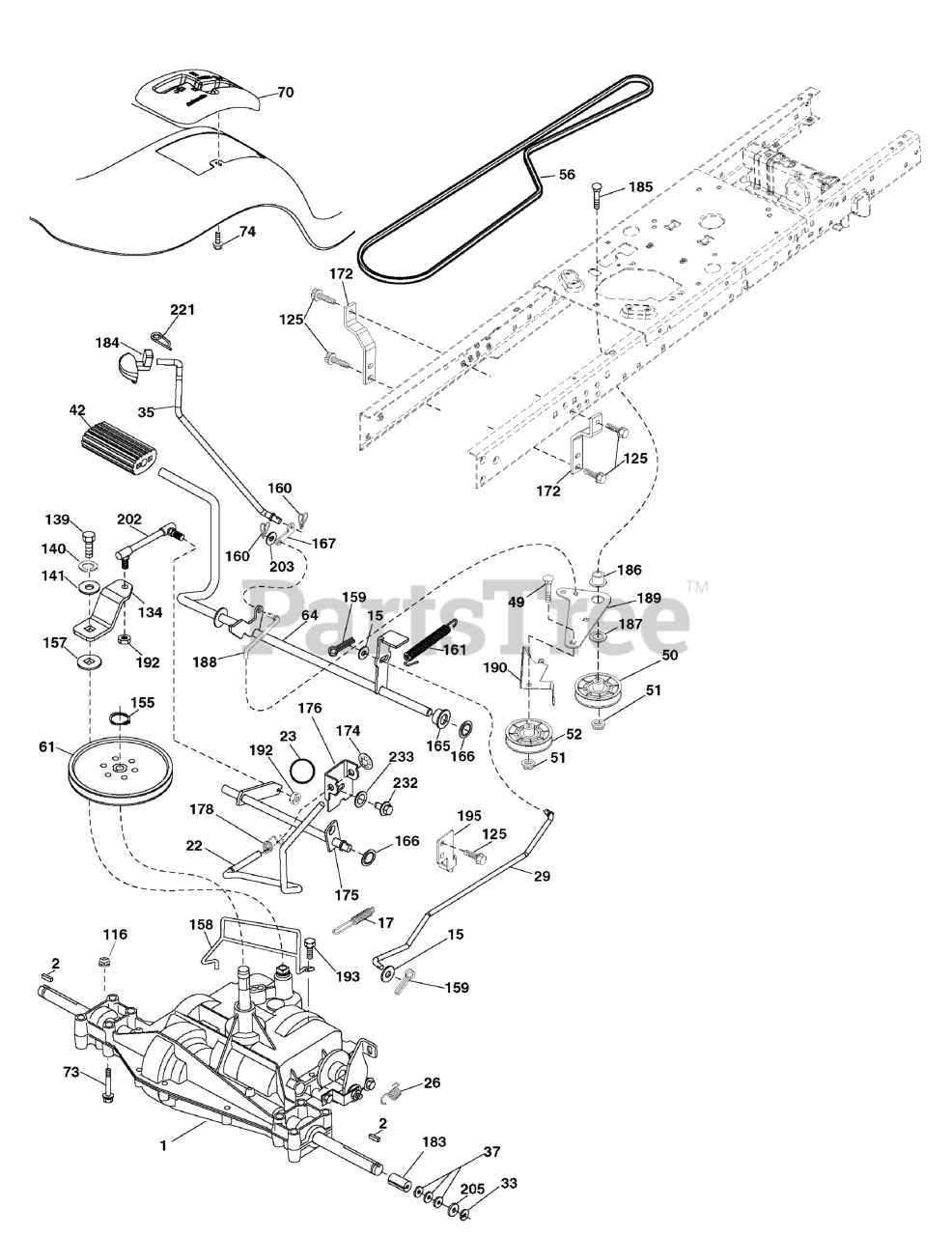

Drive Group (7800735drive) Parts Diagram

  • Title

1

Transaxle, Peerless 206-565

$

$

Not available

2

Murray 704998

Key Square

$9.49

$

Usually ships in 2-12 days

0

15

Murray 709228

Washer 13/32 x 13/16 x 16 Ga.

$4.49

$

Usually ships in 2-12 days

0

17

Murray 708307

Spring, Brake

$6.99

$

Usually ships in 2-12 days

0

22

Murray 708318

Rod Shift

$43.99

$

Usually ships in 2-12 days

0

23

Murray 709014

Knob

$11.99

$

Usually ships in 2-12 days

0

26

Murray 708312

Spring Brake RTN

$6.49

$

Usually ships in 2-12 days

0

29

Murray 708302

Rod, Brake

$44.99

$

Usually ships in 2-12 days

0

33

Murray 709020

Ring E

$4.99

$

Usually ships in 2-12 days

0

35

Murray 770335

Rod, Brake, Park

$29.99

$

Usually ships in 2-12 days

0

37

Murray 709031

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 704996)

$7.99

$

In Stock, Qty 20+

0

42

Murray 709453

Cover, Foot Pedal

$8.99

$

Usually ships in 2-12 days

0

49

Murray 709418

Bolt

$6.49

$

In Stock, only 1 left!

0

50

Murray 770315

Pulley Idler Flat

$39.99

$

In Stock, only 1 left!

0

51

Murray 709088

Lock Nut 3/8-16

$8.99

$

In Stock, only 3 left!

0

52

Murray 770314

Idler V-Groove

$31.99

$

Usually ships in 2-12 days

0

56

Murray 708246

V-Belt, Drive

$107.99

$

Usually ships in 2-12 days

0

61

Murray 709035

Pulley Transaxle

$59.99

$

Usually ships in 2-12 days

0

64

Murray 708277

Shaft Asm. Pedal Brake Control

$69.99

$

Usually ships in 2-12 days

0

70

Murray 708607

Console

$26.99

$

Usually ships in 2-12 days

0

73

Murray 709436

Bolt Hex Flghd 5/16-18 Gr. 5

$4.49

$

Usually ships in 2-12 days

0

74

Murray 709081

Screw 1/4 x 1/2
(Superseded to 705019)

$4.99

$

Usually ships in 2-12 days

0

116

Murray 708491

Nut Lock Hex Flange 5/16-18

$7.99

$

Usually ships in 2-12 days

0

125

Murray 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

134

Murray 708317

Arm Shift

$6.49

$

Usually ships in 2-12 days

0

139

Murray 709437

Bolt 1/4-20 unf Gr. 8 w/Patch

$4.99

$

Usually ships in 2-12 days

0

140

Murray 709001

Washer Lock Hvy Helical 1/4

$4.99

$

Usually ships in 2-12 days

0

141

Murray 709222

Washer 9/32 x 3/4 x 10 Ga.

$7.99

$

Usually ships in 2-12 days

0

155

Murray 709022

Ring Retainer

$14.99

$

Usually ships in 2-12 days

0

157

Murray 709008

Washer Plate Shf

$6.49

$

Usually ships in 2-12 days

0

158

Murray 708247

Keeper T/A

$23.99

$

Usually ships in 2-12 days

0

159

Murray 709446

Pin Cotter 1/8 x 3/4

$4.99

$

Usually ships in 2-12 days

0

160

Murray 705029

Retainer Clip

$8.99

$

Usually ships in 2-12 days

0

161

Murray 704989

Spring, Return, Clutch

$22.99

$

Usually ships in 2-12 days

0

165

Murray 708279

Busing Shaft Brake Hand Control

$6.49

$

Usually ships in 2-12 days

0

166

Murray 705245

Nut Push .625

$5.99

$

Usually ships in 2-12 days

0

167

Murray 705165

Latch Brake Parking

$8.99

$

Usually ships in 2-12 days

0

172

Murray 708316

Strap Torque LH

$8.49

$

Usually ships in 2-12 days

0

174

Murray 708304

Nut Push

$6.49

$

In Stock, only 1 left!

0

175

Murray 708281

Shaft Asm Shift

$21.99

$

Usually ships in 2-12 days

0

176

Murray 708280

Arm Clevis Rod Shift

$10.99

$

Usually ships in 2-12 days

0

178

Murray 708313

Spring Shift

$6.49

$

Usually ships in 2-12 days

0

183

Murray 709064

Spacer Axle

$4.99

$

Usually ships in 2-12 days

0

184

Murray 770328

Handle Parking Brake

$76.99

$

Usually ships in 2-12 days

0

185

Murray 709420

Bolt RDHD 3/8-16 unc x 2-3/4 Gr. 5

$6.49

$

In Stock, only 1 left!

0

186

Murray 705070

Spacer Retainer

$11.99

$

Usually ships in 2-12 days

0

187

Murray 709233

Washer

$6.49

$

In Stock, only 1 left!

0

188

Murray 705078

Link Clutch Ground Drive

$11.99

$

Usually ships in 2-12 days

0

189

Murray 705068

Bellcrank Ground Drive

$10.99

$

Usually ships in 2-12 days

0

190

Murray 705069

Keeper Bellcrank Ground Drive

$9.49

$

Usually ships in 2-12 days

0

192

Murray 709092

Nut Lock Center 1/4-28

$4.99

$

Usually ships in 2-12 days

0

193

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

195

Murray 708308

Bracket Brake Rod

$6.99

$

Usually ships in 2-12 days

0

202

Murray 709136

Link Shift

$75.99

$

Usually ships in 2-12 days

0

203

Murray 708477

Washer 11/32 x 11/16 x 16 Ga.

$12.99

$

Usually ships in 2-12 days

0

205

Murray 709030

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 704995)

$7.99

$

In Stock, Qty 6

0

221

Murray 705155

Retainer Spring Clip Handle

$5.99

$

Usually ships in 2-12 days

0

232

Murray 708504

Bolt 7/16-14 x 1 Gr.5

$6.49

$

Usually ships in 2-12 days

0

233

Murray 708379

Washer Serrated

$6.99

$

Usually ships in 2-12 days

0
