7800733 (96012009500) - Yard King 38" Lawn Tractor, 12.5hp (2011) Mower Deck (38L12G50X8Adeck) Parts Diagram

38" Lawn Tractor, 12.5hp

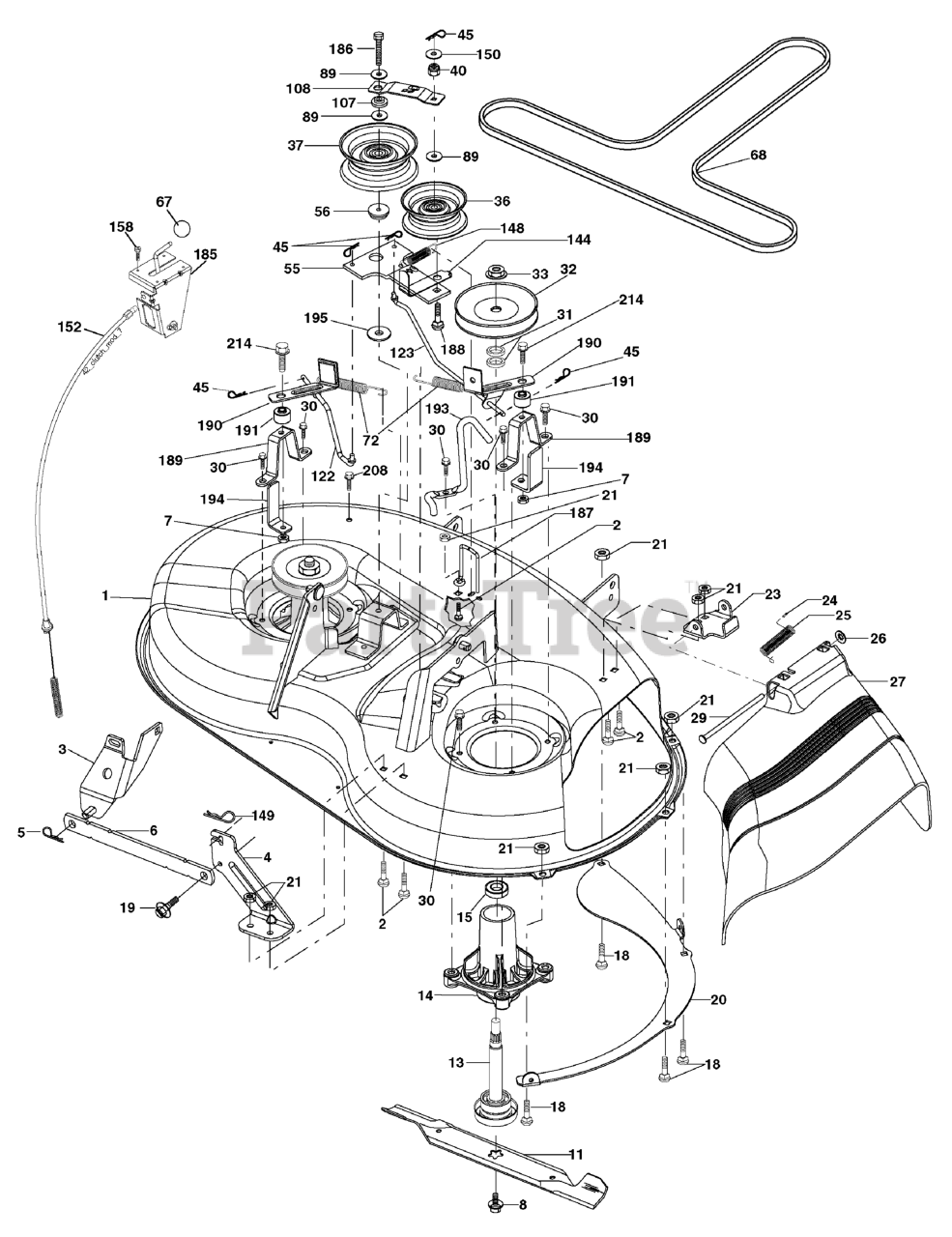

Mower Deck (38L12G50X8Adeck) Parts Diagram

  • Title

1

Murray 709246

HOUSING, Mower Assembly

$667.99

$

Usually ships in 2-12 days

0

2

Murray 709423

BOLT, Carriage, 5/16-18 x 3/4

$4.49

$

Usually ships in 2-12 days

0

3

Murray 709068

BRACKET, Assembly Fr. Sway Bar

$16.99

$

Usually ships in 2-12 days

0

4

Murray 709250

BRACKET, Deck Sway Bar, 38"/42"

$15.99

$

Usually ships in 2-12 days

0

5

Murray 709386

RETAINER, Spring

$6.49

$

In Stock, only 2 left!

0

6

Murray 709194

BAR, Sway Deck

$7.99

$

Usually ships in 2-12 days

0

7

Murray 705350

NUT, Lock Hex w/Insert, 5/16-18 UNC

$5.99

$

Usually ships in 2-12 days

0

8

Murray 709258

BOLT, 3/8-24 x 1.25 Gr 8
(Superseded to 705059)

$19.99

$

In Stock, only 2 left!

0

11

Murray 709272

BLADE, Mower

$23.99

$

Usually ships in 2-12 days

0

13

Murray 705058

SHAFT, Assembly Mandrel Vented
(Superseded to 705057)

$106.99

$

In Stock, Qty 20+

0

14

Murray 705048

HOUSING, Mandrel Vented
(Superseded to 705057)

$106.99

$

In Stock, Qty 20+

0

15

Murray 704992

BEARING, Ball Mandrel

$23.99

$

Usually ships in 2-12 days

0

18

Murray 709422

BLADE, Roundhead Squareneck, 5/16-18 x 5/8
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

19

Murray 709055

BOLT, Shoulder

$4.49

$

Usually ships in 2-12 days

0

20

Murray 709295

BAFFLE, Vortex Front

$42.99

$

Usually ships in 2-12 days

0

21

Murray 709430

NUT
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

23

Murray 709247

BRACKET, Mower Deflector

$5.99

$

Usually ships in 2-12 days

0

24

Murray 709007

CAP, Sleeve

$3.99

$

Usually ships in 2-12 days

0

25

Murray 709286

SPRING, Torsion Deflector
(Superseded to 705103)

$18.99

$

In Stock, only 1 left!

0

26

Murray 709016

NUT, Push
(Superseded to 704991)

$7.99

$

In Stock, Qty 6

0

27

Murray 709251

SHIELD, Deflector

$145.99

$

Usually ships in 2-12 days

0

29

Murray 709051

ROD, Hinge
(Superseded to 705009)

$7.99

$

In Stock, Qty 5

0

30

Murray 709158

SCREW, Threadrolling
(Superseded to 709771)

$7.49

$

In Stock, only 4 left!

0

31

Murray 709215

WASHER, Spacer
(Superseded to 705050)

$7.99

$

In Stock, only 2 left!

0

32

Murray 709096

PULLEY, Mandrel

$15.99

$

Usually ships in 2-12 days

0

33

Murray 709296

NUT, Toplock
(Superseded to 705134)

$11.99

$

In Stock, only 1 left!

0

36

Murray 709052

PULLEY, Idler Flat

$37.99

$

Usually ships in 2-12 days

0

37

Murray 709259

PULLEY, Idler Flat

$38.99

$

Usually ships in 2-12 days

0

40

Murray 709431

NUT, Crownlock 3/8-16 UNC

$5.99

$

In Stock, only 1 left!

0

45

Murray 709385

RETAINER

$11.99

$

Usually ships in 2-12 days

0

55

Murray 709058

IDLER, Arm Assembly

$12.99

$

Usually ships in 2-12 days

0

56

Murray 709127

SPACER, Retainer

$6.49

$

Usually ships in 2-12 days

0

67

Murray 709013

KNOB

$8.99

$

Usually ships in 2-12 days

0

68

Murray 709260

V-BELT

$90.99

$

Usually ships in 2-12 days

0

72

Murray 709261

SPRING, Brake Return

$6.49

$

Usually ships in 2-12 days

0

89

Murray 709226

WASHER, 13/32 x 13/16 x 11 Ga.

$6.99

$

Usually ships in 2-12 days

0

107

Murray 709056

SPACER, Retainer

$5.99

$

Usually ships in 2-12 days

0

108

Murray 709057

STIFFENER, Idler Arm

$9.49

$

Usually ships in 2-12 days

0

122

Murray 709323

ROD, Brake LH

$18.99

$

Usually ships in 2-12 days

0

123

Murray 709324

ROD, Brake RH

$14.99

$

Usually ships in 2-12 days

0

144

Murray 709265

KEEPER, Belt Idler Tension

$5.99

$

Usually ships in 2-12 days

0

148

Murray 709137

SPRING, Return Idler

$9.99

$

In Stock, Qty 5

0

149

Murray 709133

RETAINER, Spring Yellow

$7.49

$

Usually ships in 2-12 days

0

150

Murray 709222

WASHER, 9/32 x 3/4 x 10 Ga.

$7.99

$

Usually ships in 2-12 days

0

152

Murray 709262

CLUTCH, Cable 38"

$82.99

$

Usually ships in 2-12 days

0

158

Murray 709192

SCREW, Hex Thread Cut, 1/4-20 x 1/2

$5.49

$

Usually ships in 2-12 days

0

185

Murray 709217

HEAD, Assembly Cable Clutch

$91.99

$

Usually ships in 2-12 days

0

186

Murray 709165

SCREW, Hex Washer Thread Rolling, 3/8-16 x 2-3/4

$6.49

$

Usually ships in 2-12 days

0

187

Murray 709263

KEEPER, Belt M Shape

$7.99

$

Usually ships in 2-12 days

0

188

Murray 709131

BOLT, Carriage Idler

$5.49

$

Usually ships in 2-12 days

0

189

Murray 709248

BRAKE, Stand

$48.99

$

Usually ships in 2-12 days

0

190

Murray 709248

BRAKE, Arm

$48.99

$

Usually ships in 2-12 days

0

191

Murray 709249

BRAKE, Spacer

$5.99

$

Usually ships in 2-12 days

0

193

Murray 709264

KEEPER, Belt RH Mandrel

$13.99

$

Usually ships in 2-12 days

0

194

Murray 709248

BRAKE, Guard

$48.99

$

Usually ships in 2-12 days

0

195

Murray 709233

WASHER, 13/32 x 2 x 10 Ga.

$6.49

$

In Stock, only 1 left!

0

208

Murray 709191

SCREW, Thread Rolling, 3/8-16 x 1/2

$4.49

$

Usually ships in 2-12 days

0

214

Murray 709270

BOLT/WASHER Assembly, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

--

Murray 709248

BRAKE, Assembly

$48.99

$

Usually ships in 2-12 days

0

--

Murray 705057

MANDREL ASSEMBLY

$106.99

$

In Stock, Qty 20+

0

--

Murray 709376

MOWER, Complete

$1025.99

$

Usually ships in 2-12 days

0
