7800733 (96012009500) - Yard King 38" Lawn Tractor, 12.5hp (2011) Chassis Group (7800733chassis) Parts Diagram

38" Lawn Tractor, 12.5hp

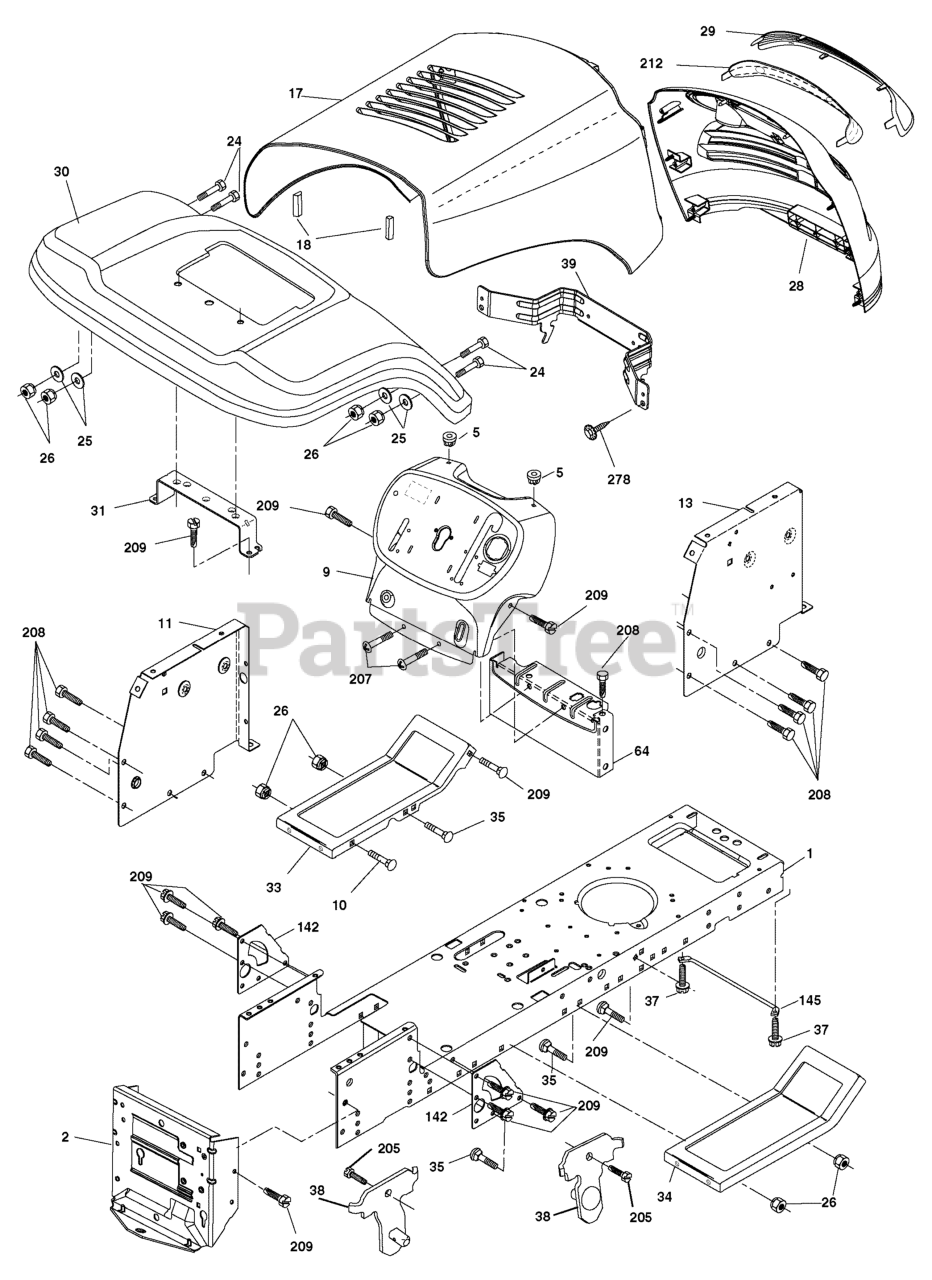

Chassis Group (7800733chassis) Parts Diagram

  • Title

1

Murray 709160

CHASSIS

$159.99

$

Usually ships in 2-12 days

0

2

Murray 709187

DRAWBAR

$48.99

$

Usually ships in 2-12 days

0

5

Murray 709104

BUMPER, Hood / Dash

$4.99

$

Usually ships in 2-12 days

0

9

Murray 709360

DASH

$83.99

$

Usually ships in 2-12 days

0

10

Murray 709424

BOLT, Carriage, 3/8-16 x 1

$4.99

$

Usually ships in 2-12 days

0

11

Murray 709167

PANEL, Dash, L.H.

$24.99

$

Usually ships in 2-12 days

0

13

Murray 709155

PANEL, Dash, R.H.

$35.99

$

Usually ships in 2-12 days

0

17

Murray 187559X615

** HOOD ASSEMBLY

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

18

Murray 709207

BUMPER, Hood Large 1.75
(Superseded to 705045)

$12.99

$

Usually ships in 2-12 days

0

24

Murray 709443

BOLT, Fin Hex 3/8-16 unc x 1 Gr. 5

$8.49

$

Usually ships in 2-12 days

0

25

Murray 709227

WASHER, 13/32 x 13/16 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

26

Murray 709433

NUT

$4.49

$

Usually ships in 2-12 days

0

28

Murray 187565X428

** GRILLE

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

29

Murray 709212

LENS

$33.99

$

Usually ships in 2-12 days

0

30

Murray 192526X615

** FENDER

Note: (This part is not serviced by Briggs & Stratton.)

$73.99

$

Usually ships in 3-10 days

0

31

Murray 709063

BRACKET, Fender Support

$6.99

$

Usually ships in 2-12 days

0

33

Murray 179716X615

** FOOTREST, LH

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

34

Murray 179717X615

** FOOTREST, RH

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

35

Murray 709416

BOLT, Carriage, Short Neck 3/8-16 x 3/4

$4.99

$

In Stock, only 1 left!

0

37

Murray 709162

SCREW, Thdrol 5/16-18 x 1/2 Tyt

$5.49

$

Usually ships in 2-12 days

0

38

Murray 709182

BRACKET ASSEMBLY, Pivot Mower Rear

$7.49

$

Usually ships in 2-12 days

0

39

Murray 709213

BRACKET, Pivot

$26.99

$

Usually ships in 2-12 days

0

64

Murray 709101

DASH, Lower STLT

$35.99

$

Usually ships in 2-12 days

0

142

Murray 709181

PLATE, Reinforcement STLT

$7.99

$

Usually ships in 2-12 days

0

145

Murray 709322

ROD, Pivot Chassis/Hood

$5.49

$

Usually ships in 2-12 days

0

205

Murray 709164

SCREW, Thdrol 3/8-16 x 1/2

$4.99

$

Usually ships in 2-12 days

0

207

Murray 709190

SCREW, Thdrol 5/16-18 x 1/2 TYTT

$4.99

$

Usually ships in 2-12 days

0

208

Murray 709191

SCREW, Thdrol 3/8-16 x 1/2

$4.49

$

Usually ships in 2-12 days

0

209

Murray 709148

SCREW, Hex Wsh Thdr 3/8-16 x 3/4

$7.49

$

In Stock, only 1 left!

0

212

Murray 709214

INSERT, Lens Reflective

$8.99

$

Usually ships in 2-12 days

0

278

Murray 709330

SCREW, #10 x .750 BOS Thread

$3.99

$

Usually ships in 2-12 days

0

--

Murray 709388

PLUG, Button

$4.99

$

Usually ships in 2-12 days

0

--

Murray 709216

PLUG, Dome, Plastic

$4.49

$

Usually ships in 2-12 days

0
