7800629 (E 20 M 42) - Murray 42" Zero-Turn Mower, 20hp Briggs & Stratton (2010) Lift Group (7501112) Parts Diagram

42" Zero-Turn Mower, 20hp Briggs & Stratton

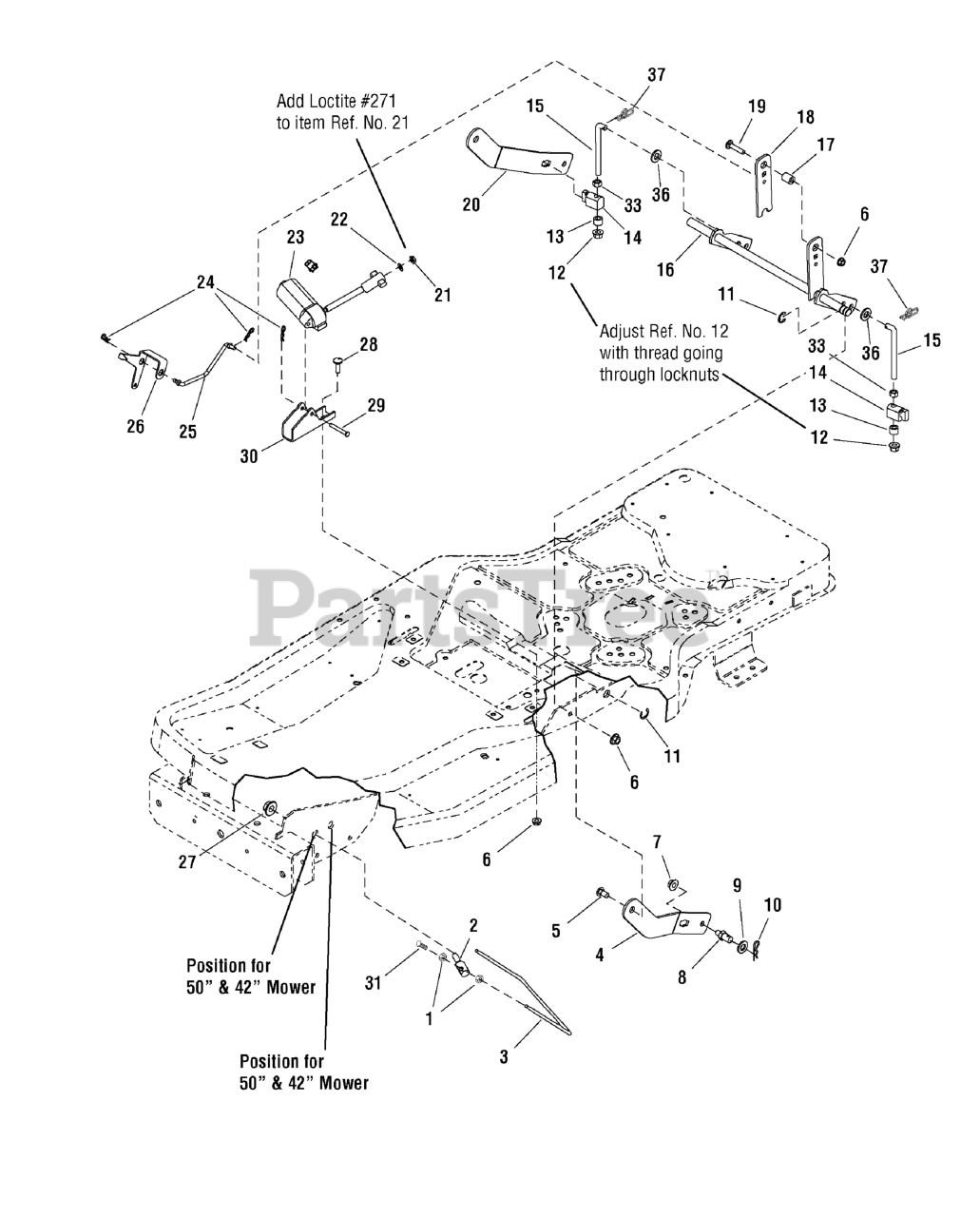

Lift Group (7501112) Parts Diagram

  • Title

1

Murray 1922007SM

NUT, Hex Jam, 7/16-14, NC-2B

$7.99

$

Usually ships in 2-12 days

0

2

Murray 1734042SM

TRUNNION

$17.99

$

Usually ships in 2-12 days

0

3

Murray 1733381SM

ROD, Bail

$46.99

$

In Stock, only 1 left!

0

4

Murray 1733535ASM

ARM, Mower Lift L.H.

$

$

Not available

5

Murray 009X67MA

BOLT, Shoulder

$5.49

$

In Stock, only 3 left!

0

6

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Murray 1931211SM

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

8

Murray 094067MA

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

9

Murray 1960170SM

WASHER, 1/2"
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

10

Murray 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Murray 1704420SM

RING, Klipring, 5/8"

$4.99

$

Usually ships in 2-12 days

0

12

Murray 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Murray 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

14

Murray 1731894SM

TRUNNION

$9.99

$

In Stock, Qty 7

0

15

Murray 1734217SM

ROD, Mower Lift 3/8-16 x 1 LG Thread

$14.99

$

In Stock, Qty 6

0

16

Murray 1733356ASM

LIFT SHAFT ASSEMBLY

$112.99

$

Usually ships in 2-12 days

0

17

Murray 1673796SM

SPACER, Powdered Metal

$24.99

$

Usually ships in 2-12 days

0

18

Murray 1734336ASM

ARM, Lift Trunnion

$62.99

$

Usually ships in 2-12 days

0

19

Murray 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

20

Murray 1733536ASM

ARM, Mower Lift R.H.
(Superseded to 1733536BMYP)

$86.99

$

Usually ships in 2-12 days

0

21

Murray 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

22

Murray 1921319SM

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Murray 1733513SM

MOTOR, Mini Actuator
(Superseded to 7600123YP)

Note: (Used on Models Before S/N 2013960660)

$159.99

$

Usually ships in 2-12 days

0

23

Murray 1738294YP

MOTOR, Mini Actuator
(Superseded to 1761788YP)

Note: (Used on Models After S/N 2013960660)

$107.99

$

In Stock, Qty 16

0

24

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

25

Murray 1733572SM

ROD, Height of Cut Indicator

Note: (Used on Models Before S/N 2013960660)

$11.99

$

In Stock, only 1 left!

0

25

Murray 7104286YP

ROD, Height of Cut Indicator

Note: (Used on Models After S/N 2013960660)

$14.99

$

Usually ships in 2-12 days

0

26

Murray 1733454SM

INDICATOR, Height of Cut

$19.99

$

Usually ships in 2-12 days

0

27

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

28

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

29

Murray 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

30

Murray 1733533ASM

BRACKET, Electric Motor Mount
(Superseded to 1733533BMYP)

Note: (Used on Models Before S/N 2013960660)

$9.99

$

Usually ships in 2-12 days

0

30

Murray 7301148BZYP

BRACKET, Electric Motor Mount

Note: (Used on Models After S/N 2013960660)

$12.99

$

Usually ships in 2-12 days

0

31

Murray 1960711SM

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

33

Murray 1916950SM

NUT, Hex 3/8 - 16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

36

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

37

Murray 7091593SM

PIN, Cotter, Self Lock, 3/8
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0
