7800629 (E 20 M 42) - Murray 42" Zero-Turn Mower, 20hp Briggs & Stratton (2010) Engine Group - 20HP (7501711) Parts Diagram

42" Zero-Turn Mower, 20hp Briggs & Stratton

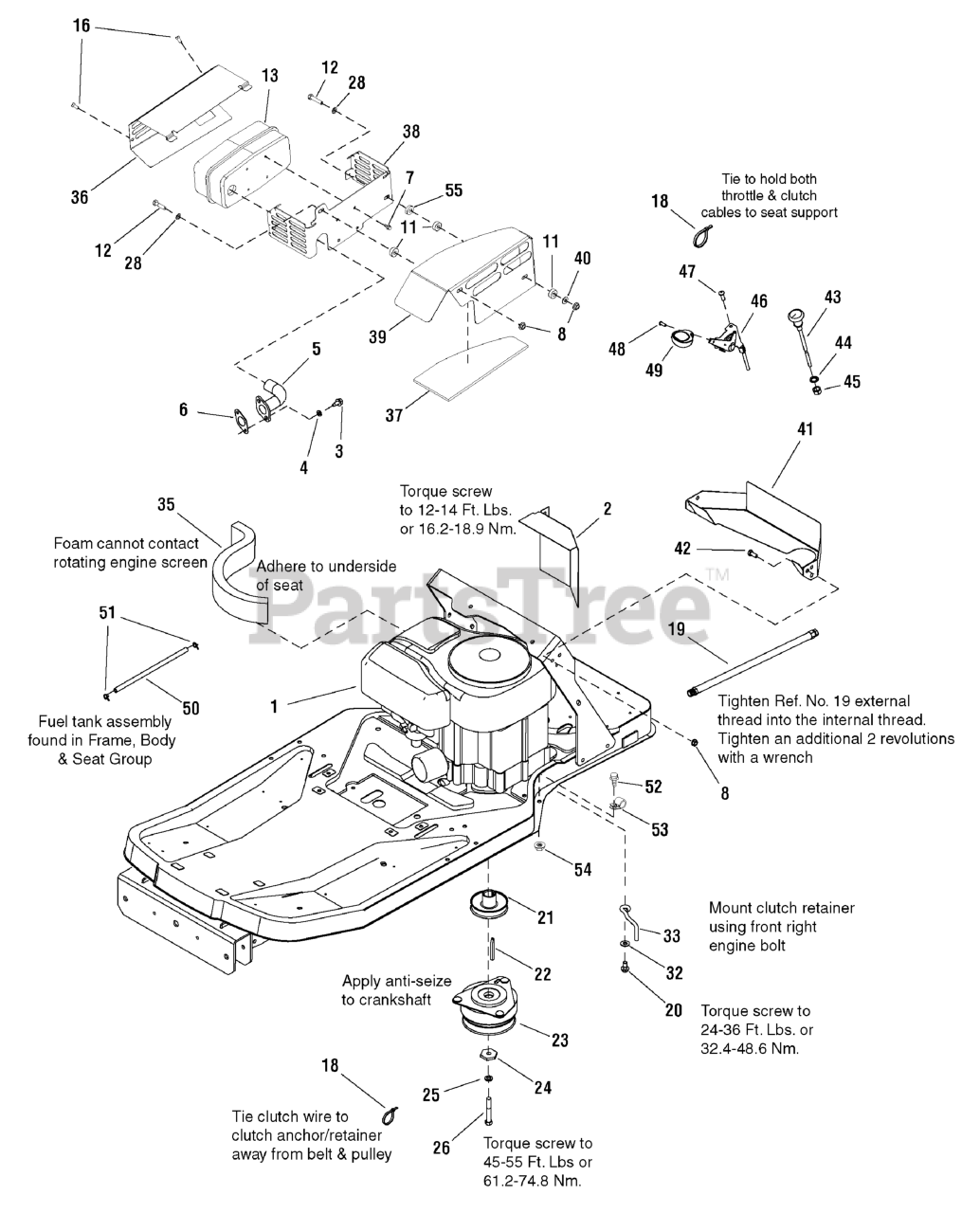

Engine Group - 20HP (7501711) Parts Diagram

  • Title

1

Murray 33M777-0120-B1

* ENGINE, 20HP B&S

Note: (Engine Model: 33M777-0120-B1)

$

$

Currently unavailable

2

Murray 7300919ASM

HEAT SHIELD, Inner

$47.99

$

Usually ships in 2-12 days

0

3

Murray 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 1 left!

0

4

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Murray 1732259SM

PIPE ASSEMBLY, Exhaust

$34.99

$

Usually ships in 2-12 days

0

6

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

7

Murray 1960295SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

8

Murray 1927557SM

NUT, Hex Whiz Lock Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

11

Murray 1667811SM

SPACER, .390 ID x .9 OD x .34 LG, Powdered Metal

$3.49

$

In Stock, Qty 20+

0

12

Murray 7091908YP

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

13

Murray 1732273SM

MUFFLER ASSEMBLY, Single

$93.99

$

In Stock, Qty 5

0

16

Murray 1960720SM

CAPSCREW, Thread Cutting, # 10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

18

Murray 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1726498SM

HOSE, Oil Drain, 16-1/2 LG

$26.99

$

Usually ships in 2-12 days

0

20

Murray 2828635SM

SCREW, Taptite Washer Head, 3/8 - 16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

21

Murray 7101716SM

PULLEY ASSEMBLY, Engine

$50.99

$

In Stock, only 1 left!

0

22

Murray 2154096SM

KEY, Hi-Pro, 1/4 x 2-1/2

$6.99

$

In Stock, only 1 left!

0

23

Murray 1686880SM

CLUTCH, Electric
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

24

Murray 1708264SM

WASHER, Hex, .453 ID x 1-1/2

$8.99

$

In Stock, Qty 5

0

25

Murray 1918199SM

LOCKWASHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Murray 7027266SM

CAPSCREW, Hex Head, 7/16-20 x 3, G5

$7.49

$

Usually ships in 2-12 days

0

28

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

32

Murray 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Murray 7101717SM

RETAINER, Clutch

$

$

Not available

35

Murray 7102139SM

SEAL, Foam Air Duct, 1 x 2-1/2, 12" LG

$47.99

$

Usually ships in 2-12 days

0

36

Murray 1734032ASM

HEAT SHIELD, Single

$41.99

$

Usually ships in 2-12 days

0

37

Murray 1734062SM

INSULATION SHIELD, Top Muffler

Note: (Qty 2 used on models after Serial No. 2013365894)

$24.99

$

Usually ships in 2-12 days

0

38

Murray 1734017ASM

MUFFLER BRACKET/HEAT SHIELD

$51.99

$

Usually ships in 2-12 days

0

39

Murray 1734044ASM

GUARD, Muffler

$66.99

$

Usually ships in 2-12 days

0

40

Murray 1933988SM

NUT, Push Pal, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

41

Murray 1734180BMYP

AIR DUCT, Inlet

$

$

Not available

42

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

46

Murray 7103123YP

CONTROL, Throttle

$43.99

$

Usually ships in 2-12 days

0

47

Murray 7090999SM

SCREW, Pan Head Taptite Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

48

Murray 7091195SM

SCREW, Pan Head Taptite Combo, 310-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

49

Murray 7100529SM

KNOB, Throttle
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

50

Murray 1734995SM

HOSE, Fuel, 19.5"

$11.99

$

Usually ships in 2-12 days

0

51

Murray 7029900SM

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

52

Murray 1930591SM

CAPSCREW, Hex Whiz Lock Flange, 5/16 - 18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

53

Murray 7900020SM

CLIP, Harness

$4.49

$

Usually ships in 2-12 days

0

54

Murray 1931277SM

NUT, Hex Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

55

Murray 1667812SM

SPACER, .390 ID x .9 OD x .70 LG

$5.99

$

In Stock, Qty 16

0
