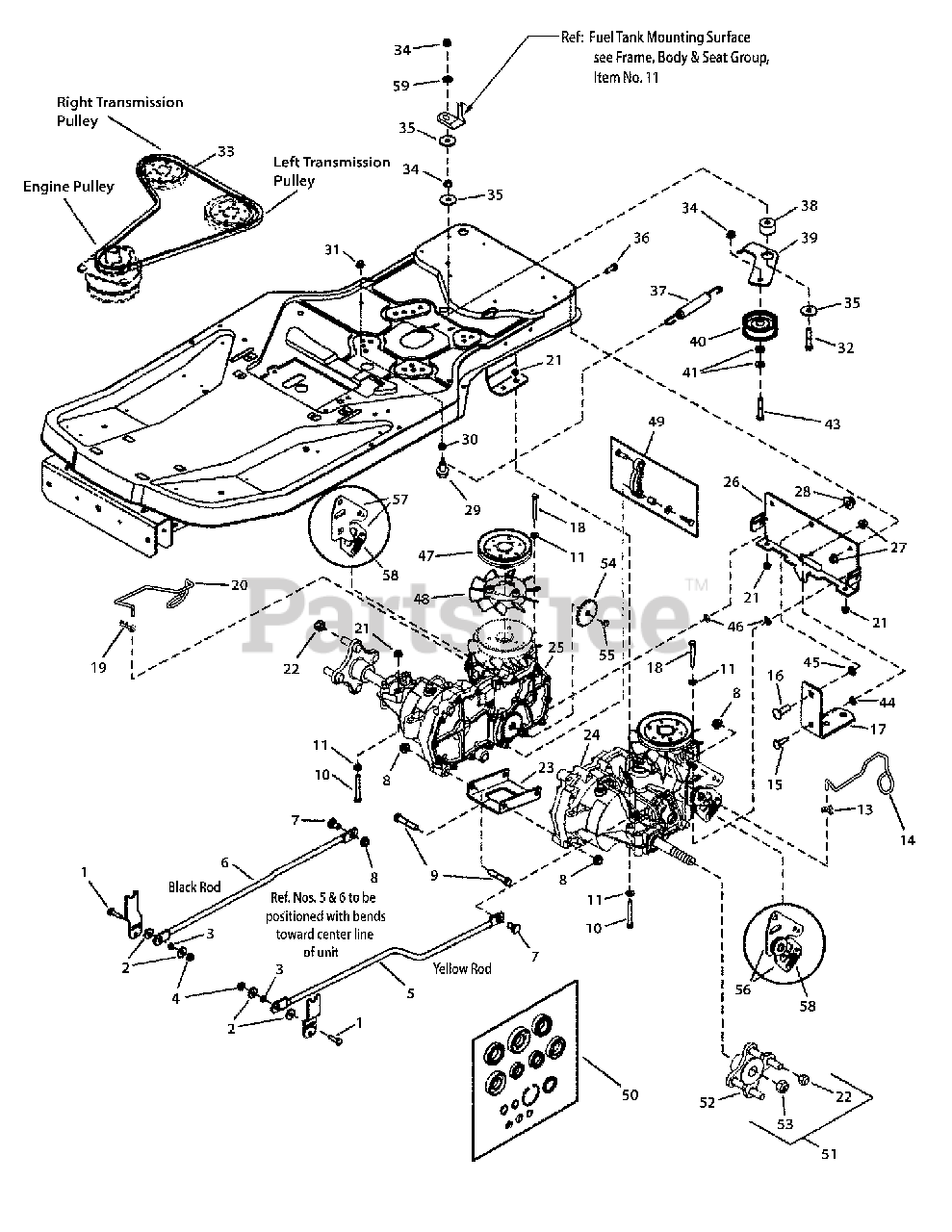

7800611-00 - Simplicity Axion 33" Zero-Turn Mower, 18.5hp Transmission Group, ZT Parts Diagram

Axion 33" Zero-Turn Mower, 18.5hp

Transmission Group, ZT Parts Diagram

  • Title

1

Simplicity 1960223

BOLT, 5/16-18 x 1-1/4" Round Head Short Square Neck GR5, Black
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 1919381

WASHER, 5/16" Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1703900

SPACER, .323 I.D. x .500 O.D. x 0.270 Long Heat Treated
(Superseded to 1703900SM)

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960684

NUT, 5/16-18 Hex Keps Conical Washer, Black
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 1727555

ROD, Control, LH (.500 Dia. X 27.88 Long)
(Superseded to 1727555SM)

$37.99

$

Usually ships in 2-12 days

0

6

Simplicity 1727556

ROD, Control, RH (.500 Dia. X 27.88 Long)
(Superseded to 1727556SM)

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 1727831

SHOULDER BOLT, 7/16-14 x 1.07 Long, GR5
(Superseded to 1727831SM)

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1930650

NUT, 7/16-14 Hex Flange Lock Two Way, Black
(Superseded to 1930650SM)

$5.49

$

In Stock, only 4 left!

0

9

Simplicity 1927120

SCREW, 7/16-14 x 2-1/4" Hex Head Cap, GR8, Black
(Superseded to 1927120SM)

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 1923141

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, GR5, Black
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1919326

WASHER, .312 (.34 I.D. x.75 O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1717024

CLIP, Rod End Clevis RH (for .188 Dia. Rod)
(Superseded to 1717024SM)

$7.49

$

In Stock, only 2 left!

0

14

Simplicity 1733913

ROD, Tow Valve LH (.156 Dia. 5.05 Long)
(Superseded to 1733913SM)

$9.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960268

BOLT, 3/8-16 x 1-1/4" Round Head Short Square Neck, Black
(Superseded to 1960268SM)

$4.49

$

In Stock, Qty 9

0

16

Simplicity 1960758

BOLT, 1/2-13 x 1-1/2" Round Head Short Square Neck, GR5, Black
(Superseded to 1960758SM)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1733305A

DRAWBAR, .250 Thick - Black
(Superseded to 1733305ASM)

$24.99

$

In Stock, only 1 left!

0

18

Simplicity 1921719

SCREW, 5/16-18 x 2-1/2" Hex Head Cap, GR5, Black
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

19

Simplicity 1725550

CLIP, Rod End Clevis LH (for .188 Dia. Rod)
(Superseded to 1725550SM)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 1733914

ROD, Tow Valve RH (.156 Dia. 5.05 Long)
(Superseded to 1733914SM)

$9.99

$

In Stock, only 1 left!

0

21

Simplicity 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 5020601

NUT, 1/2-20, (for Wheel Bolt) Silver
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1733309BM

SUPPORT, Transmission Center - Black
(Superseded to 1733309BMYP)

$49.99

$

Usually ships in 2-12 days

0

24

Simplicity 1733351

TRANSMISSION, Hydro Gear EZT LH (ZC-AHBB-2A7B-1DPX)
(Superseded to 7104656YP)

$1171.99

$

Usually ships in 2-12 days

0

25

Simplicity 1733352

TRANSMISSION, Hydro Gear EZT RH (ZC-DHBB-2A7C-1DPX)
(Superseded to 7104657YP)

$1173.99

$

Usually ships in 2-12 days

0

26

Simplicity 1733302A

SUPPORT, Transmission Rear - Black
(Superseded to 1733302ASM)

$107.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960687

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1728976

SHOULDER BOLT, 5/16-18 GR5
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

30

Simplicity 1924874

WASHER, 5/16 Flat (.341 I.D. x .87 O.D. X .06 Thick) Black
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1927557

NUT, 5/16-18 Hex Flange Lock Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

32

Simplicity 7091501

SCREW, 3/8-16 x 2-1/2 Hex Head Cap, GR 5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1732224

* V-BELT, Transmission Drive (HA Sect. 54.40 Effective Length)
(Superseded to 1732224SM)

$

$

Not available

34

Simplicity 1930645

NUT, 3/8-16 Hex Flange Lock Two Way, Black
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 1924356

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

36

Simplicity 1921210

SCREW, 3/8-16 x 1" Hex Head Cap, GR5, Black
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

37

Simplicity 1734316

SPRING, Extension
(Superseded to 1734316SM)

$11.99

$

In Stock, only 1 left!

0

38

Simplicity 1729007

SPACER, .387 I.D. x 1.50 O.D. x 1.04 Long (Powdered Metal) Yellow
(Superseded to 1729007SM)

$11.99

$

In Stock, Qty 20+

0

39

Simplicity 1733303BM

ARM, Idler (Transmission Drive) Black
(Superseded to 1733303ASM)

$28.99

$

Usually ships in 2-12 days

0

40

Simplicity 1721133

PULLEY, Idler
(Superseded to 5106480FS)

$32.99

$

In Stock, Qty 5

0

41

Simplicity 1924940

WASHER, .375 Flat (.41 I.D. x .87 O.D.)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1923701

SCREW, 3/8-16 x 2" Hex Head Cap, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 1931942

NUT, Push Pal, 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1960759

NUT, Push Pal, 1/2"
(Superseded to 1960759SM)

$3.99

$

Usually ships in 2-12 days

0

46

Simplicity 1933988

NUT, Push Pal .312 Dia. Thread .625 O.D., Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

47

Simplicity 1728073

PULLEY, 4-1/2" Transmission
(Superseded to 1728073SM)

$

$

Not available

48

Simplicity 1728074

FAN, 6" Transmission
(Superseded to 1728074SM)

$43.99

$

Usually ships in 2-12 days

0

49

Simplicity 1728075

BRAKE ARM & PIN, Hydro-Gear
(Superseded to 1728075SM)

$50.99

$

In Stock, only 1 left!

0

50

Simplicity 1728060

KIT, Hydro Seal
(Superseded to 1728060SM)

$140.99

$

Usually ships in 2-12 days

0

51

Simplicity 1687283

KIT, Hub Replacement (includes one Hub & one Axle Nut)
(Superseded to 1687283SM)

$100.99

$

Usually ships in 2-12 days

0

52

HUB, Wheel, EZT Transmission (Hydro-Gear #70314)

$

$

Not available

53

NUT, Axle, EZT Transmission (Hydro-Gear #51901)

$

$

Not available

54

Simplicity 1728076

GEAR, Parking Brake, Transmission
(Superseded to 1728076SM)

$37.99

$

Usually ships in 2-12 days

0

55

Simplicity 1716622

CLIP, E Transmission Parking Brake
(Superseded to 1716622SM)

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 1735490

KIT, L.H. Control Arm
(Superseded to 1735490SM)

$108.99

$

Usually ships in 2-12 days

0

57

Simplicity 1735491

KIT, R.H. Control Arm
(Superseded to 1735491SM)

$92.99

$

Usually ships in 2-12 days

0

58

Simplicity 1735483

SPRING, Extension (Used on Hydro-Gear P/N ZC-AHBB-2A7B-1DPX and ZC-AHBB-2A7B-1DPX)
(Superseded to 1735483SM)

$16.99

$

In Stock, Qty 6

0

59

Simplicity 7032030

WASHER, Flat, .406X1.25X.132 ZP
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0
