7800560C-A - Murray 38" Rear-Engine Riding Mower, Gear Drive, 13.5hp (2012) 38" Mower Deck - Housing, Arbors & Blades (7501127_7501334) Parts Diagram

38" Rear-Engine Riding Mower, Gear Drive, 13.5hp

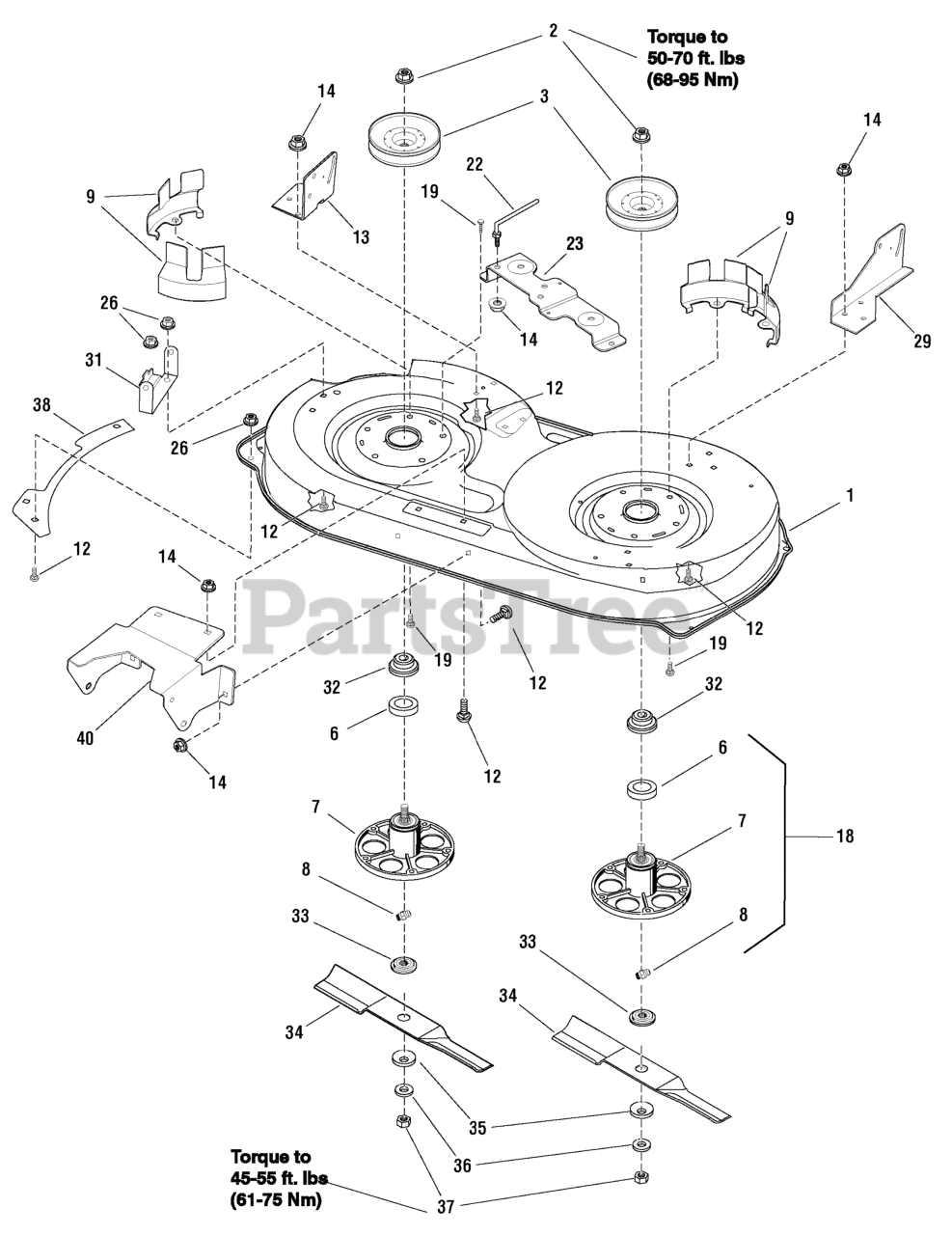

38" Mower Deck - Housing, Arbors & Blades (7501127_7501334) Parts Diagram

  • Title
1

Murray 7600086YP

HOUSING, Mower Deck, 38 in

$

$

Not available

2

Murray 15X140MA

NUT, Nylock Ring, Pulley 9/16-18

$9.99

$

In Stock, Qty 7

0

3

Murray 092852MA

PULLEY, Jackshaft

$31.99

$

In Stock, only 1 left!

0

6

Murray 1705897SM

BALL BEARING, Jackshaft

$8.49

$

In Stock, Qty 20+

0

7

Murray 1001200MA

JACKSHAFT HOUSING

$82.99

$

In Stock, only 3 left!

0

8

Murray 092530MA

FITTING, Lubrication

$5.49

$

Usually ships in 2-12 days

0

9

Murray 7300859BMYP

BELT GUIDE

$31.99

$

In Stock, only 2 left!

0

12

Murray 7090799SM

BOLT, Carriage 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7300738BMYP

BRACKET, Right Suspension

$26.99

$

Usually ships in 2-12 days

0

14

Murray 015X79MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 1001200MA

JACKSHAFT HOUSING ASSEMBLY

Note: (Includes Ref. Nos. 5, 6 & 8)

$82.99

$

In Stock, only 3 left!

0

19

Murray 0025X7MA

BOLT, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

22

Murray 094781MA

BELT GUIDE (5/16-18)

$60.99

$

Usually ships in 2-12 days

0

23

Murray 7300732BMYP

BRACKET, Brake Mounting 38 in

$47.99

$

Usually ships in 2-12 days

0

26

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

29

Murray 7300735BMYP

BRACKET, Left Suspension

$23.99

$

Usually ships in 2-12 days

0

31

Murray 7300812ZMA

BRACKET, Hinge
(Superseded to 7300812BMYP)

$47.99

$

Usually ships in 2-12 days

0

32

Murray 1001197MA

SPACER, Pulley

$12.99

$

In Stock, only 2 left!

0

33

Murray 690411MA

BLADE ADAPTER

$

$

Not available

34

Murray 7101751AMA

BLADE, 38 in
(Superseded to 1001427E701MA)

$27.99

$

In Stock, only 2 left!

0

35

Murray 17X166MA

WASHER, Belleville

$13.99

$

In Stock, Qty 18

0

36

Murray 17X165MA

WASHER, Hardened

$16.99

$

In Stock, only 4 left!

0

37

Murray 15X100MA

NUT, Blade, 9/16-18

$3.99

$

In Stock, Qty 10

0

$16.99

$

Usually ships in 2-12 days

0

40

Murray 7300734BMYP

BRACKET, Front Hanger

$38.99

$

Usually ships in 2-12 days

0
