7800376 - Simplicity Axion 42" Zero-Turn Mower, 20hp Lift Group Parts Diagram

Axion 42" Zero-Turn Mower, 20hp

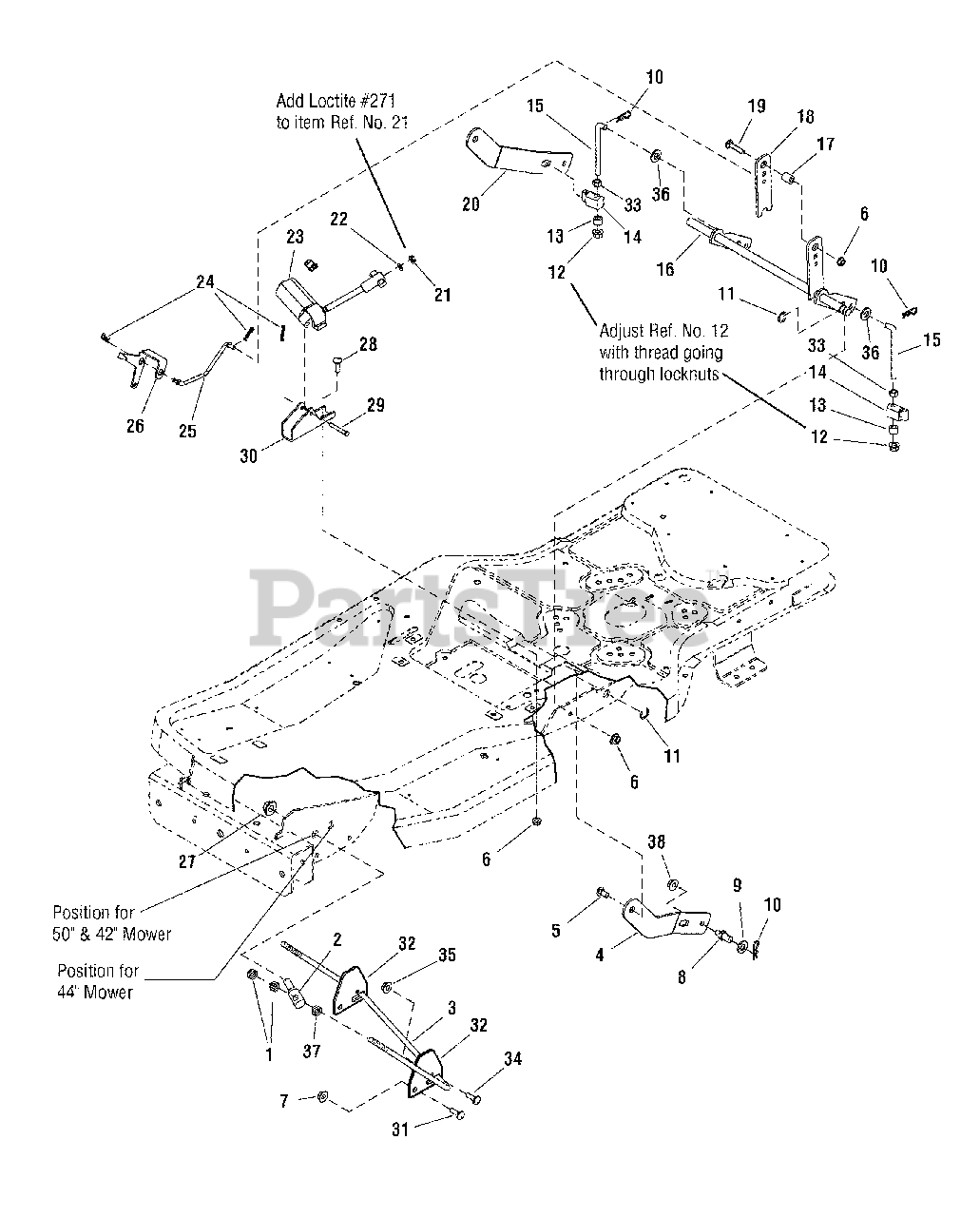

Lift Group Parts Diagram

  • Title

1

Simplicity 1922007SM

NUT, Hex Jam, 7/16-14, NC-2B

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 1734042SM

TRUNNION

$17.99

$

Usually ships in 2-12 days

0

3

Simplicity 1733381SM

ROD, Bail

$46.99

$

In Stock, only 1 left!

0

4

Simplicity 1733535ASM

ARM, Mower Lift L.H.

$

$

Not available

5

Simplicity 009X67MA

BOLT, Shoulder

$5.49

$

In Stock, only 3 left!

0

6

Simplicity 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1931211SM

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703333)

Note: (Used on 44" & 50" Models only)

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 094067MA

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

9

Simplicity 1960170SM

WASHER, 1/2"
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1704420SM

RING, Klipring, 5/8"

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1731894SM

TRUNNION

$9.99

$

In Stock, Qty 7

0

15

Simplicity 1734217SM

ROD, Mower Lift 3/8-16 x 1 LG Thread

$14.99

$

In Stock, Qty 6

0

16

Simplicity 1733356ASM

LIFT SHAFT ASSEMBLY

$112.99

$

Usually ships in 2-12 days

0

17

Simplicity 1673796SM

SPACER, Powdered Metal

$24.99

$

Usually ships in 2-12 days

0

18

Simplicity 1734336ASM

ARM, Lift Trunnion

$62.99

$

Usually ships in 2-12 days

0

19

Simplicity 1931337SM

BOLT, Carriage, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 1733536ASM

ARM, Mower Lift R.H.
(Superseded to 1733536BMYP)

$86.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960757SM

NUT, Hex, 1/4-20 L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 1921319SM

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1733513SM

MOTOR, Mini Actuator
(Superseded to 7600123YP)

$159.99

$

Usually ships in 2-12 days

0

24

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

25

Simplicity 1733572SM

ROD, Height of Cut Indicator

$11.99

$

In Stock, only 1 left!

0

26

Simplicity 1733454SM

INDICATOR, Height of Cut

$19.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930644SM

NUT, Hex Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

28

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1, G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

29

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1733533ASM

BRACKET, Electric Motor Mount
(Superseded to 1733533BMYP)

$9.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960711SM

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

Note: (Used on 44" & 50" Models only)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1734379ASM

PLATE, Pivot Lock

Note: (Used on 44" & 50" Models only)

$23.99

$

Usually ships in 2-12 days

0

33

Simplicity 1916950SM

NUT, Hex 3/8 - 16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1931317SM

BOLT, Carriage, 1/4 - 20 x 3/4
(Superseded to 703101)

Note: (Used on 44" & 50" Models only)

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 1960294SM

NUT, Hex Flange Whiz Lock, 1/4 - 20
(Superseded to 703233)

Note: (Used on 44" & 50" Models only)

$4.49

$

In Stock, Qty 9

0

36

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 1918213SM

NUT, Hex, 7/16 - 14

$4.99

$

In Stock, only 2 left!

0

38

Simplicity 1930645SM

NUT, Hex Two-Way Lock Flange, 3/8 - 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
