7800376 - Simplicity Axion 42" Zero-Turn Mower, 20hp 42" Mower Deck - Housing & Arbor Group Parts Diagram

Axion 42" Zero-Turn Mower, 20hp

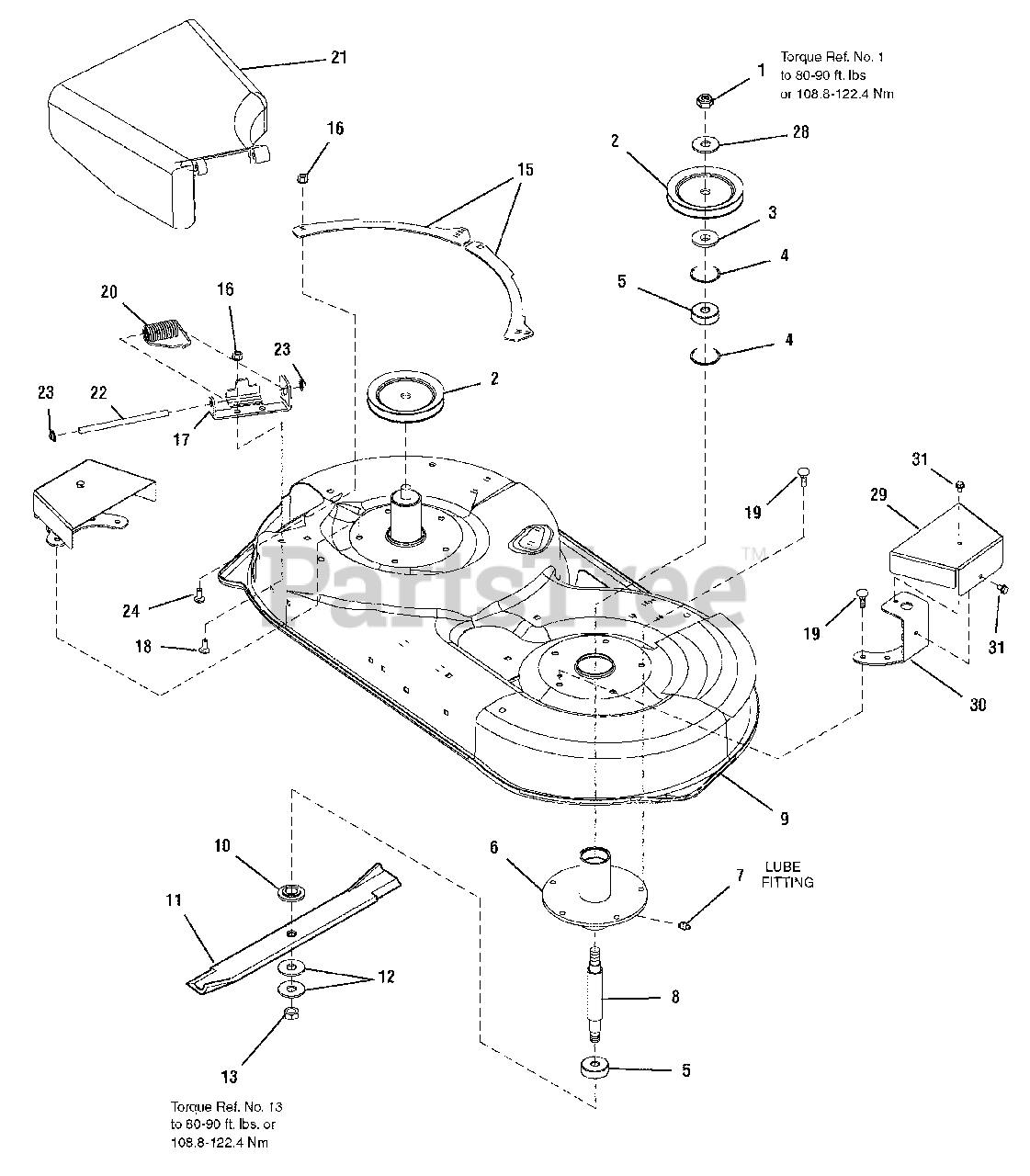

42" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 1922014SM

NUT, Hex Nylock, 5/8
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

2

Simplicity 1734064SM

PULLEY, Drive

$35.99

$

Usually ships in 2-12 days

0

3

Simplicity 7072440SM

SPACER, Pulley

$9.49

$

In Stock, Qty 19

0

4

Simplicity 7012491SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 2108202SM

BEARING, Spindle

$11.99

$

In Stock, Qty 20+

0

6

Simplicity 1731372ASM

TUBE & PLATE ASSEMBLY, Spindle
(Superseded to 1731372BMYP)

$98.99

$

In Stock, Qty 11

0

7

Simplicity 1704314SM

LUBE, Fitting
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 7072537SM

SHAFT, Spindle

$43.99

$

In Stock, Qty 20+

0

9

Simplicity 1687280SM

HOUSING, 42"

$505.99

$

Usually ships in 2-12 days

0

10

Simplicity 1731917SM

WASHER, Spindle Blade

$9.49

$

In Stock, Qty 20+

0

11

Simplicity 1731898ASM

BLADE
(Superseded to 1731898BZYP)

$20.99

$

In Stock, Qty 7

0

12

Simplicity 7024467SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 7091633SM

NUT, Hex, 9/16

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

16

Simplicity 1960686SM

NUT, ESNA, 5/16
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 094956E701MA

BRACKET, Hinge

$22.99

$

Usually ships in 2-12 days

0

18

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

19

Simplicity 1923683SM

SCREW, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

20

Simplicity 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

21

Simplicity 094707MA

DEFLECTOR

$108.99

$

In Stock, only 3 left!

0

22

Simplicity 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

23

Simplicity 1960093SM

PUSHNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

24

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 7091546SM

LOCKWASHER, Internal Tooth, 5/8
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1734701ASM

COVER, Pulley

$42.99

$

Usually ships in 2-12 days

0

30

Simplicity 1734039ASM

SUPPORT, Pulley Cover

$34.99

$

Usually ships in 2-12 days

0

31

Simplicity 1924856SM

SCREW, Taptite, 5/16 - 18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
