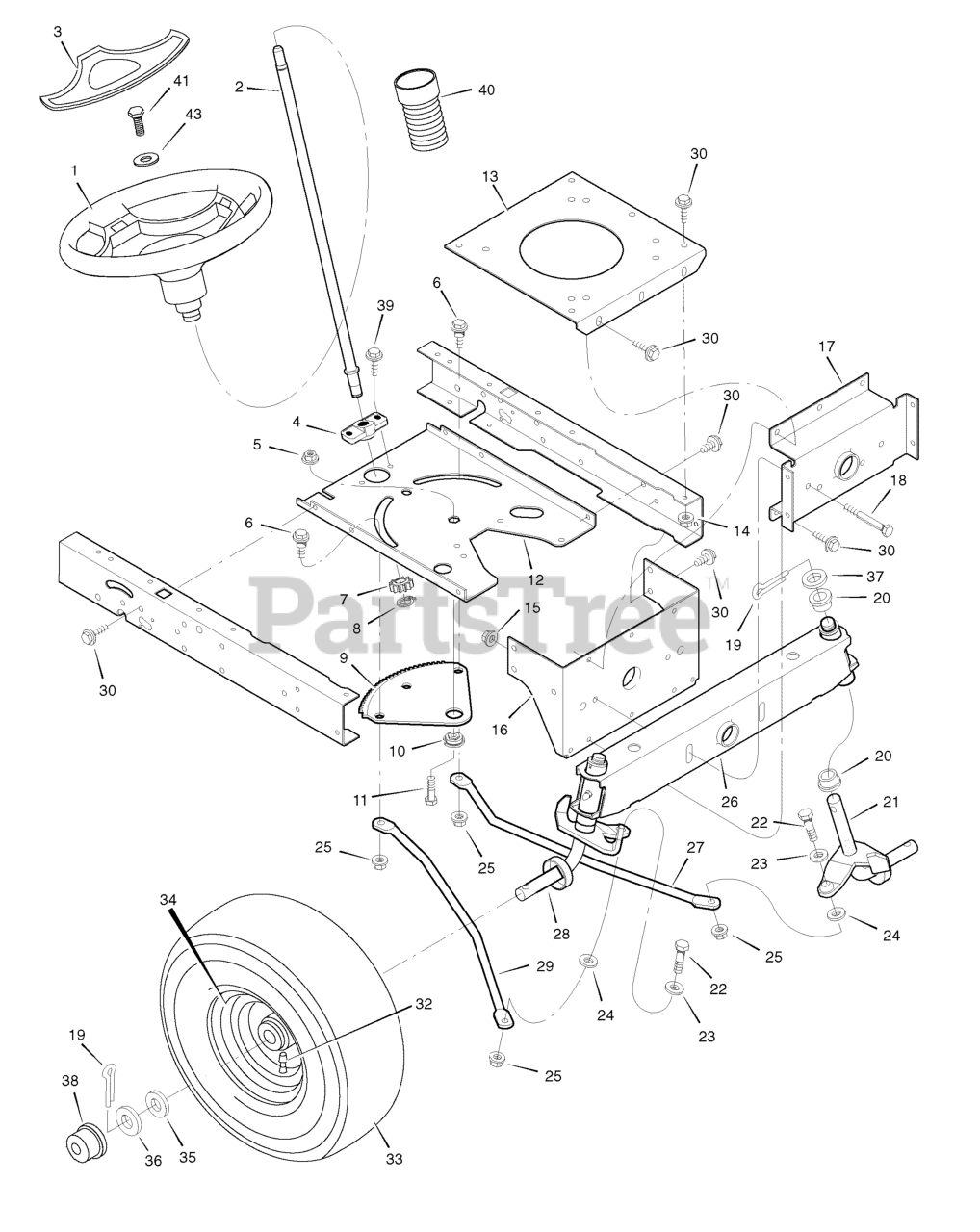

7800321 (405628x151) - Murray 40" Lawn Tractor (2008) Steering Parts Diagram

40" Lawn Tractor

Steering Parts Diagram

  • Title
1

Murray 1001980MA

WHEEL, Steering

$87.99

$

Usually ships in 2-12 days

0

2

Murray 690625MA

POST, Steering

$

$

Not available

3

Murray 1001982MA

COVER, Steering Wheel

$24.99

$

In Stock, only 1 left!

0

4

Murray 094124MA

Bearing

Note: (Included with Ref. No. 2)

$14.99

$

In Stock, only 1 left!

0

5

Murray 15X111MA

Nut, Flange **

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

BOLT, Shoulder

$9.99

$

In Stock, Qty 11

0

7

Murray 1001893MA

GEAR, Pinion **
(Superseded to 690183MA)

$

$

Not available

8

Murray 011X25MA

Ring, Snap **

$4.49

$

In Stock, Qty 5

0

9

Murray 094121MA

GEAR, Sector

$

$

Not available

10

Murray 094123MA

BEARING

$12.99

$

In Stock, only 1 left!

0

11

Murray 7027168SM

BOLT
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Murray 7300867TYP

PLATE, Steering

$52.99

$

Usually ships in 2-12 days

0

13

Murray 7300863TYP

PLATE, Engine

$35.99

$

Usually ships in 2-12 days

0

14

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

15

Murray 15X118MA

NUT, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 7300751TYP

BRACKET, Hanger

$53.99

$

Usually ships in 2-12 days

0

17

Murray 7300742TYP

AXLE, Hanger

$38.99

$

Usually ships in 2-12 days

0

18

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

PIN, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 690150MA

BEARING

$8.99

$

In Stock, only 2 left!

0

21

Murray 7400232TYP

SPINDLE ASSEMBLY, Left
(Superseded to 7400232ZMA)

$204.99

$

In Stock, only 1 left!

0

22

$4.49

$

In Stock, only 1 left!

0

23

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53MA

WASHER
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

25

Murray 7091619SM

NUT, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

26

Murray 7500692TYP

AXLE ASSEMBLY

$165.99

$

Usually ships in 2-12 days

0

27

Murray 7101805TYP

DRAG LINK, Left

$26.99

$

Usually ships in 2-12 days

0

28

Murray 7400231TYP

SPINDLE ASSEMBLY, Right
(Superseded to 7400231ZMA)

$

$

Not available

29

Murray 7101806ZMA

DRAG LINK, Right

$26.99

$

Usually ships in 2-12 days

0

30

$

$

Not available

32

Murray 024373MA

STEM, Valve

$

$

Not available

33

$91.99

$

Usually ships in 2-12 days

0

--

$

$

Not available

34

Murray 7101798MA

WHEEL & TIRE ASSEMBLY

$

$

Not available

35

$4.99

$

In Stock, only 4 left!

0

36

$4.99

$

In Stock, Qty 15

0

37

$3.99

$

Usually ships in 2-12 days

0

38

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 8

0

39

$4.99

$

In Stock, Qty 20+

0

40

Murray 092059MA

BELLOWS

$9.49

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

SCREW, Hex

$4.99

$

Usually ships in 2-12 days

0

43

$5.49

$

Usually ships in 2-12 days
