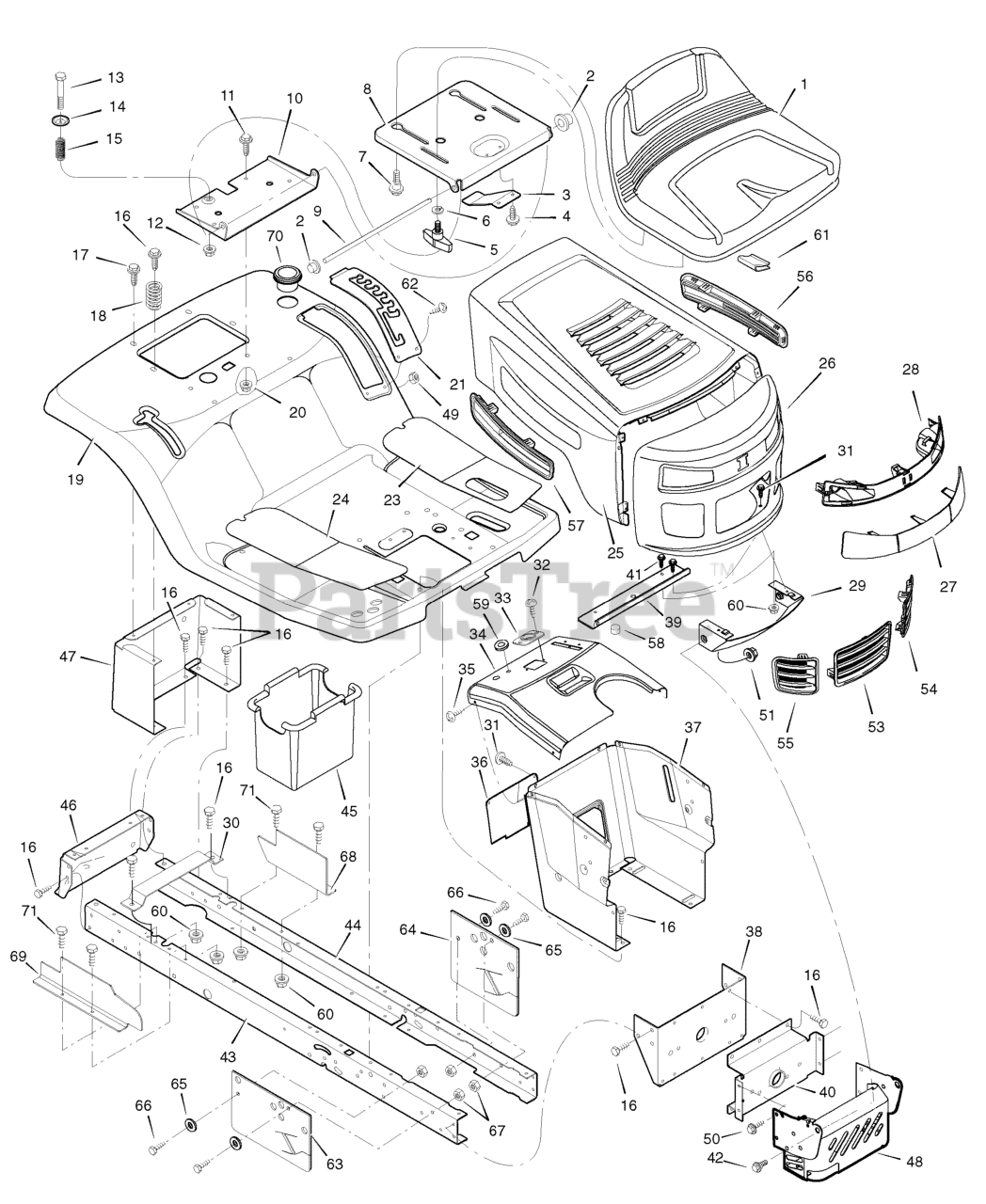

7800321 (405628x151) - Murray 40" Lawn Tractor (2008) Chassis & Hood Parts Diagram

40" Lawn Tractor

Chassis & Hood Parts Diagram

  • Title

$222.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

BOLT, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

WASHER
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

BOLT, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 7300875ZMA

SUPPORT, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 7300794ZMA

BRACKET, Pivot

$32.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

BOLT
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

BOLT, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$3.99

$

Usually ships in 2-12 days

0

15

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 7300842ZYP

DECK, Seat

$319.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 7300839ZMA

PLATE, Index

$19.99

$

Usually ships in 2-12 days

0

23

Murray 094999MA

MAT, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

MAT, Right

$

$

Not available

25

Murray 7300786ZMA

HOOD, WM1

$284.99

$

Usually ships in 2-12 days

0

26

$125.99

$

Usually ships in 2-12 days

0

$28.99

$

Usually ships in 2-12 days

0

28

Murray 1001805MA

HOUSING, Headlamp

$31.99

$

Usually ships in 2-12 days

0

29

Murray 1740530ZMA

BRACKET, Lower Pivot

$31.99

$

Usually ships in 2-12 days

0

30

Murray 7300741ZMA

SUPPORT, Battery

$10.99

$

Usually ships in 2-12 days

0

31

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

BEARING, Steering

$5.49

$

Usually ships in 2-12 days

0

$71.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 7300750TMA

PANEL, Access

$12.99

$

Usually ships in 2-12 days

0

37

Murray 7300872TMA

SUPPORT, Dash

$142.99

$

Usually ships in 2-12 days

0

38

Murray 7300751ZMA

BRACKET, Rear Hanger

$54.99

$

Usually ships in 2-12 days

0

39

Murray 1740529ZYP

BRACKET, Support

$27.99

$

Usually ships in 2-12 days

0

40

Murray 7300742ZMA

AXLE, Hanger

$37.99

$

Usually ships in 2-12 days

0

41

$4.99

$

In Stock, only 1 left!

0

42

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 7300870ZMA

FRAME, Right

$43.99

$

In Stock, only 2 left!

0

44

Murray 7300869ZMA

FRAME, Left

$46.99

$

In Stock, only 2 left!

0

45

Murray 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 7300864ZMA

PLATE, Hitch

$41.99

$

Usually ships in 2-12 days

0

47

Murray 7300832ZMA

PANEL, Rear

$69.99

$

Usually ships in 2-12 days

0

48

Murray 1740501AYP

SHIELD, Heat

$125.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

50

$4.99

$

Usually ships in 2-12 days

0

51

Murray 7091619SM

NUT
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

53

Murray 1741762MA

INSERT, Center Grille

$42.99

$

Usually ships in 2-12 days

0

54

Murray 1741763MA

INSERT, Left Grille

$16.99

$

Usually ships in 2-12 days

0

55

Murray 1741764MA

INSERT, Right Grille

$16.99

$

Usually ships in 2-12 days

0

56

Murray 1741760MA

INSERT, Left Hood

$11.99

$

Usually ships in 2-12 days

0

57

Murray 1741761MA

INSERT, Right Hood

$11.99

$

Usually ships in 2-12 days

0

58

$3.49

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

GROMMET, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

61

Murray 028X83MA

S-CLIP, Black

$3.99

$

In Stock, only 2 left!

0

62

$5.49

$

In Stock, only 1 left!

0

63

Murray 1735615MA

GUARD, Rubber, RH, Black

$19.99

$

Usually ships in 2-12 days

0

64

Murray 1735621MA

GUARD, Rubber, LH, Black

$19.99

$

Usually ships in 2-12 days

0

65

$

$

Not available

66

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

67

Murray 15X123MA

NUT, Hexlock

$3.99

$

Usually ships in 2-12 days

0

68

Murray 1735545TYP

PLATE, Cover, LH

$34.99

$

Usually ships in 2-12 days

0

69

Murray 1735546TYP

PLATE, Cover, RH

$39.99

$

Usually ships in 2-12 days

0

70

Murray 1741770MA

HOLDER, Cup

$11.99

$

Usually ships in 2-12 days

0

71

Murray 01X121MA

BOLT, Hex
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

--

Murray 1002050MA

PARTS BAG, Assembly

$20.99

$

Usually ships in 2-12 days

0

--

Murray 7102060

MANUAL, Parts List

$

$

Currently unavailable

--

Murray 7102059

INSTRUCTION BOOK

$

$

Currently unavailable
