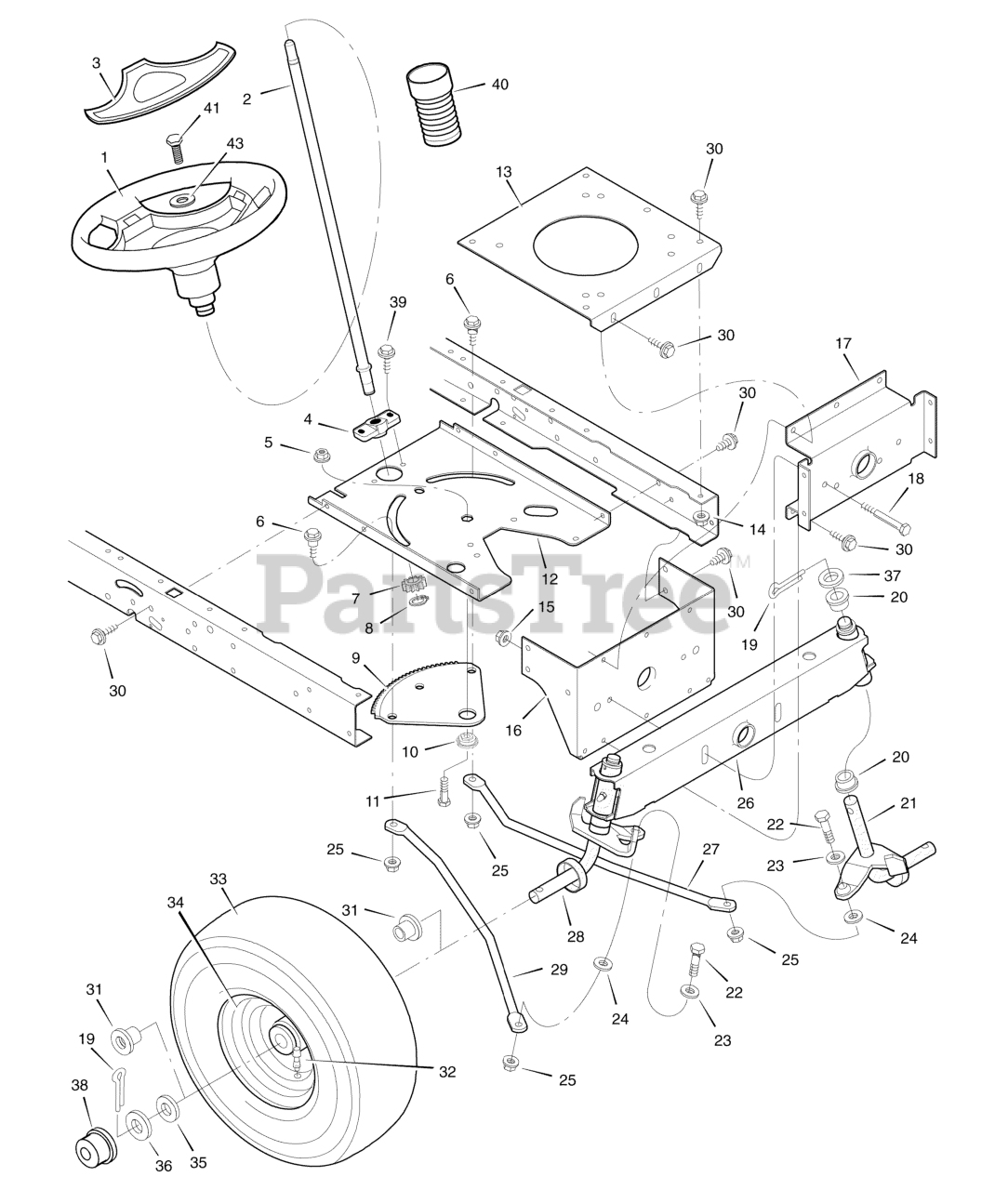

7800294 (385002x78D) - Murray 38" Lawn Tractor (2008) Steering Parts Diagram

38" Lawn Tractor

Steering Parts Diagram

  • Title
1

Murray 1001980MA

Wheel, Steering

$87.99

$

Usually ships in 2-12 days

0

2

Murray 690625MA

Post, Steering

$

$

Not available

3

Murray 1001982MA

Cover, Steering Wheel

$24.99

$

In Stock, only 1 left!

0

4

Murray 094124MA

Bearing

Note: (Included with Ref. No. 2)

$14.99

$

In Stock, only 1 left!

0

5

Murray 15X111MA

Nut, Flange *

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 11

0

7

Murray 1001893MA

Gear, Pinion
(Superseded to 690183MA)

Note: (Included with Ref. No. 2)

$

$

Not available

8

Murray 011X25MA

Ring, Snap *

$4.49

$

In Stock, Qty 5

0

9

Murray 094121MA

Gear, Sector

$

$

Not available

10

Murray 094123MA

Bearing

$12.99

$

In Stock, only 1 left!

0

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Murray 7300867TYP

Plate, Steering

$52.99

$

Usually ships in 2-12 days

0

13

Murray 094006E701MA

Plate, Engine

$114.99

$

Usually ships in 2-12 days

0

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

15

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 1001270E701MA

Bracket, Hanger

$165.99

$

Usually ships in 2-12 days

0

17

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

18

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 690150MA

Bearing

$8.99

$

In Stock, only 2 left!

0

21

Murray 094576E701MA

Spindle Assembly, Left

$186.99

$

Usually ships in 2-12 days

0

22

$4.49

$

In Stock, only 1 left!

0

23

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 1001460E701MA

Axle Assembly

$108.99

$

Usually ships in 2-12 days

0

27

Murray 7101805TYP

Drag Link, Left

$26.99

$

Usually ships in 2-12 days

0

28

Murray 094575E701MA

Spindle Assembly, Right

$173.99

$

Usually ships in 2-12 days

0

29

Murray 7101806TYP

Drag Link, Right

$26.99

$

Usually ships in 2-12 days

0

30

$

$

Not available

31

Murray 091334MA

Bearing, Wheel

$6.99

$

Usually ships in 2-12 days

0

32

Murray 024373MA

Stem, Valve

$

$

Not available

33

Murray 024380MA

Tire **

$

$

Not available

--

$

$

Not available

34

Murray 094581650MA

Wheel and Tire Assembly **

$159.99

$

In Stock, only 1 left!

0

35

$4.99

$

In Stock, only 4 left!

0

36

$4.99

$

In Stock, Qty 15

0

37

$3.99

$

In Stock, only 2 left!

0

38

Murray 094618MA

Hub Cap

$5.99

$

In Stock, only 4 left!

0

39

$4.99

$

In Stock, Qty 20+

0

40

Murray 092059MA

Bellows

$9.49

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

43

$5.49

$

Usually ships in 2-12 days

0
