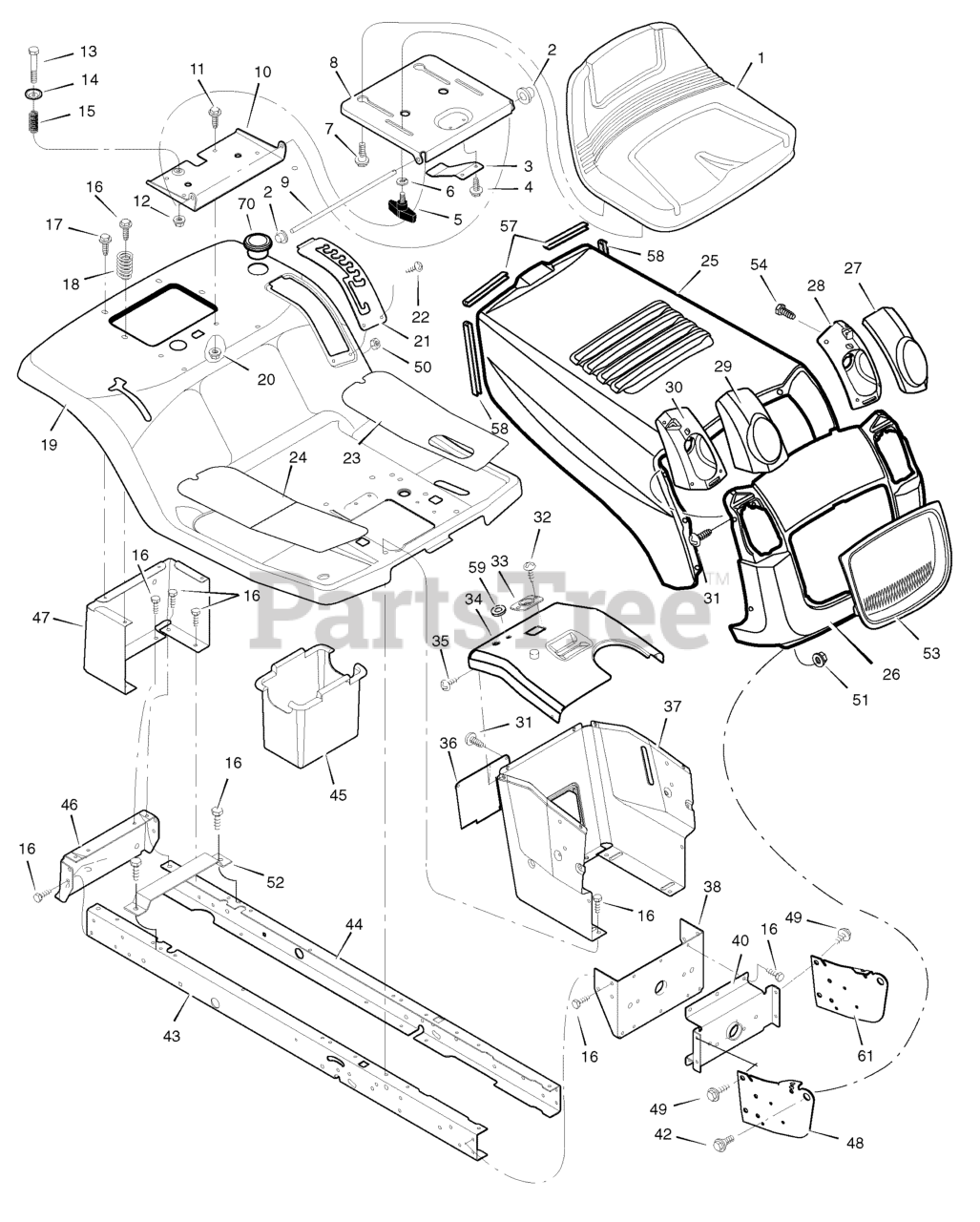

7800294 (385002x78D) - Murray 38" Lawn Tractor (2008) Chassis & Hood Parts Diagram

38" Lawn Tractor

Chassis & Hood Parts Diagram

  • Title

$222.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

BOLT, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

WASHER
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

BOLT, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 7300875RYP

SUPPORT, Seat

$50.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 7300794RYP

BRACKET, Seat Pivot

$31.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

BOLT
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

BOLT, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155ZMA

WASHER, Cup

$3.99

$

Usually ships in 2-12 days

0

15

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 7300843RYP

DECK, Seat

$341.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 7300839RYP

PLATE, Lift

$19.99

$

Usually ships in 2-12 days

0

22

$5.49

$

In Stock, only 1 left!

0

23

Murray 094999MA

MAT, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

MAT, Right

$

$

Not available

25

$193.99

$

Usually ships in 2-12 days

0

26

Murray 7300780TYP

GRILLE, X1/X3

$188.99

$

Usually ships in 2-12 days

0

27

Murray 1001546MA

LENS, Left

$13.99

$

In Stock, only 2 left!

0

28

Murray 1001548MA

HOUSING. Left Headlamp

$28.99

$

Usually ships in 2-12 days

0

29

Murray 1001545MA

LENS, Right

$13.99

$

In Stock, only 2 left!

0

30

Murray 1001547MA

Housing, Right Headlamp

$

$

Not available

31

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

BEARING, Steering

$5.49

$

Usually ships in 2-12 days

0

$71.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 7300750TMA

PANEL, Access

$12.99

$

Usually ships in 2-12 days

0

37

Murray 7300872TMA

SUPPORT, Dash

$142.99

$

Usually ships in 2-12 days

0

38

Murray 7300751TYP

BRACKET, Rear Hanger

$53.99

$

Usually ships in 2-12 days

0

40

Murray 7300742TYP

AXLE, Hanger

$38.99

$

Usually ships in 2-12 days

0

42

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1001927E717MA

FRAME, Right
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

44

Murray 1001928E717MA

FRAME, Left

$93.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 7300864TYP

PLATE, Hitch

$43.99

$

Usually ships in 2-12 days

0

47

Murray 7300832TYP

PANEL, Rear

$71.99

$

Usually ships in 2-12 days

0

48

Murray 7300847TYP

SUPPORT, Right Grille

$21.99

$

Usually ships in 2-12 days

0

49

$4.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

51

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

52

Murray 7300741TYP

SUPPORT, Battery

$10.99

$

Usually ships in 2-12 days

0

53

Murray 1001541MA

INSERT, Grille

$

$

Not available

54

Murray 26X259MA

SCREW, Hex Head

$4.49

$

In Stock, only 4 left!

0

57

Murray 1001652MA

TRIM, Hood (3.75")
(Superseded to 7102404YP)

$6.99

$

Usually ships in 2-12 days

0

58

Murray 1001653MA

TRIM, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

GROMMET, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

61

Murray 7300873TYP

SUPPORT, Left Grille

$22.99

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

HOLDER, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 1002050MA

BAG, Parts

$20.99

$

Usually ships in 2-12 days

0

--

Murray 7102001

INSTRUCTION BOOK

$

$

Currently unavailable

--

Murray 7102000

MANUAL, Parts List

$

$

Currently unavailable
