7800275 (385048x114) - Murray 38" Lawn Tractor (2008) Mower Housing Parts Diagram

38" Lawn Tractor

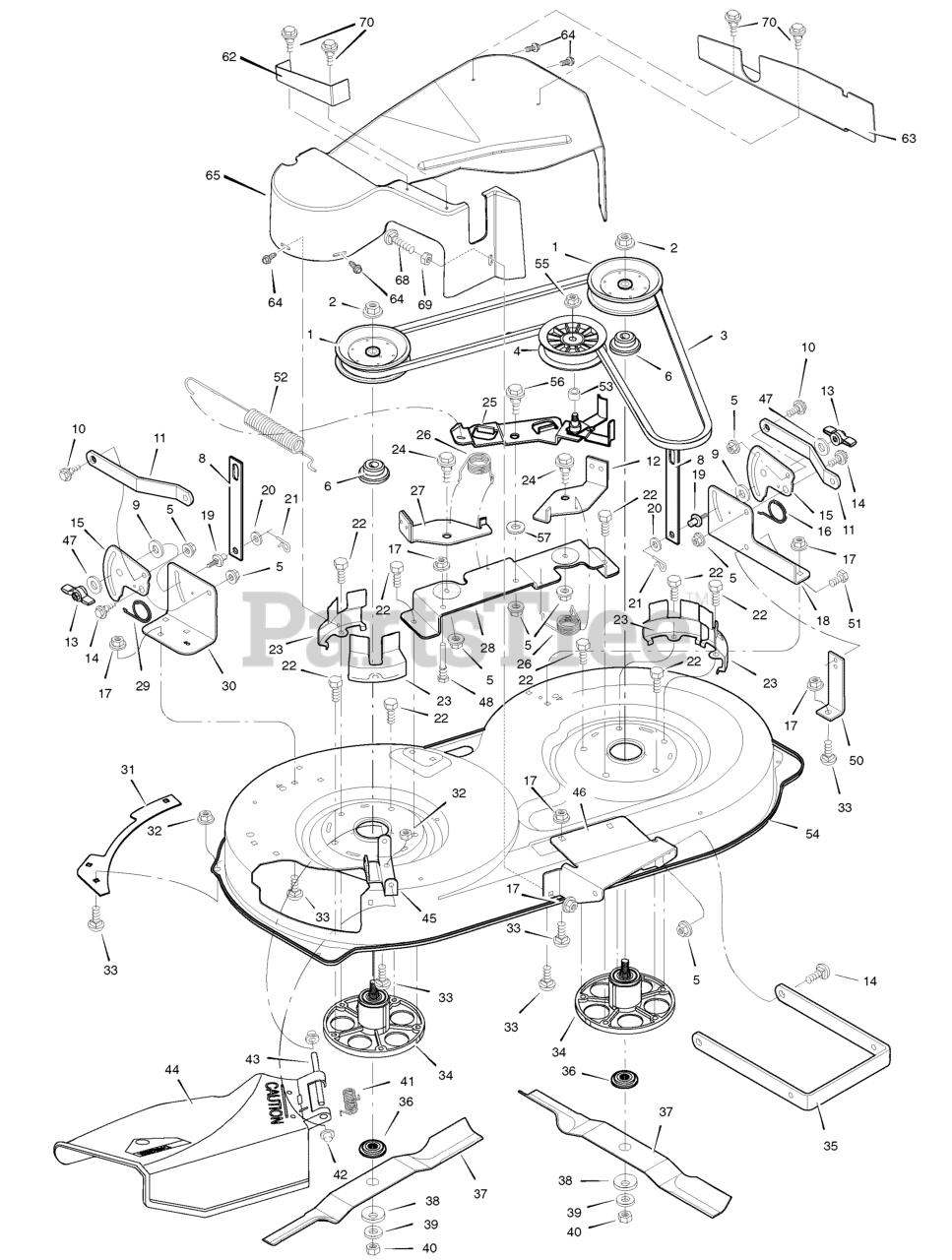

Mower Housing Parts Diagram

  • Title
1

Murray 092852MA

PULLEY, Jackshaft

$31.99

$

In Stock, only 1 left!

0

2

Murray 15X140MA

NUT, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 037X86MA

BELT, Mower Drive

$43.99

$

Usually ships in 2-12 days

0

4

Murray 091801MA

PULLEY, Idler

$24.99

$

In Stock, Qty 7

0

5

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 1001197MA

SPACER, Pulley

Note: (Included with Ref. No. 34)

$12.99

$

In Stock, only 2 left!

0

8

Murray 7300749ZMA

LINK, Lift
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

9

Murray 094137MA

PAD, Friction

$6.99

$

In Stock, Qty 8

0

10

Murray 009X52MA

BOLT, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 7300826ZMA

BRACKET, Suspension
(Superseded to 7300826BMYP)

$15.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701MA

PAD ASSEMBLY, Left Brake

$

$

Not available

13

Murray 094068MA

KNOB
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

BOLT, Shoulder

$4.99

$

In Stock, only 2 left!

0

15

Murray 7300878ZMA

PLATE, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

$4.99

$

In Stock, only 2 left!

0

17

Murray 7090585MA

NUT, Flange

$3.99

$

In Stock, Qty 7

0

18

Murray 7300735ZMA

BRACKET, Left Suspension

$24.99

$

Usually ships in 2-12 days

0

19

Murray 095194MA

PIN, Hanger

$20.99

$

In Stock, only 1 left!

0

20

$5.49

$

In Stock, Qty 11

0

21

Murray 0031X4MA

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

$5.49

$

Usually ships in 2-12 days

0

23

Murray 7300859ZMA

GUIDE, Belt
(Superseded to 7300859BMYP)

$31.99

$

In Stock, only 2 left!

0

24

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 6

0

25

Murray 1001499MA

ARM, Idler

$148.99

$

Usually ships in 2-12 days

0

26

$4.99

$

In Stock, only 2 left!

0

27

Murray 7400243ZMA

PAD ASSEMBLY, Right Brake
(Superseded to 7400243BMYP)

$94.99

$

Usually ships in 2-12 days

0

28

Murray 7300732ZMA

BRACKET ASSEMBLY, Brake

$45.99

$

Usually ships in 2-12 days

0

29

$4.99

$

In Stock, Qty 8

0

30

Murray 7300738ZMA

BRACKET, Right Suspension

$19.99

$

Usually ships in 2-12 days

0

$15.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

33

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

34

Murray 1001200MA

MANDRELL

Note: (Includes Ref. No. 6)

$82.99

$

In Stock, only 3 left!

0

35

Murray 7300767ZMA

BRACKET, Suspension

$47.99

$

Usually ships in 2-12 days

0

36

Murray 690411MA

ADAPTER, Blade

$

$

Not available

37

Murray 7101751AMA

BLADE
(Superseded to 1001427E701MA)

$27.99

$

In Stock, only 2 left!

0

38

$13.99

$

In Stock, Qty 18

0

39

$16.99

$

In Stock, only 4 left!

0

$3.99

$

In Stock, Qty 10

0

41

$6.49

$

In Stock, Qty 9

0

42

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707MA

DEFLECTOR ASSEMBLY

$108.99

$

In Stock, only 3 left!

0

45

Murray 7300812ZMA

BRACKET, Deflector
(Superseded to 7300812BMYP)

$47.99

$

Usually ships in 2-12 days

0

46

Murray 7300734ZMA

BRACKET, Front Hanger

$36.99

$

Usually ships in 2-12 days

0

47

$

$

Not available

48

Murray 094781MA

GUIDE, Belt

$60.99

$

Usually ships in 2-12 days

0

50

Murray 7300766ZMA

BRACKET, Support
(Superseded to 7300766BMYP)

$23.99

$

Usually ships in 2-12 days

0

51

$

$

Not available

52

Murray 165X118MA

SPRING, Extension

$10.99

$

Usually ships in 2-12 days

0

53

$

$

Not available

54

Murray 7500877ZMA

HOUSING, Export Blade

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 47 & 51.)

$911.99

$

Usually ships in 2-12 days

0

55

Murray 015X98MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

56

Murray 009X72MA

BOLT, Shoulder

$

$

Not available

57

$6.49

$

Usually ships in 2-12 days

0

62

Murray 1735614ZMA

PLATE, Guard 38" RH

$25.99

$

Usually ships in 2-12 days

0

63

Murray 1735566ZMA

PLATE, Guard 38" LH

$36.99

$

Usually ships in 2-12 days

0

64

$4.99

$

In Stock, only 1 left!

0

65

Murray 1735560MA

COVER, Guard

$330.99

$

Usually ships in 2-12 days

0

68

Murray 002X81MA

BOLT, Carriage, 5/16-18 x 1.50

$3.49

$

Usually ships in 2-12 days

0

69

Murray 15X123MA

NUT, Hex Lock 3/8-18

$3.99

$

Usually ships in 2-12 days

0

70

Murray 26X214MA

SCREW HEXHEAD TAP

$4.49

$

Usually ships in 2-12 days

0
