7800275 (385048x114) - Murray 38" Lawn Tractor (2008) Electrical System Parts Diagram

38" Lawn Tractor

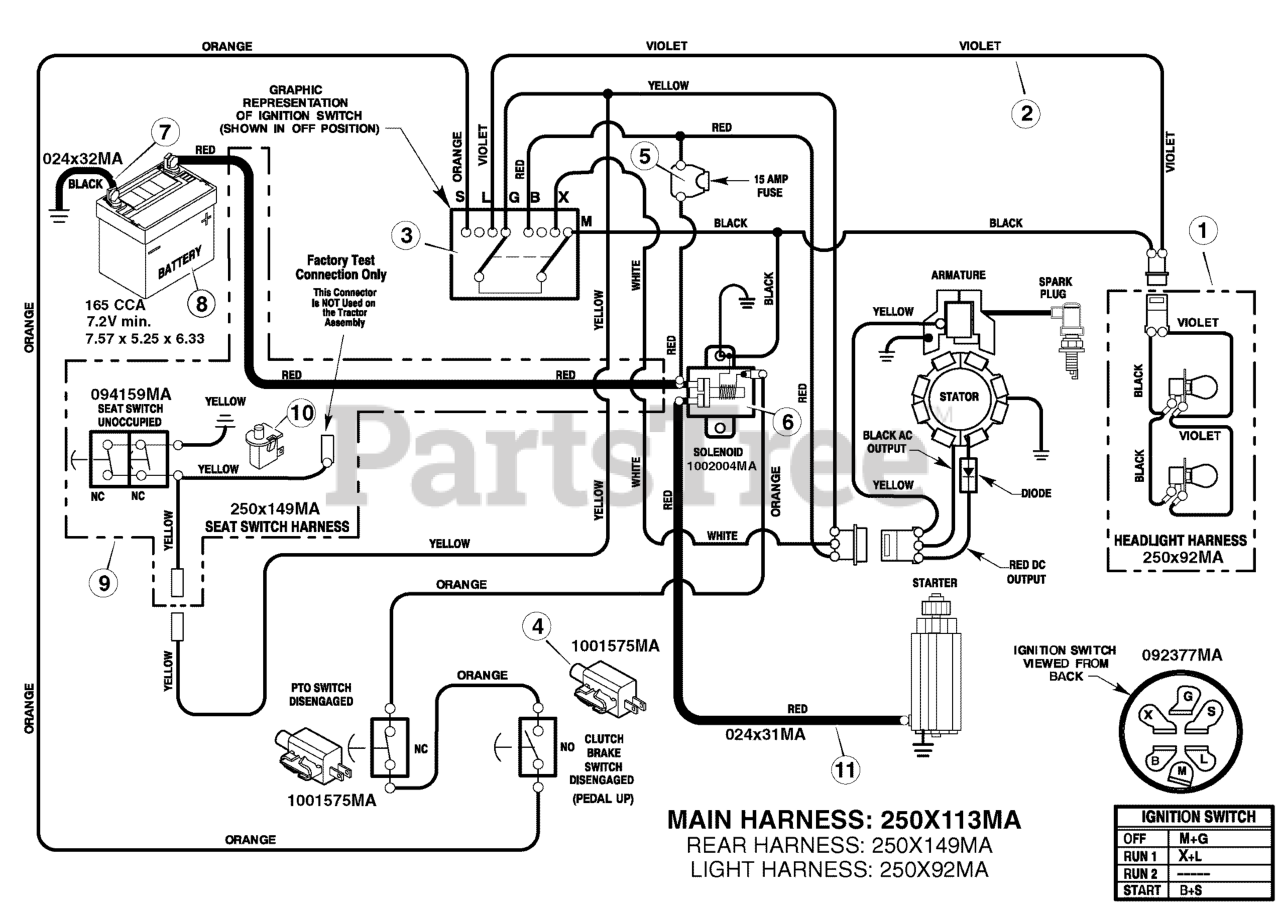

Electrical System Parts Diagram

  • Title

1

Murray 250X92MA

HARNESS, Light Wire

$16.99

$

Usually ships in 2-12 days

0

--

Murray 1001716MA

SOCKET, Light

$7.99

$

In Stock, Qty 7

0

--

Murray 090084MA

BULB, Light
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

2

Murray 250X113MA

HARNESS, Chassis Wire

$48.99

$

Usually ships in 2-12 days

0

3

Murray 092377MA

SWITCH, Ignition

$24.99

$

In Stock, only 1 left!

0

--

Murray 020729MA

KEY, Ignition

$5.49

$

In Stock, Qty 11

0

--

Murray 091489MA

NUT, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 091488MA

CAP, Ignition

$4.99

$

Usually ships in 2-12 days

0

4

Murray 1001575MA

SWITCH, Limit

$9.99

$

In Stock, only 1 left!

0

5

Murray 302031MA

FUSE

$6.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

HOLDER, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 1002004MA

SOLENOID
(Superseded to 7701100MA)

$27.99

$

In Stock, only 3 left!

0

--

Murray 26X229MA

SCREW, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32MA

CABLE, Battery Ground

$8.49

$

Usually ships in 2-12 days

0

--

Murray 26X229MA

SCREW, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

BATTERY

Note: 165 CCA 7.2V min. 7.57 x 5.25 x 6.33

$

$

Not available

--

Murray 002X82MA

BOLT, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

WINGNUT

$4.99

$

Usually ships in 2-12 days

0

--

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0

9

Murray 250X149MA

HARNESS, Seat Switch Wire

$23.99

$

Usually ships in 2-12 days

0

10

Murray 094159MA

SWITCH, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

11

Murray 024X31MA

CABLE

$7.49

$

In Stock, only 1 left!

0
