7800157 - Simplicity Javelin 44" Zero-Turn Mower, 20hp Briggs & Stratton Front Axle Group (7500139) Parts Diagram

Javelin 44" Zero-Turn Mower, 20hp Briggs & Stratton

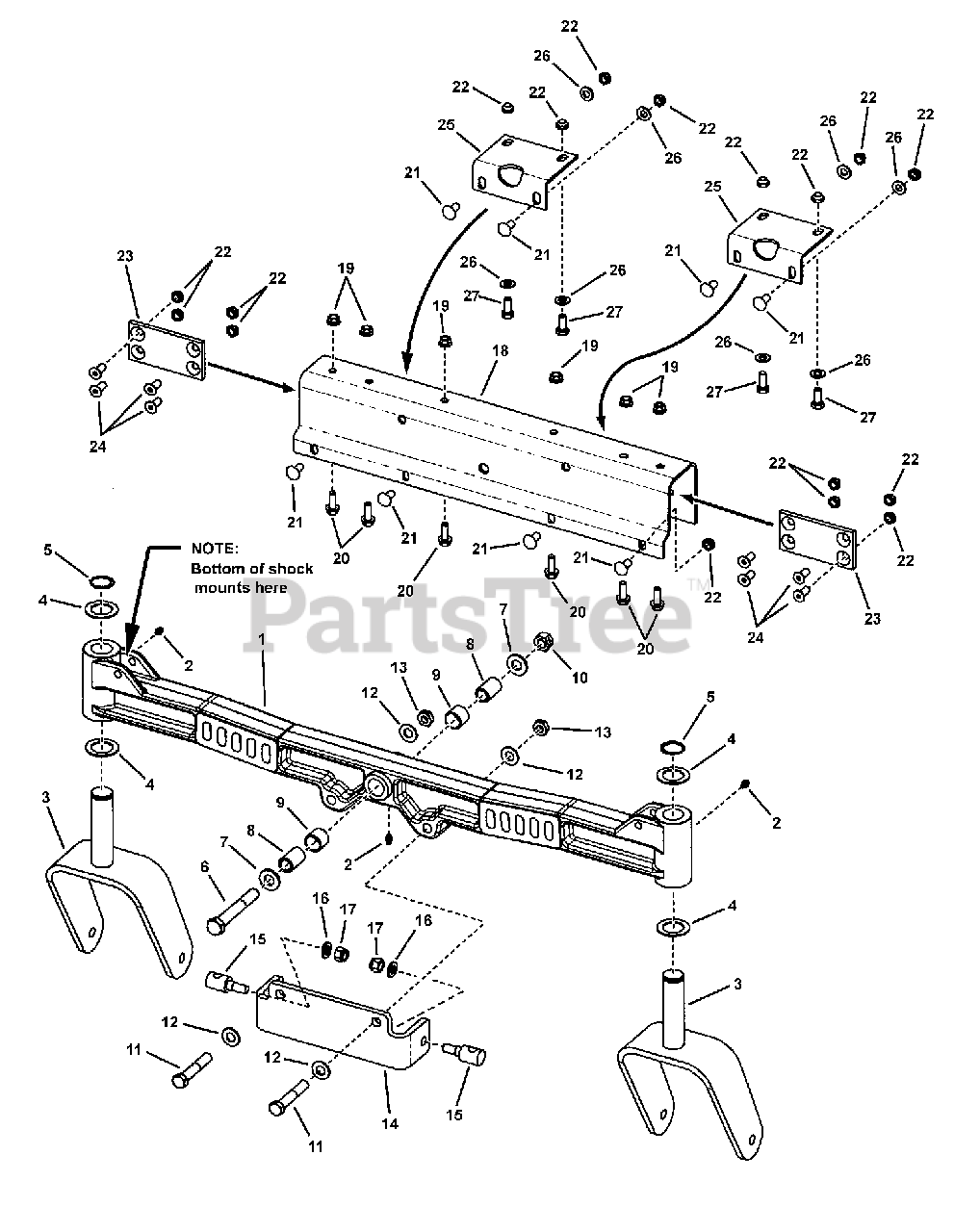

Front Axle Group (7500139) Parts Diagram

  • Title

1

Simplicity 7100322SM

AXLE, Cast, Front, Simplicity Orange

$319.99

$

Usually ships in 2-12 days

0

2

Simplicity 7013864SM

LUBE FITTING, 3/16 PR

$3.49

$

In Stock, Qty 12

0

3

Simplicity 7400076SM

WELD, Caster, Simplicity Orange

$108.99

$

Usually ships in 2-12 days

0

4

Simplicity 7013855SM

WASHER, Thrust

$7.49

$

In Stock, Qty 6

0

5

Simplicity 2827320SM

RETAINING RING, EXT, 1" OD

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 7091558SM

CAPSCREW, Hex Head, 1/2C X3-1/2 YZ

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 7091587SM

WASHER,.531X1.062X.121 ZP
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 7011309SM

SPACER, Axle Pivot

$7.49

$

Usually ships in 2-12 days

0

9

Simplicity 7012706SM

BEARING, Sleeve, .875 OD, Powdered Metal

$10.99

$

In Stock, only 4 left!

0

10

Simplicity 7091894SM

NUT, Hex Center Lock, 1/2C GR5 YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

11

Simplicity 7091703SM

CAPSCREW, Hex Head, 7/16F X2-1/2 GR5 YZ

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091595SM

WASHER, .47X.92X.065 YZ
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 7090377SM

NUT, Hex Center Lock Jam, 7/16F GR5 YZ
(Superseded to 703348)

$5.49

$

In Stock, Qty 20+

0

14

Simplicity 7300080SM

BRACKET, Quick Hitch

$25.99

$

Usually ships in 2-12 days

0

15

Simplicity 7200028

SWIVEL, 3/8, Yellow
(Superseded to 7200028SM)

$73.99

$

In Stock, only 2 left!

0

16

Simplicity 7032030SM

WASHER, .406X1.25X.132 ZP

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 7091299SM

NUT, Hex, 3/8C, Nylock YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 7300188SM

BRACKET, AXLE, Simplicity Orange

$45.99

$

Usually ships in 2-12 days

0

19

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Simplicity 7091905SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X7/8 YZ

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 7091508SM

CARRAIGE BOLT, 5/16C X3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

22

Simplicity 7091706SM

NUT, Hex, Lock, Taptite, 5/16C

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 7100417SM

PLATE, Friction

$20.99

$

Usually ships in 2-12 days

0

24

Simplicity 7077683SM

FHHR, 5/16C X 1

$2.99

$

Usually ships in 2-12 days

0

25

Simplicity 7300004SM

BRACKET, Axle Support
(Superseded to 7300004BMYP)

$21.99

$

In Stock, only 1 left!

0

26

Simplicity 7090188SM

WASHER, .34X.69X.08 YZ
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 7091318SM

CAPSCREW, Hex Head, 5/16C X3/4 GR5 YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
