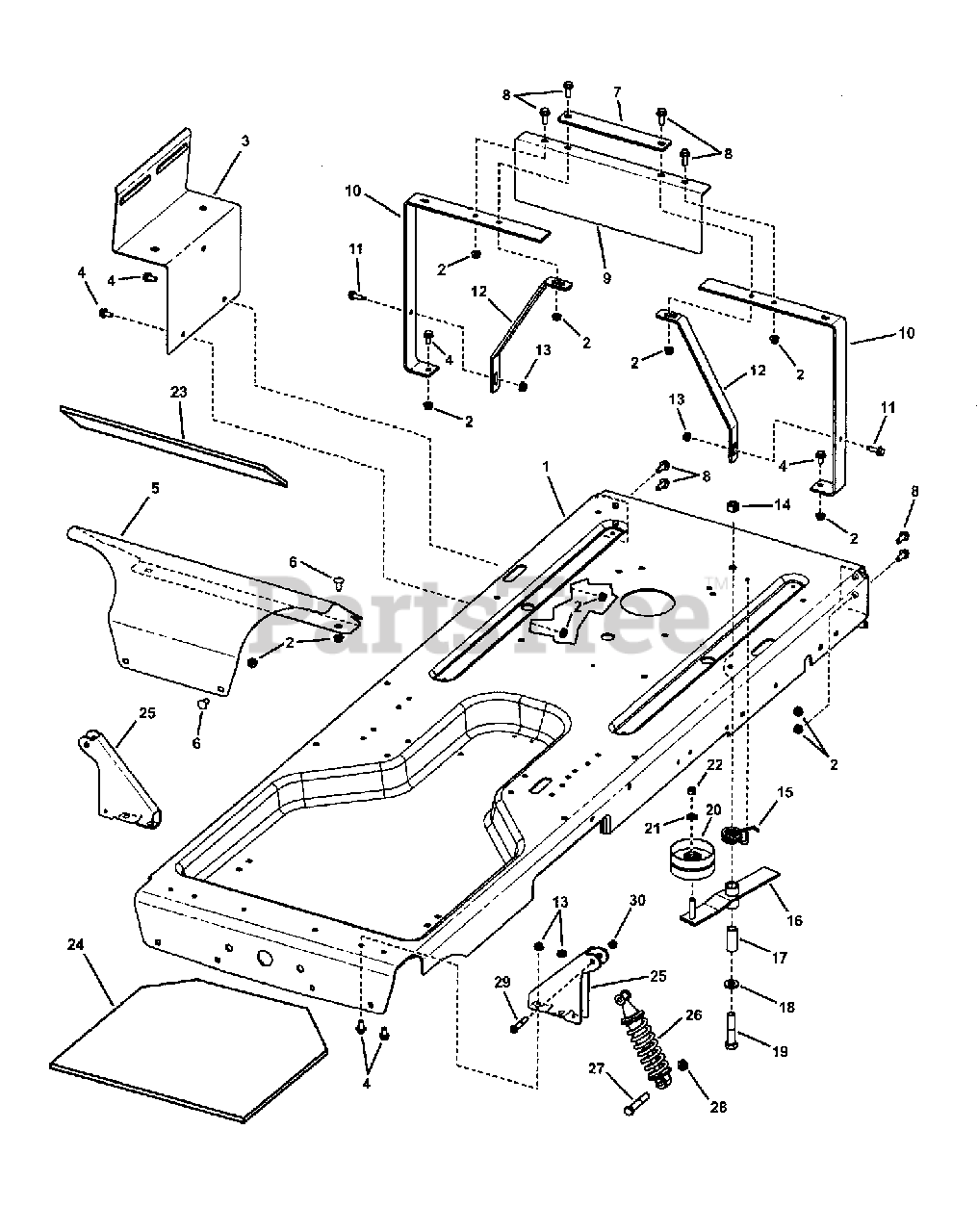

7800071 - Simplicity Javelin 44" Zero-Turn Mower, 18.5hp Briggs & Stratton Frame Group - Sub-Assembly (7500356) Parts Diagram

Javelin 44" Zero-Turn Mower, 18.5hp Briggs & Stratton

Frame Group - Sub-Assembly (7500356) Parts Diagram

  • Title

1

Simplicity 7300182

FRAME, RZT, Simplicity Orange

$

$

Not available

2

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 7300006SM

BRACKET, Tank

$46.99

$

Usually ships in 2-12 days

0

4

Simplicity 7091811SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X5/8 GR5 YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

5

Simplicity 7300185SM

FOOTREST, Simplicity, Orange

$61.99

$

Usually ships in 2-12 days

0

6

Simplicity 7091508SM

CARRAIGE BOLT, 5/16C X3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 7300226SM

PLATE, Rear Seat Guard

$15.99

$

Usually ships in 2-12 days

0

8

Simplicity 7091905SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X7/8 YZ

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 7043307SM

HEAT SHIELD

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 7043309SM

BRACKET, Body Support

$18.99

$

Usually ships in 2-12 days

0

11

Simplicity 7091841SM

CAPSCREW, Hex Head Flange Taptite, 5/16C X1

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 7300342SM

BRACE, Hood / Fender

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 BZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Simplicity 7091894SM

NUT, Hex Center Lock, 1/2C GR5 YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

15

Simplicity 7044760SM

SPRING, Torsion, RH Wind

$33.99

$

In Stock, only 2 left!

0

16

Simplicity 7400021SM

WELD, Hydro Idler

$201.99

$

Usually ships in 2-12 days

0

17

Simplicity 7200034

SPACER, Hydro Idler, Yellow
(Superseded to 7200034SM)

$

$

Not available

18

Simplicity 7091587SM

WASHER, YZ
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

19

Simplicity 7091218SM

CAPSCREW, Hex Head, 1/2C X2-1/2 GR5 BP
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 7100103SM

IDLER, 3.25OD X.391ID X1.63, Backside

$43.99

$

In Stock, Qty 8

0

21

Simplicity 1924940SM

WASHER, 3/8 SAE YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 7091585SM

NUT, Hex Center Lock, 3/8C GR5 YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

23

Simplicity 7100266SM

MAT, Foot Rest, RZT

$21.99

$

Usually ships in 2-12 days

0

24

Simplicity 7100287SM

MAT, Floor Pan

$36.99

$

Usually ships in 2-12 days

0

25

Simplicity 7300079SM

BRACKET, Shock
(Superseded to 7300079CYP)

$119.99

$

In Stock, only 1 left!

0

26

Simplicity 5023213SM

SHOCK ABSORBER

$52.99

$

In Stock, only 1 left!

0

27

Simplicity 7091703SM

CAPSCREW, Hex Head, 7/16F X2-1/2 GR5 YZ

$7.99

$

Usually ships in 2-12 days

0

28

Simplicity 7090377SM

NUT, Hex Center Lock Jam, 7/16F GR5 YZ
(Superseded to 703348)

$5.49

$

In Stock, Qty 20+

0

29

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16C X1-3/4 GR5 YZ
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025057SM

NUT, Hex, Lock, 5/16C ESNA YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
