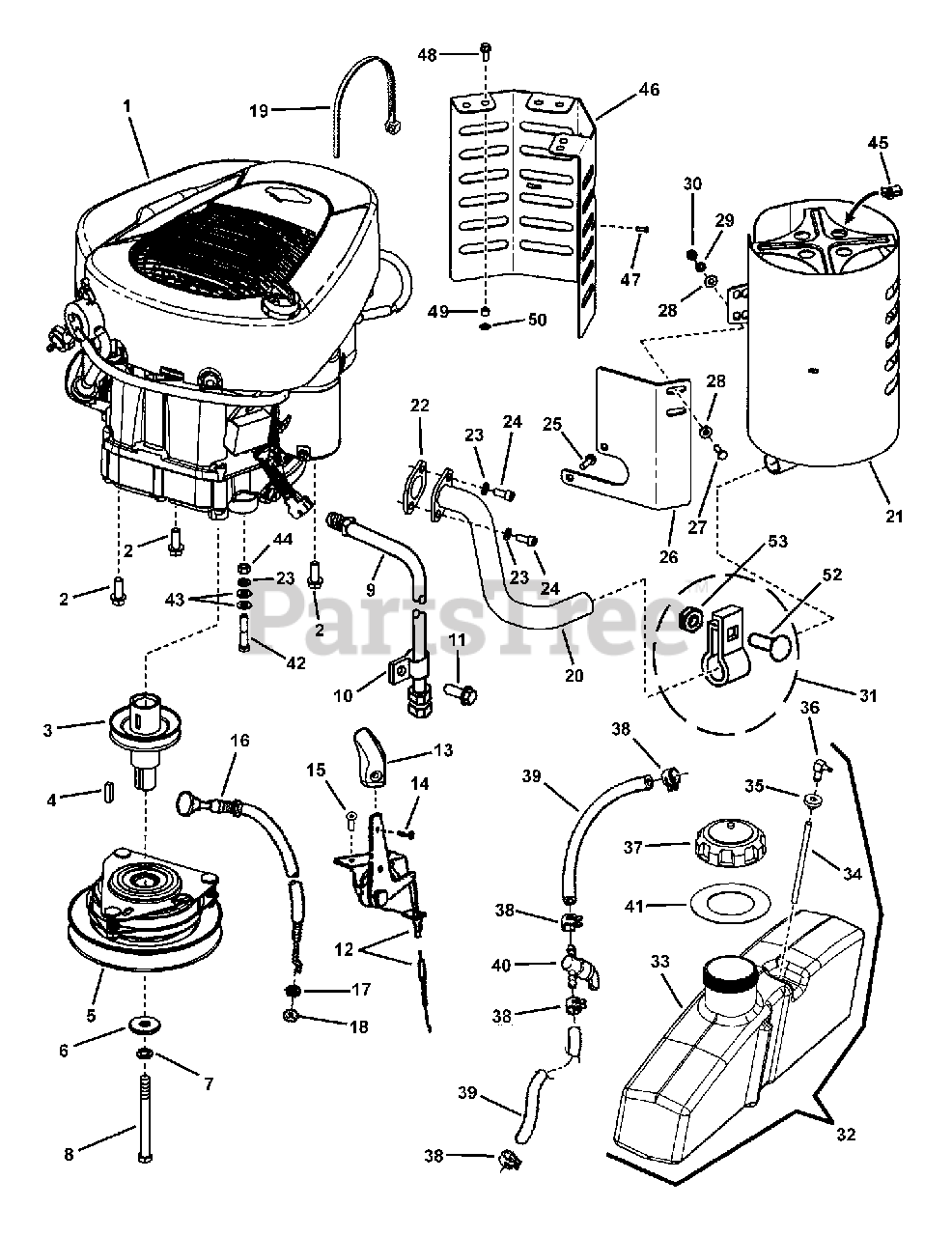

7800071 - Simplicity Javelin 44" Zero-Turn Mower, 18.5hp Briggs & Stratton Engine Group - 18.5 HP B&S Intek (7500176) Parts Diagram

Javelin 44" Zero-Turn Mower, 18.5hp Briggs & Stratton

Engine Group - 18.5 HP B&S Intek (7500176) Parts Diagram

  • Title

1

ENGINE, 18.5HP Briggs & Stratton INTEK, EURO (Model 31P777 Type 0122-B1)

$

$

Not available

2

Simplicity 7090324SM

CAPSCREW, Hex Head Flange Taptite, 3/8C X1 BZ
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 7043343SM

PULLEY, Engine

$114.99

$

In Stock, only 1 left!

0

4

Simplicity 7013250SM

KEY, Square, 1/4X1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 1686880SM

CLUTCH, # 504586, Electric, Ogura JD-11
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

6

Simplicity 7029138SM

WASHER, .468X1.50X.19 YZ
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

7

Simplicity 1918199SM

WASHER, Lock, .445X.776X.1 YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 7092130SM

CAPSCREW, Hex Head, 7/16F X4-1/2, GR5 YZ

$

$

Not available

9

Simplicity 1726498SM

HOSE, Oil Drain .375ID 16.5L

$26.99

$

Usually ships in 2-12 days

0

10

Simplicity 7900020SM

CLIP, HARNESS, 5/8

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 7091811SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X5/8 GR5 YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

12

Simplicity 7028564SM

THROTTLE CONTROL, 26.25

$30.99

$

Usually ships in 2-12 days

0

13

Simplicity 1725337SM

KNOB, Throttle, Red, RZT

$12.99

$

In Stock, only 1 left!

0

14

Simplicity 7091195SM

CAPSCREW, Pan Head Self-Tapping, Combo, #10-16 X3/4 BZ

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 7090999SM

CAPSCREW, Pan Head Self-Tapping, TORX, 1/4C X5/8 BP
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 7063252SM

CONTROL, Choke, 30

$41.99

$

Usually ships in 2-12 days

0

17

Simplicity 7090390SM

WASHER, Lock, Internal Tooth, 3/8 BZ
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 7091630SM

NUT, Hex, 3/8F GR.B BZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 7012080SM

CABLE TIE, 7.0
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 7100101SM

MANIFOLD, 18 HP B&S Intek

$48.99

$

In Stock, only 1 left!

0

21

Simplicity 7100160SM

MUFFLER, LC YZ
(Superseded to 7600051SM)

$295.99

$

Usually ships in 2-12 days

0

22

Simplicity 7015352SM

GASKET, Exhaust

$5.49

$

In Stock, Qty 8

0

23

Simplicity 7091315SM

WASHER, Lock, .32X.58X.08 YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 7091738SM

CAPSCREW, Square Head, 5/16C X3/4 GR8 BZ

$4.99

$

In Stock, Qty 14

0

25

Simplicity 7090290SM

CAPSCREW, Hex Head Flange Taptite, 1/4C X3/4 ZP
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

26

Simplicity 7300237SM

BRACKET, Muffler, 18HP B&S

$42.99

$

Usually ships in 2-12 days

0

27

Simplicity 7091495SM

CAPSCREW, Hex Head, 1/4C X3/4 GR5 YZ
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

28

Simplicity 7091294SM

WASHER, .28X.63X.065 YZ
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 7090052SM

WASHER, Lock, .256X.487X.062 ZP

$3.49

$

In Stock, only 4 left!

0

30

Simplicity 7091576SM

NUT, Hex, 1/4C GR5 YZ
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 7078234SM

CLAMP ASSEMBLY, B&S# 223434,93877,93203
(Superseded to 691956)

$15.99

$

In Stock, only 3 left!

0

32

Simplicity 7500077SM

FUEL TANK ASSEMBLY, RZT

Note: Includes Ref. Nos. 33 thru 37

$198.99

$

Usually ships in 2-12 days

0

33

Simplicity 7100037SM

FUEL TANK
(Superseded to 7500077SM)

$198.99

$

Usually ships in 2-12 days

0

34

Simplicity 7100283SM

DIP TUBE

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 7012337SM

GROMMET

$

$

Not available

36

Simplicity 7075288SM

ELBOW, 90 Degree

$22.99

$

Usually ships in 2-12 days

0

37

Simplicity 1715917SM

CAP, Fuel, 3-1/2"
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

38

Simplicity 7029900SM

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 7073240SM

HOSE, Fuel 5
(Superseded to 791866)

$24.99

$

Usually ships in 2-12 days

0

40

Simplicity 7016325SM

VALVE, Fuel

$19.99

$

In Stock, Qty 11

0

41

Simplicity 7100312SM

SEAL, Tank

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16C X1-3/4 GR5 YZ
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 7090188SM

WASHER, .34X.69X.08 YZ
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 7091511SM

NUT, Hex, 5/16C GR5 YZ

$3.49

$

In Stock, Qty 20+

0

45

Simplicity 1926018SM

NUT, Speed 1/4-20 U TYPE/070/.140 Black

$4.49

$

In Stock, Qty 12

0

46

Simplicity 7300192SM

HEAT SHIELD, Muffler, ERZT, MY06

$77.99

$

Usually ships in 2-12 days

0

47

Simplicity 7092117SM

SCREW, Pan Head Phillips 8-32 X 1/2

$3.49

$

Usually ships in 2-12 days

0

48

Simplicity 7091787SM

HFLCS 1/4-20 X 5/8

$3.49

$

Usually ships in 2-12 days

0

49

Simplicity 3031014SM

BUSHING, Steel Sleeve .250 ID X .375 OD X .250

$11.99

$

Usually ships in 2-12 days

0

50

Simplicity 1960518SM

NUT, Push For .250 DIA THREAD .500 OD Black
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

51

Simplicity 7100666SM

CLAMP, Muffler B&S #222825

Note: not shown

$18.99

$

In Stock, only 3 left!

0

52

Simplicity 7091928SM

BOLT, 5/16-18 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

53

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
