7790 H (1691012) - Simplicity 42" Garden Tractor, Diesel Electrical Group Parts Diagram

42" Garden Tractor, Diesel

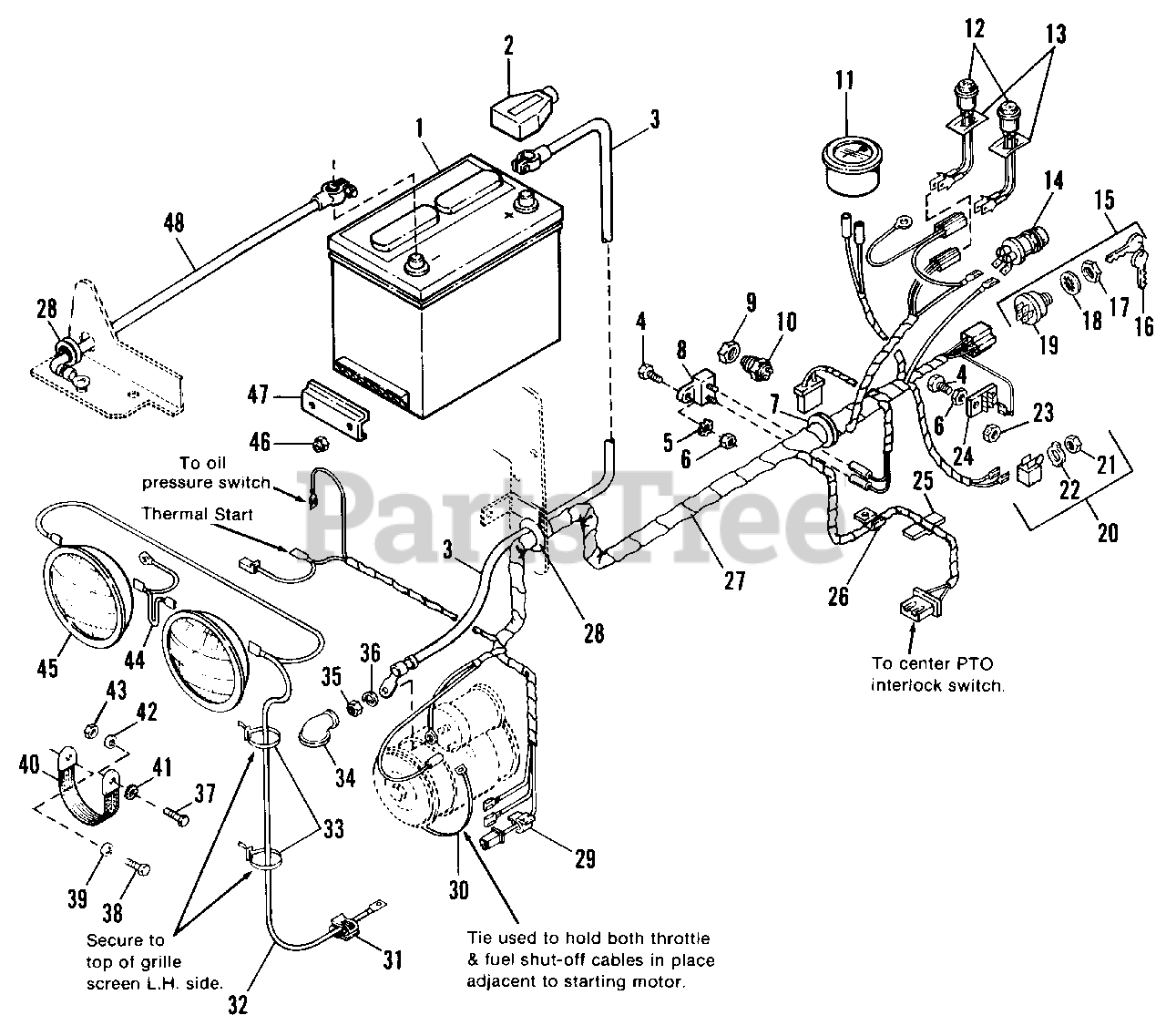

Electrical Group Parts Diagram

  • Title

1

Simplicity 1685250

BATTERY (Includes decal)

$

$

Not available

2

Simplicity 1713534SM

CABLE BOOT, Insulating

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 1673544

CABLE (Battery to Solenoid)

$

$

Not available

4

Simplicity 921880

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

5

Simplicity 921880

LOCKWASHER, Ext., 1/4

$

$

Not available

6

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2172175

GROMMET

$

$

Not available

8

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

9

Simplicity 1930647

NUT, Pal
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

11

Simplicity 1603189SM

AMMETER

$

$

Not available

12

Simplicity 1673595

LIGHT, Indicator

$

$

Not available

13

Simplicity 1673013

NUT, Speed, Push on

$

$

Not available

14

Simplicity 1674195

SWITCH, Push Button

$

$

Not available

15

Simplicity 1607280SM

SWITCH & KEY ASSY., Ignition

Note: Part #1607280 Includes Ref. No. 16, 17, 18 & 19

$75.99

$

In Stock, Qty 6

0

16

Simplicity 1717163SM

KEY SET (2)

$8.99

$

In Stock, Qty 20+

0

17

Simplicity 122235

NUT, Special

$

$

Not available

18

Simplicity 2818906

LOCKWASHER, Int., 5/8

$

$

Not available

19

SWITCH, Ignition (See Ref. No. 15)

$

$

Not available

20

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

21

Simplicity 1650880

NUT, Switch

$

$

Not available

22

Simplicity 1650878

PLATE

$

$

Not available

23

Simplicity 2823358

LOCKNUT, Hex 1/4-20

$

$

Not available

24

Simplicity 1665230SM

BOARD, Terminal

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 176912

CLIP, Wire

$

$

Not available

26

Simplicity 2832771

CLIP, Cable

$

$

Not available

27

Simplicity 1673539

HARNESS ASSY.

$

$

Not available

28

Simplicity 1673793

GROMMET

$

$

Not available

29

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 2825442

TlE

$

$

Not available

31

Simplicity 2176675

CLIP, Speed Cable

$

$

Not available

32

Simplicity 1666665SM

WIRE ASSY.

$5.49

$

Usually ships in 2-12 days

0

33

Simplicity 2832747SM

TlE

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1673699

COVER, Terminal

$

$

Not available

35

Simplicity 950220

NUT, Hex, M8

$

$

Not available

36

Simplicity 950219

LOCKWASHER, M8

$

$

Not available

37

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

38

Simplicity 2850036

CAPSCREW, M10 x 1.5 x 25

$

$

Not available

39

Simplicity 950220

LOCKWASHER, M10

$

$

Not available

40

Simplicity 1673603

STRAP, Ground (Engine to Ground)

$

$

Not available

41

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

42

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

43

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

44

Simplicity 2825442

TlE

$

$

Not available

45

Simplicity 1665853SM

LAMP, Sealed Beam, G.E. #4411-1

$

$

Not available

46

Simplicity 2824433

NUT, Elastic 5/16-18

$

$

Not available

47

Simplicity 2171225SM

CLAMP

$10.99

$

In Stock, only 1 left!

0

48

Simplicity 1673542

CABLE (Battery to Ground)

$

$

Not available
