779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Reference Gear / Shaft Clutch (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

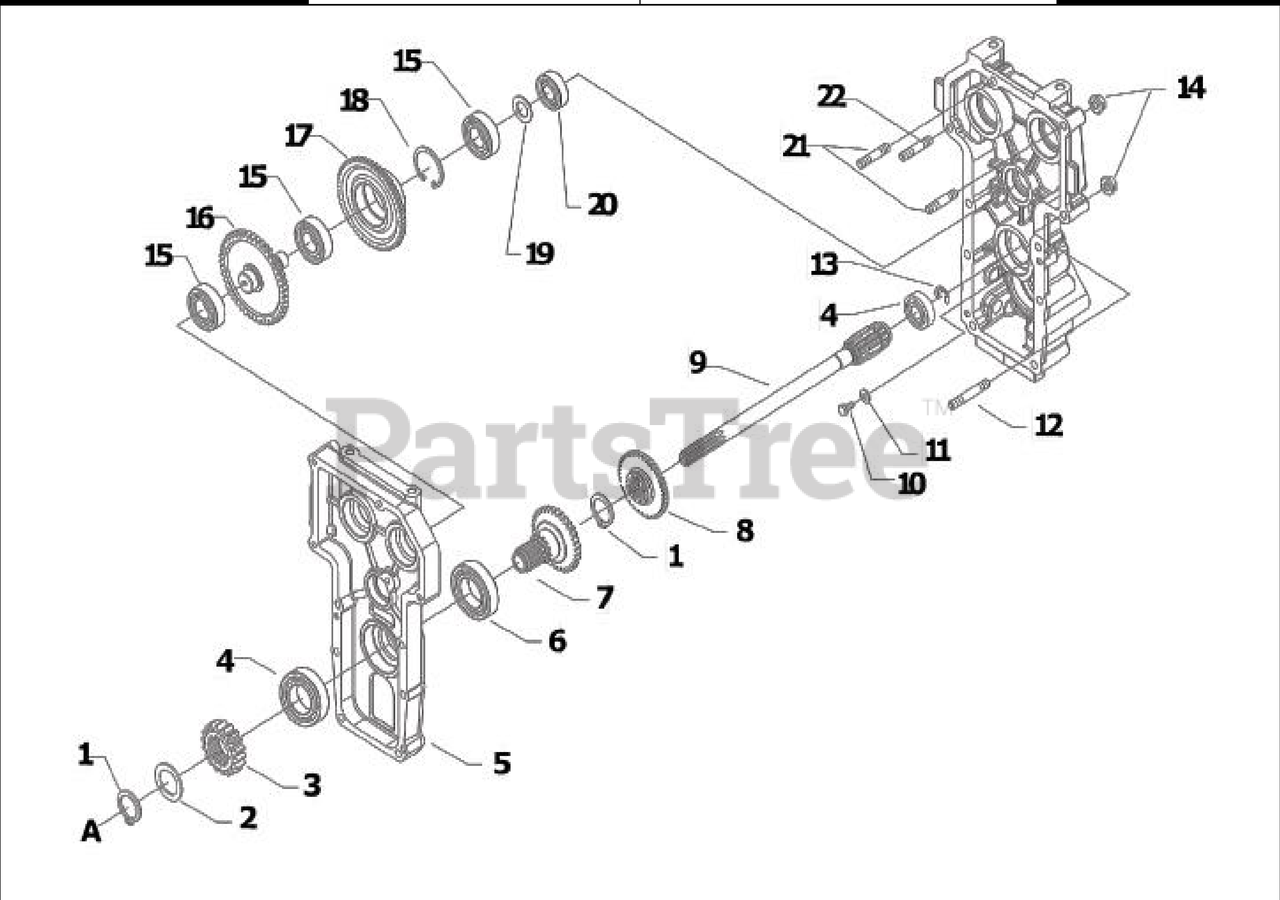

Reference Gear / Shaft Clutch (SN: 1077280 & Above) Parts Diagram

  • Title

1

351.21022

SNAP RING E 20 UNI 7436

$

$

Not available

2

563.C0200

WASHER

$

$

Not available

3

524.C0162

IDLER GEAR

$

$

Not available

4

BCS America 371.11253

BEARING 6005 (25X47X12)

$15.99

$

Usually ships in 5-8 days

0

5

532.C0439

HYDRO FLANGE

$

$

Not available

6

BCS America 371.12229

BEARING 6006 (30X55X13) SKF

$19.99

$

Usually ships in 5-8 days

0

7

524.C0575

DEFLECTION SHAFT

$

$

Not available

8

524.C0160

OUTPUT GEAR

$

$

Not available

9

524.C1674

PRIMARY CLUTCH SHAFT

$

$

Not available

10

BCS America 311.12210

SCREW TE M10X20 UNI 5739

$1.49

$

In Stock, only 1 left!

0

11

BCS America 314.21101

WASHER

$1.99

$

In Stock, only 3 left!

0

12

BCS America 313.12086

STUD BOLT M8X56X20X14

$3.99

$

Usually ships in 5-8 days

0

13

352.11150

SNAP RING E 15 UNI 7434

$

$

Not available

14

BCS America 312.41084

SELFLOCK NUT M8 6S

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 371.11200

BEARING 6004 (20X42X12)

$16.99

$

In Stock, only 2 left!

0

16

524.C0445

IDLE PUMP GEAR

$

$

Not available

17

524.C0158

IDLE ENGINE GEAR

$

$

Not available

18

F0801310000

RING

$

$

Not available

19

563.C0218

WASHER

$

$

Not available

20

BCS America 371.11151

BEARING 6202 (15X35X11)

$10.99

$

In Stock, only 1 left!

0

21

BCS America 313.12086

STUD BOLT M8X56X20X14

$3.99

$

Usually ships in 5-8 days

0

22

313.12079

STUD M8X40X14X20 8G

$

$

Not available
