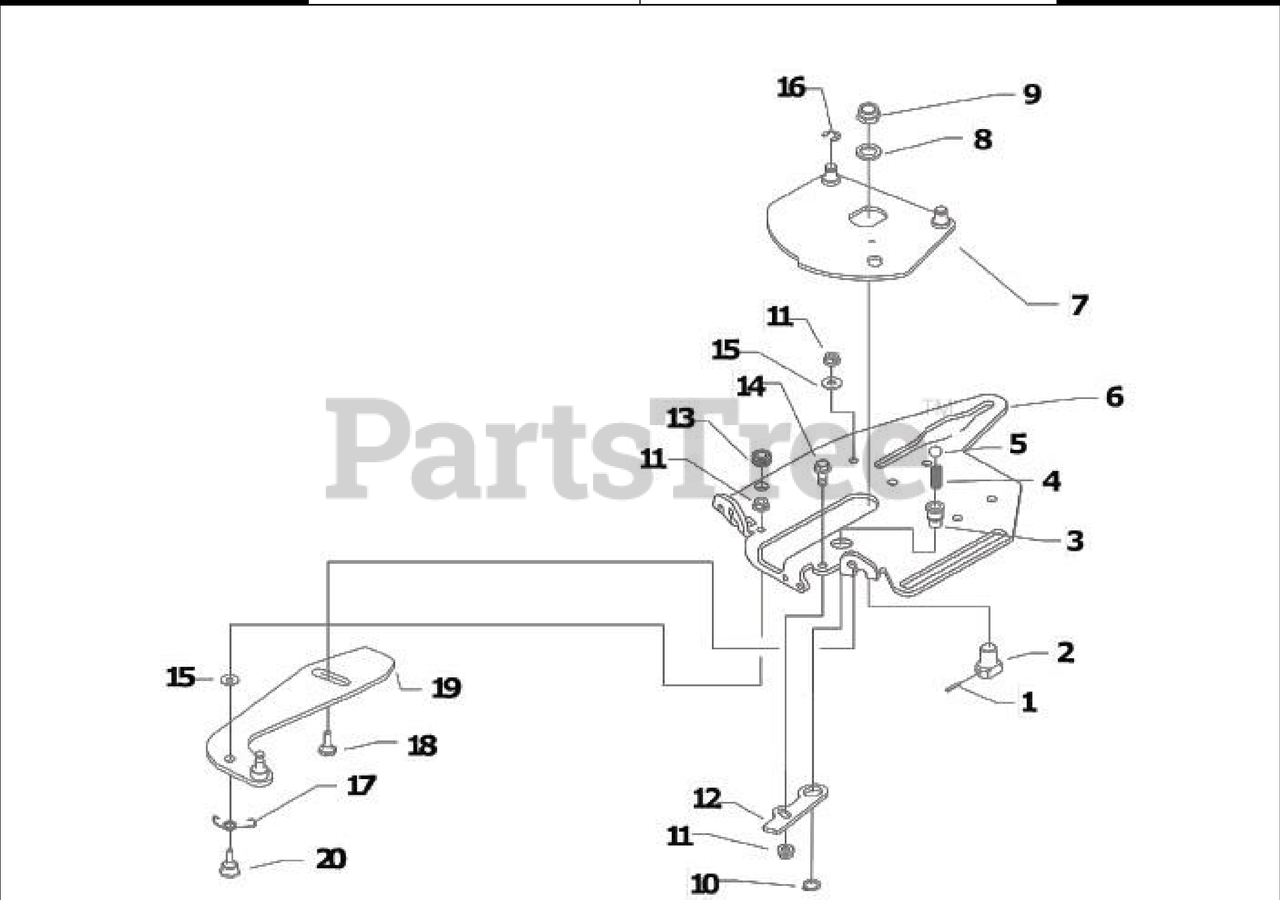

779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Pump Control (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Pump Control (SN: 1077280 & Above) Parts Diagram

  • Title

1

342.13055

ROLL PIN

$

$

Not available

2

563.C0177

SLEEVE

$

$

Not available

3

563.C0208

SLEEVE

$

$

Not available

4

580.56683

SPRING

$

$

Not available

5

BCS America 379.11532

BALL 15/32

$1.49

$

In Stock, only 4 left!

0

6

561.C1669

DRIVE PLATE

$

$

Not available

7

590.C1685

BUTTERFLY PLATE

$

$

Not available

8

314.14190

WASHER 19

$

$

Not available

9

BCS America 312.41182

SELFLOCK NUT M18X1.5

$4.99

$

Usually ships in 5-8 days

0

10

351.21018

SNAP RING E 18 DIN 471

$

$

Not available

11

BCS America 312.41084

SELFLOCK NUT M8 6S

$1.49

$

Usually ships in 5-8 days

0

12

561.C0135

LEVER

$

$

Not available

13

581.C1715

CABLE CLAMP 11-55-21-5

$

$

Not available

14

BCS America 311.12170

SCREW TE C/F M8X20 DIN 6921

$1.99

$

Usually ships in 5-8 days

0

15

314.13084

WASHER 8.4

$

$

Not available

16

352.11050

SNAP RING E 5 UNI 7434

$

$

Not available

17

580.C1679

SPRING

$

$

Not available

18

563.C0426

LOCKING BOLT

$

$

Not available

19

590.C1681

PTO PLATE

$

$

Not available

20

563.C0134

LOCKING BOLT

$

$

Not available
