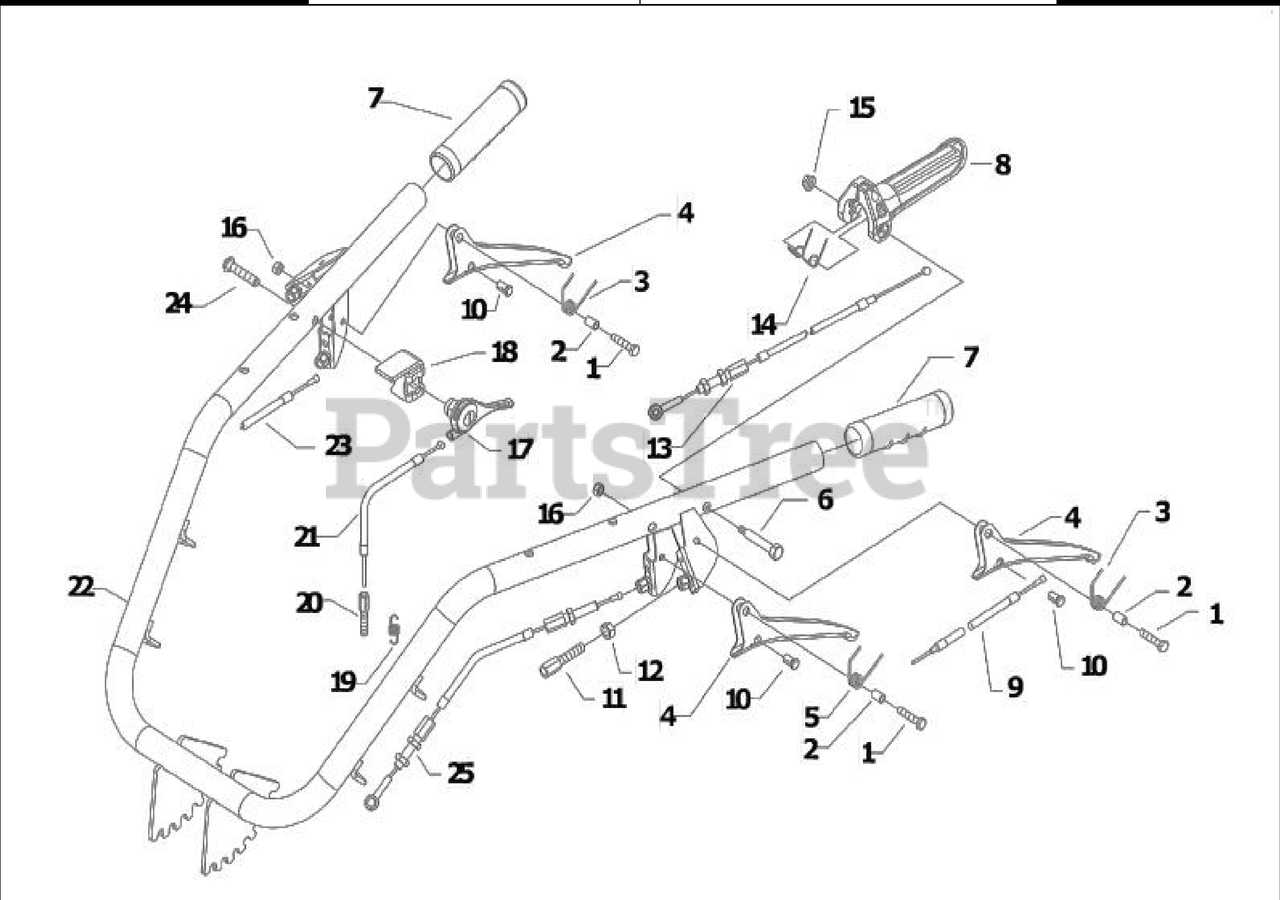

779 (779 PS) - BCS America Two-Wheeled Tractor, Power Safe Handlebar (SN: 1077280 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Handlebar (SN: 1077280 & Above) Parts Diagram

  • Title

1

BCS America 311.12089

SCREW TE M6X25 UNI 5739 8G

$1.49

$

In Stock, only 3 left!

0

2

561.56603

SPACER

$

$

Not available

3

BCS America 580.56593

SPRING

$5.49

$

In Stock, only 1 left!

0

4

BCS America 561.48470

LEVER

$32.99

$

In Stock, only 1 left!

0

5

BCS America 580.50345

SPRING

$3.49

$

In Stock, only 1 left!

0

6

563.56184

LEVER PIN

$

$

Not available

7

BCS America 580.48000

KNOB D=27

$7.49

$

Usually ships in 5-8 days

0

8

552.56185

LEVER OPC (Operators Presence Control)

$

$

Not available

9

580.56897

BRAKE CABLE

$

$

Not available

10

BCS America 581.50313

CABLE CLAMP

$11.99

$

In Stock, only 4 left!

0

11

BCS America 580.56595

ADJUSTING SCREW M8

$9.49

$

In Stock, only 2 left!

0

12

BCS America 312.11080

NUT M8

$0.99

$

In Stock, only 3 left!

0

13

580.C1756

OPC CABLE

$

$

Not available

14

580.56186

SPRING

$

$

Not available

15

312.41065

SELFLOCK NUT M6

$

$

Not available

16

BCS America 312.41060

HEXAGON SELFLOCK NUT M6

$0.99

$

In Stock, only 2 left!

0

17

BCS America 580.02538

THROTTLE CONTROL LEVER

$34.99

$

In Stock, Qty 5

0

18

561.56874

PANEL

$

$

Not available

19

BCS America 580.56155

RESTORING SPRING

$9.99

$

Usually ships in 5-8 days

0

20

BCS America 581.47704

ADJUSTING SCREW

$9.49

$

Usually ships in 5-8 days

0

21

580.56816

THROTTLE CABLE

$

$

Not available

22

592.57161

HANDLEBAR

$

$

Not available

23

580.57369

STEERING RELEASE CABLE

$

$

Not available

24

BCS America 311.21020

SCREW TBCEI M8X40 ISO7380 10K Z

$1.99

$

In Stock, only 4 left!

0

25

580.C1755

CLUTCH CABLE

$

$

Not available
